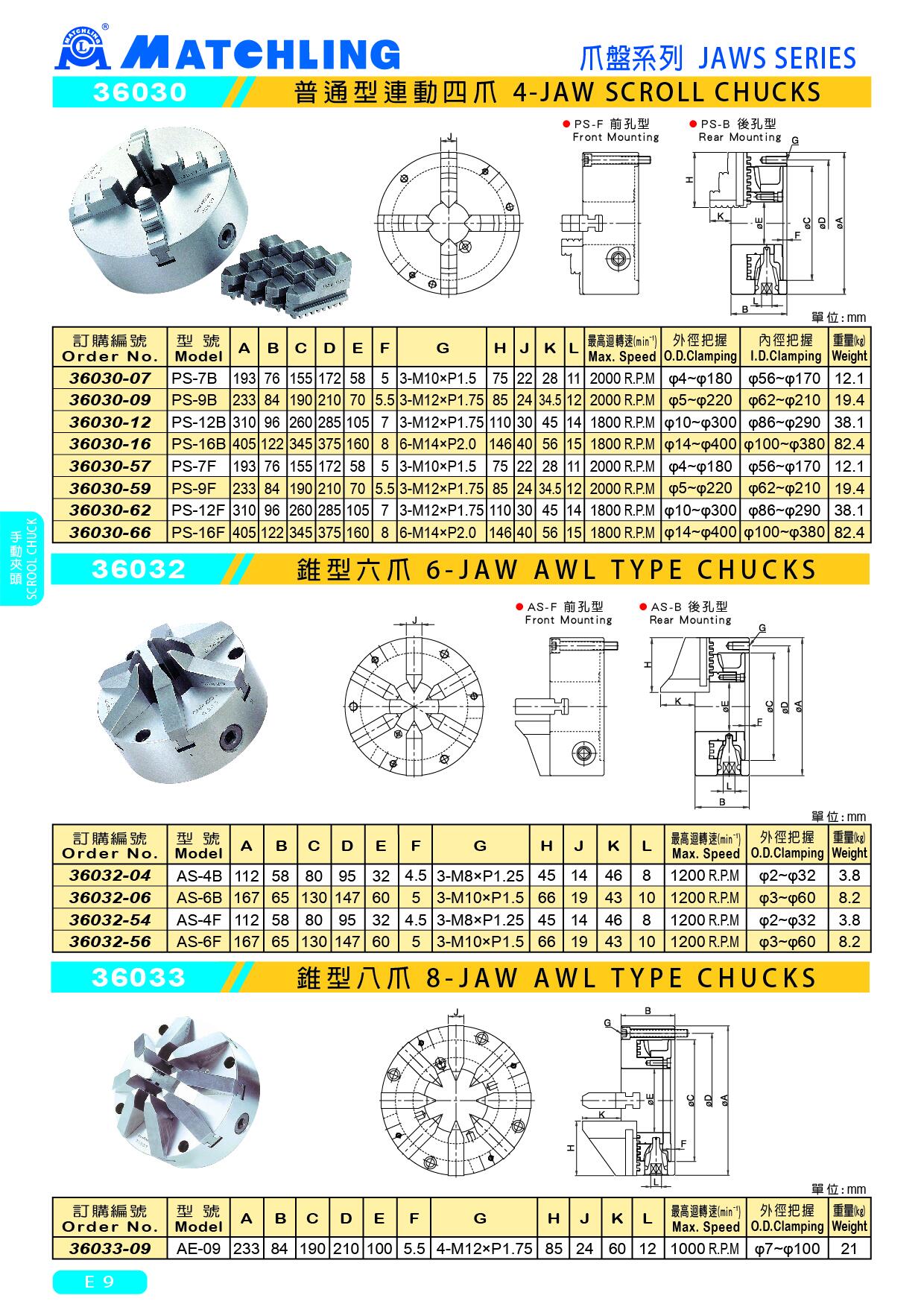

36032 6-JAW AWL TYPE CHUCKS
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | K | L | Max. Speed (min-1) | O.D.CIamping | Weight (kg) |
| 36032-04 | AS-4B | 112 | 58 | 80 | 95 | 32 | 4.5 | 3-M8xP1.25 | 45 | 14 | 46 | 8 | 1200 R.P.M | φ2~φ32 | 3.8 |
| 36032-06 | AS-6B | 167 | 65 | 130 | 147 | 60 | 5 | 3-M10xP1.5 | 66 | 19 | 43 | 10 | 1200 R.P.M | φ3~φ60 | 8.2 |
| 36032-54 | AS-4F | 112 | 58 | 80 | 95 | 32 | 4.5 | 3-M8xP1.25 | 45 | 14 | 46 | 8 | 1200 R.P.M | φ2~φ32 | 3.8 |
| 36032-56 | AS-6F | 167 | 65 | 130 | 147 | 60 | 5 | 3-M10xP1.5 | 66 | 19 | 43 | 10 | 1200 R.P.M | φ3~φ60 | 8.2 |
