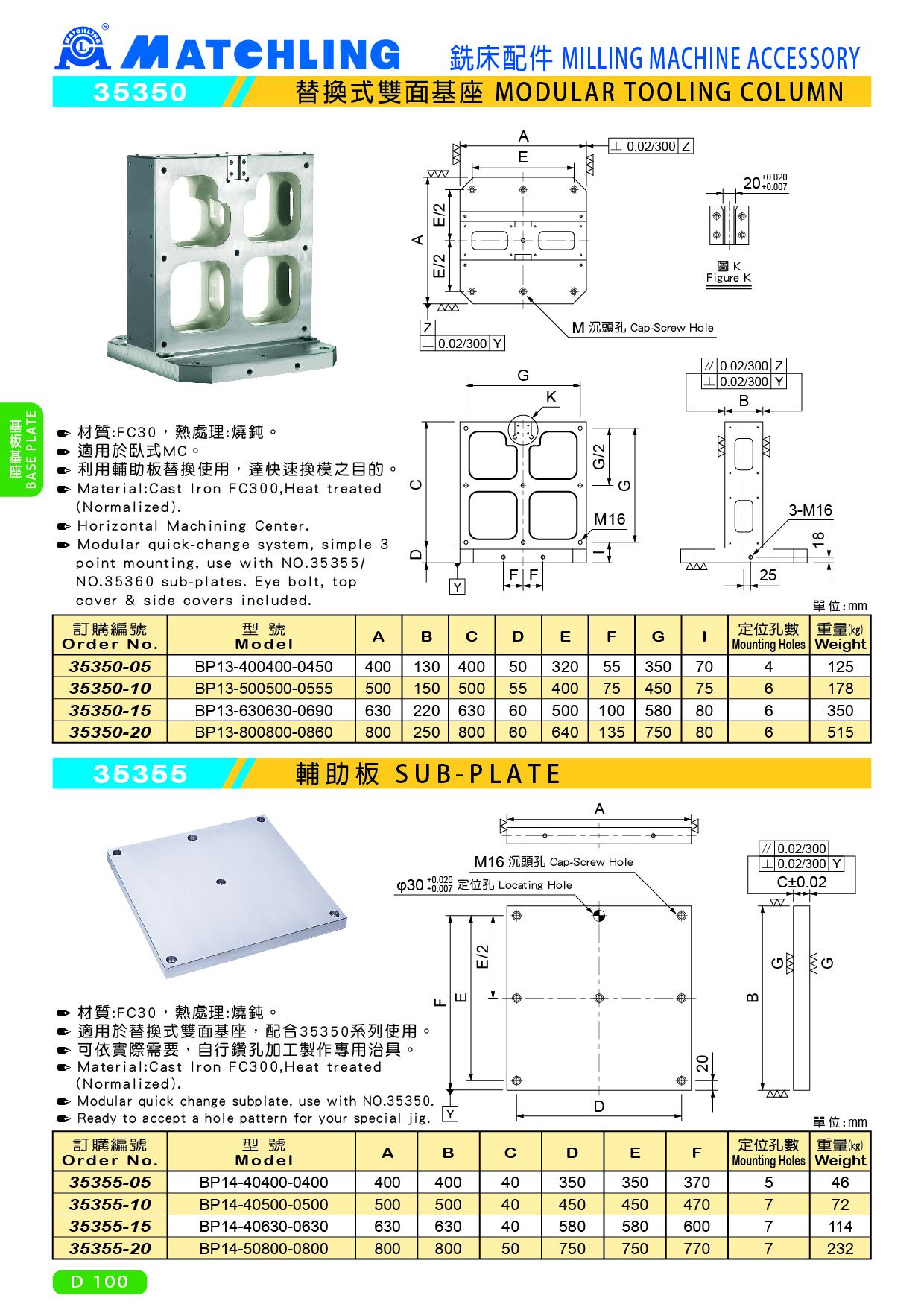

35355 SUB-PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Modular quick change subplate, use with NO.35350.
● Ready to accept a hole pattern for your special jig.
unit：mm
| Order No. | Model | A | B | C | D | E | F | Mounting Holes | Weight (kg) |
| 35355-05 | BP14-40400-0400 | 400 | 400 | 40 | 350 | 350 | 370 | 5 | 46 |
| 35355-10 | BP14-40500-0500 | 500 | 500 | 40 | 450 | 450 | 470 | 7 | 72 |
| 35355-15 | BP14-40630-0630 | 630 | 630 | 40 | 580 | 580 | 600 | 7 | 114 |
| 35355-20 | BP14-50800-0800 | 800 | 800 | 50 | 750 | 750 | 770 | 7 | 232 |
