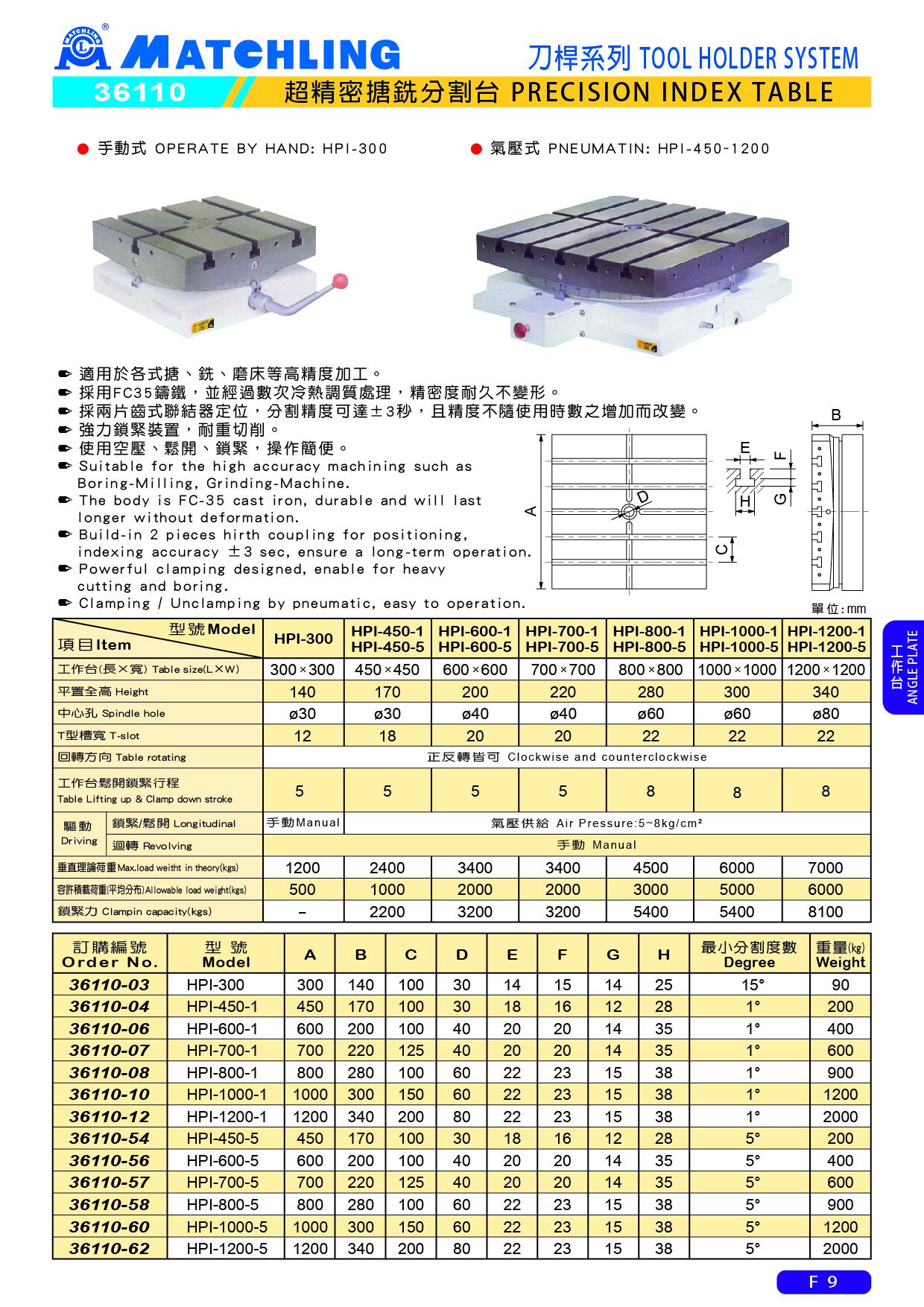

36110 PRECISION INDEX TABLE
● Suitable for the high accuracy machining such as Boring-Milling, Grinding-Machine.
● The body is FC-35 cast iron, durable and will last longer without deformation.
● Build-in 2 pieces hirth coupling for positioning, indexing accuracy ±3 sec, ensure a long-term operation.
● Powerful clamping designed, enable for heavy cutting and boring.
● Clamping / Unclamping by pneumatic, easy to operation.
unit：mm
Model Item | HPI-300 | HPI-450-1 | HPI-600-1 | HPI-700-1 | HPI-800-1 | HPM 000-1 | HPM 200-1 | |
| HPI-450-5 | HPI-600-5 | HPI-700-5 | HPI-800-5 | HPI-1000-5 | HPI-1200-5 | |||
| Table size(LXW) | 300x300 | 450x450 | 600x600 | 700x700 | 800x800 | 1000x1000 | 1200x1200 | |
| Height | 140 | 170 | 200 | 220 | 280 | 300 | 340 | |
| Spindle hole | Ø30 | Ø30 | Ø40 | Ø40 | Ø60 | Ø60 | Ø80 | |
| T-slot | 12 | 18 | 20 | 20 | 22 | 22 | 22 | |
| Table rotating | Clockwise and counterclockwise | |||||||
| Table Lifting up & Clamp down stroke | 5 | 5 | 5 | 5 | 8 | 8 | 8 | |
| drive | Longitudinal | Manual | Air Pressure:5~8kg/cm² | |||||
| Driving | Revolving | Manual | ||||||
| MaxJoad weitht in theory(kgs) | 1200 | 2400 | 3400 | 3400 | 4500 | 6000 | 7000 | |
| Allowable load wight(kgs) | 500 | 1000 | 2000 | 2000 | 3000 | 5000 | 6000 | |
| Clampin capacity(kgs) | - | 2200 | 3200 | 3200 | 5400 | 5400 | 8100 | |
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | Degree | Weight (kg) | ||||
| 36110-03 | HPI-300 | 300 | 140 | 100 | 30 | 14 | 15 | 14 | 25 | 15° | 90 | ||||
| 36110-04 | HPI-450-1 | 450 | 170 | 100 | 30 | 18 | 16 | 12 | 28 | 1° | 200 | ||||
| 36110-06 | HPI-600-1 | 600 | 200 | 100 | 40 | 20 | 20 | 14 | 35 | 1° | 400 | ||||
| 36110-07 | HPI-700-1 | 700 | 220 | 125 | 40 | 20 | 20 | 14 | 35 | 1° | 600 | ||||
| 36110-08 | HPI-800-1 | 800 | 280 | 100 | 60 | 22 | 23 | 15 | 38 | 1° | 900 | ||||
| 36110-10 | HPI-1000-1 | 1000 | 300 | 150 | 60 | 22 | 23 | 15 | 38 | 1° | 1200 | ||||
| 36110-12 | HPI-1200-1 | 1200 | 340 | 200 | 80 | 22 | 23 | 15 | 38 | 1° | 2000 | ||||
| 36110-54 | HPI-450-5 | 450 | 170 | 100 | 30 | 18 | 16 | 12 | 28 | 5° | 200 | ||||
| 36110-56 | HPI-600-5 | 600 | 200 | 100 | 40 | 20 | 20 | 14 | 35 | 5° | 400 | ||||
| 36110-57 | HPI-700-5 | 700 | 220 | 125 | 40 | 20 | 20 | 14 | 35 | 5° | 600 | ||||
| 36110-58 | HPI-800-5 | 800 | 280 | 100 | 60 | 22 | 23 | 15 | 38 | 5° | 900 | ||||
| 36110-60 | HPI-1000-5 | 1000 | 300 | 150 | 60 | 22 | 23 | 15 | 38 | 5° | 1200 | ||||
| 36110-62 | HPI-1200-5 | 1200 | 340 | 200 | 80 | 22 | 23 | 15 | 38 | 5° | 2000 | ||||
