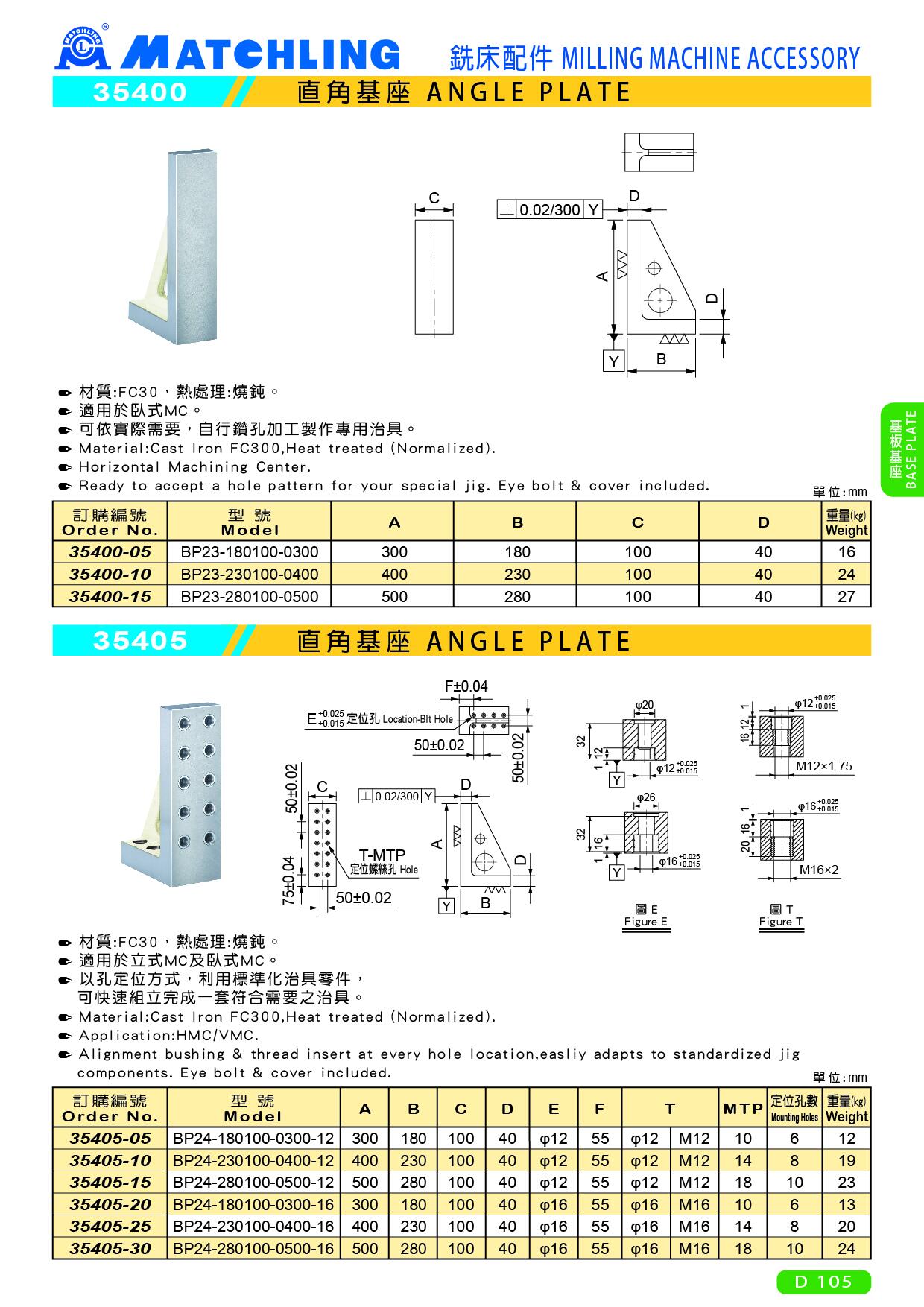

35405 ANGLE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Application:HMC/VMC.
● Alignment bushing & thread insert at every hole location, easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | E | F | T | MTP | Mounting Holes | Weight (kg) | |
| 35405-05 | BP24-180100-0300-12 | 300 | 180 | 100 | 40 | φ12 | 55 | φ12 | M12 | 10 | 6 | 12 |
| 35405-10 | BP24-230100-0400-12 | 400 | 230 | 100 | 40 | φ12 | 55 | φ12 | M12 | 14 | 8 | 19 |
| 35405-15 | BP24-280100-0500-12 | 500 | 280 | 100 | 40 | φ12 | 55 | φ12 | M12 | 18 | 10 | 23 |
| 35405-20 | BP24-180100-0300-16 | 300 | 180 | 100 | 40 | φ16 | 55 | φ16 | M16 | 10 | 6 | 13 |
| 35405-25 | BP24-230100-0400-16 | 400 | 230 | 100 | 40 | φ16 | 55 | φ16 | M16 | 14 | 8 | 20 |
| 35405-30 | BP24-280100-0500-16 | 500 | 280 | 100 | 40 | φ16 | 55 | φ16 | M16 | 18 | 10 | 24 |
