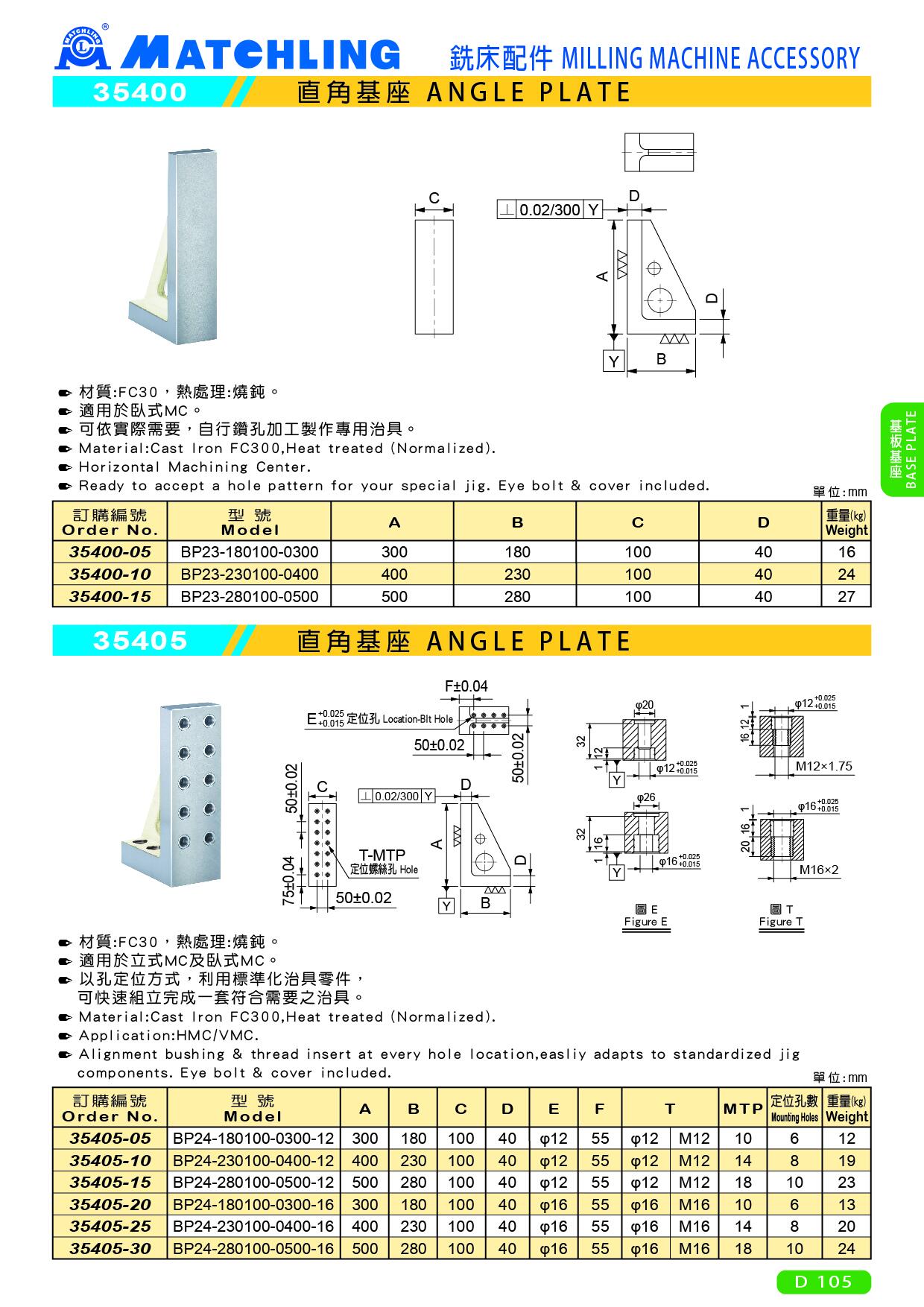

35400 ANGLE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig.
unit：mm
| Order No. | Model | A | B | C | D | Weight (kg) |
| 35400-05 | BP23-180100-0300 | 300 | 180 | 100 | 40 | 16 |
| 35400-10 | BP23-230100-0400 | 400 | 230 | 100 | 40 | 24 |
| 35400-15 | BP23-280100-0500 | 500 | 280 | 100 | 40 | 27 |
