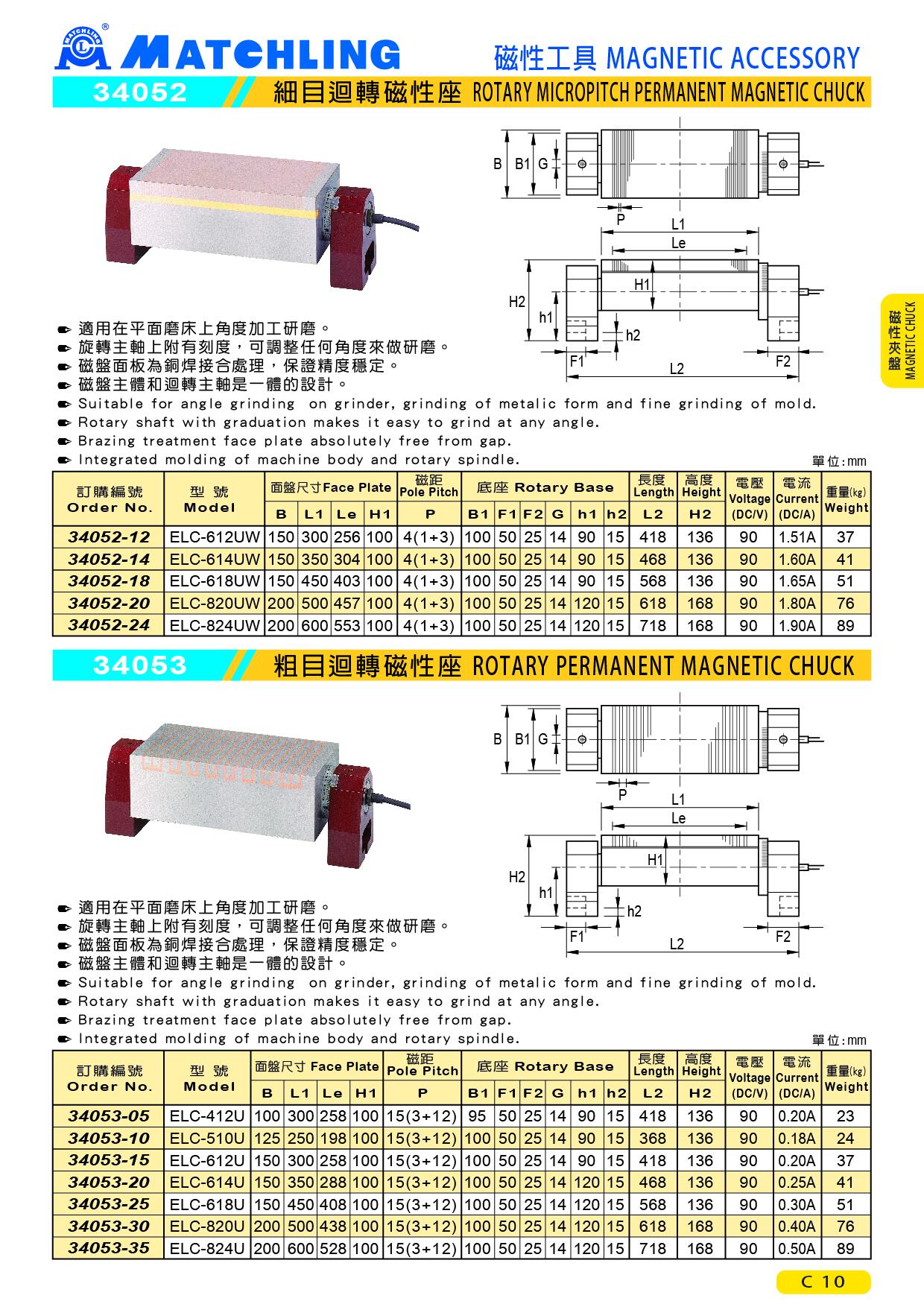

34053 Rotary Permanent Magnetic Chuck
● Suitable for angle grinding on grinder, grinding of metalic form and fine grinding of mold.
● Rotary shaft with graduation makes it easy to grind at any angle.
● Brazing treatment face plate absolutely free from gap.
● Integrated molding of machine body and rotary spindle.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Length | Height | Voltage (DC/V) | Current (DC/A) | (kg） Weight | ||||||||
| B | L1 | Le | H1 | P | B1 | F1 | F2 | G | h1 | h2 | L2 | H2 | |||||
| 34053-05 | ELC-412U | 100 | 300 | 258 | 100 | 15(3 + 12) | 95 | 50 | 25 | 14 | 90 | 15 | 418 | 136 | 90 | 0.20A | 23 |
| 34053-10 | ELC-510U | 125 | 250 | 198 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 90 | 15 | 368 | 136 | 90 | 0.18A | 24 |
| 34053-15 | ELC-612U | 150 | 300 | 258 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 90 | 15 | 418 | 136 | 90 | 0.20A | 37 |
| 34053-20 | ELC-614U | 150 | 350 | 288 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 120 | 15 | 468 | 136 | 90 | 0.25A | 41 |
| 34053-25 | ELC-618U | 150 | 450 | 408 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 120 | 15 | 568 | 136 | 90 | 0.30A | 51 |
| 34053-30 | ELC-820U | 200 | 500 | 438 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 120 | 15 | 618 | 168 | 90 | 0.40A | 76 |
| 34053-35 | ELC-824U | 200 | 600 | 528 | 100 | 15(3 + 12) | 100 | 50 | 25 | 14 | 120 | 15 | 718 | 168 | 90 | 0.50A | 89 |
