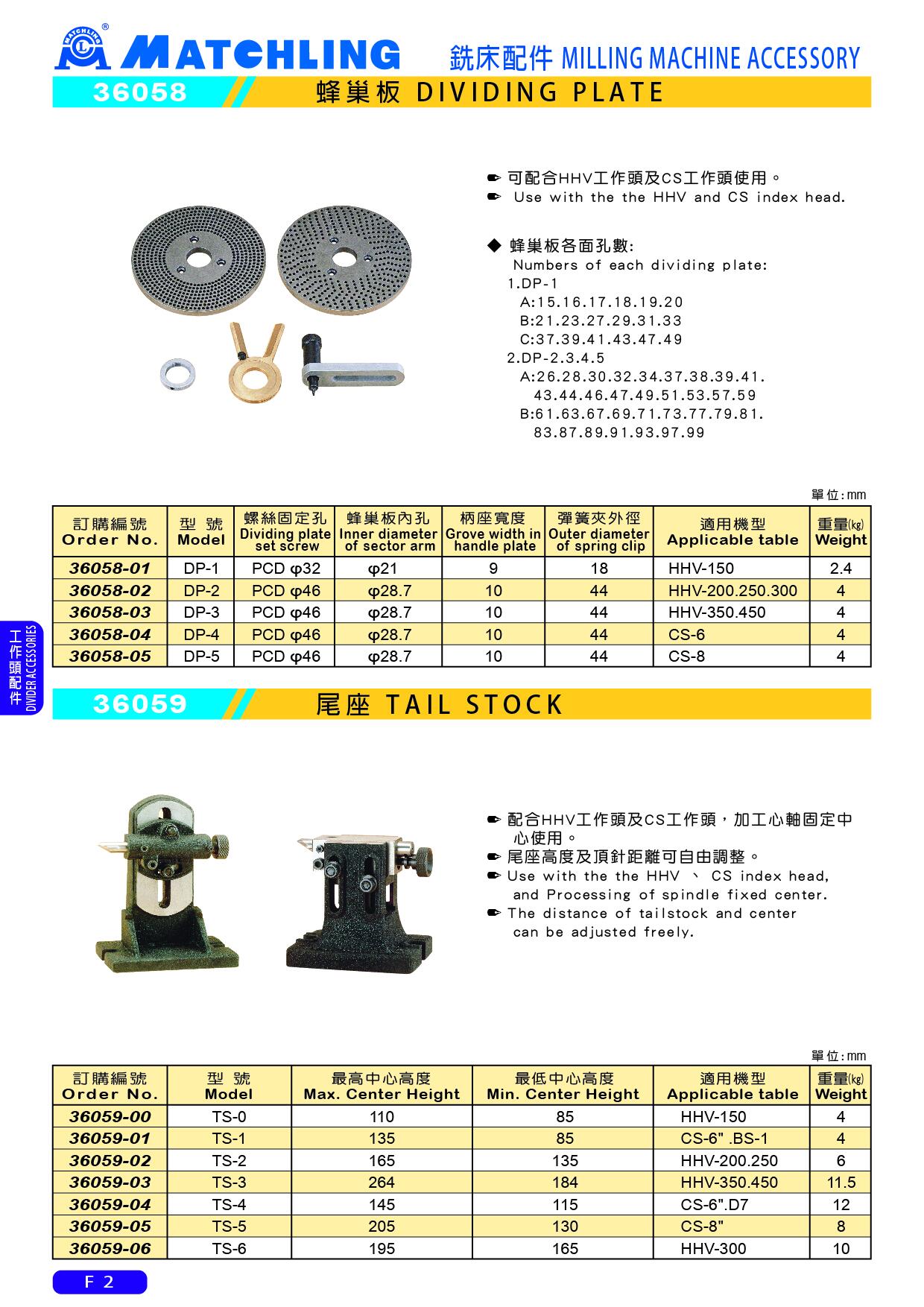

36058 DIVIDING PLATE
● Use with the the HHV and CS index head.
◆ Numbers of each dividing plate:
1.DP-1
A:15.16.17.18.19.20
B:21.23.27.29.31.33
C:37.39.41.43.47.49
2.DP-2.3.4.5
A:26.28.30.32.34.37.38.39.41.43.44.46.47.49.51.53.57.59
B:61.63.67.69.71.73.77.79.81.83.87.89.91.93.97.99
unit：mm
| Order No. | Model | Dividing plate set screw | Inner diameter of sector arm | Grove width in handle plate | Outer diameter of spring clip | Applicable table | Weight (kg) |
| 36058-01 | DP-1 | PCDφ32 | φ21 | 9 | 18 | HHV-150 | 2.4 |
| 36058-02 | DP-2 | PCDφ46 | φ28.7 | 10 | 44 | HHV-200.250.300 | 4 |
| 36058-03 | DP-3 | PCDφ46 | φ28.7 | 10 | 44 | HHV-350.450 | 4 |
| 36058-04 | DP-4 | PCDφ46 | φ28.7 | 10 | 44 | CS-6 | 4 |
| 36058-05 | DP-5 | PCDφ46 | φ28.7 | 10 | 44 | CS-8 | 4 |
