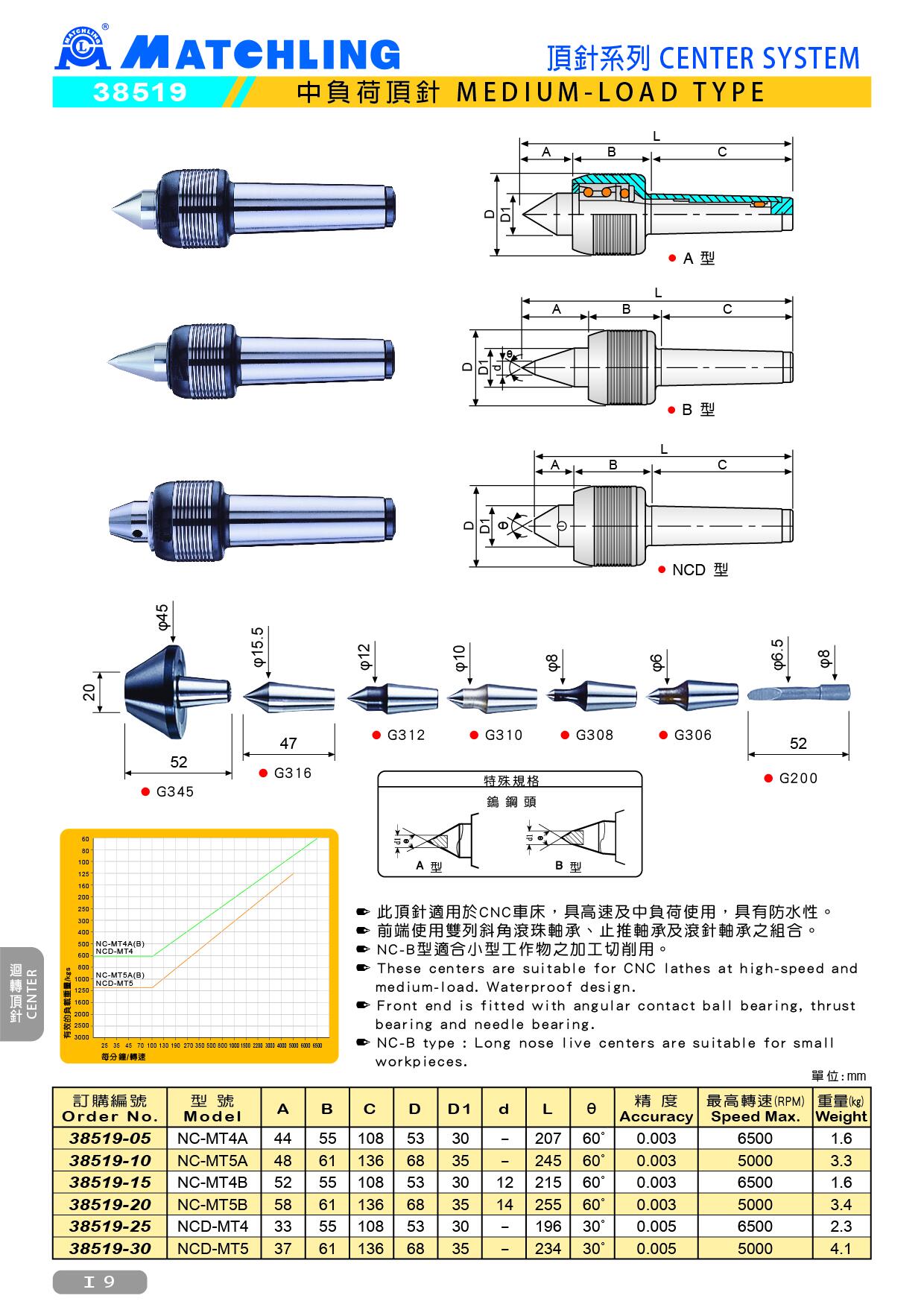

38519 MEDIUM-LOAD TYPE
● These centers are suitable for CNC lathes at high-speed and medium-load. Waterproof design.
● Front end is fitted with angular contact ball bearing, thrust bearing and needle bearing.
● NC-B type : Long nose live centers are suitable for small workpieces.
unit：mm
| Order No. | Model | A | B | C | D | D1 | d | L | θ | Accuracy | Speed Max・(RPM) | Weight (kg) |
| 38519-05 | NC-MT4A | 44 | 55 | 108 | 53 | 30 | - | 207 | 60° | 0.003 | 6500 | 1.6 |
| 38519-10 | NC-MT5A | 48 | 61 | 136 | 68 | 35 | - | 245 | 60° | 0.003 | 5000 | 3.3 |
| 38519-15 | NC-MT4B | 52 | 55 | 108 | 53 | 30 | 12 | 215 | 60° | 0.003 | 6500 | 1.6 |
| 38519-20 | NC-MT5B | 58 | 61 | 136 | 68 | 35 | 14 | 255 | 60° | 0.003 | 5000 | 3.4 |
| 38519-25 | NCD-MT4 | 33 | 55 | 108 | 53 | 30 | - | 196 | 30° | 0.005 | 6500 | 2.3 |
| 38519-30 | NCD-MT5 | 37 | 61 | 136 | 68 | 35 | - | 234 | 30° | 0.005 | 5000 | 4.1 |
