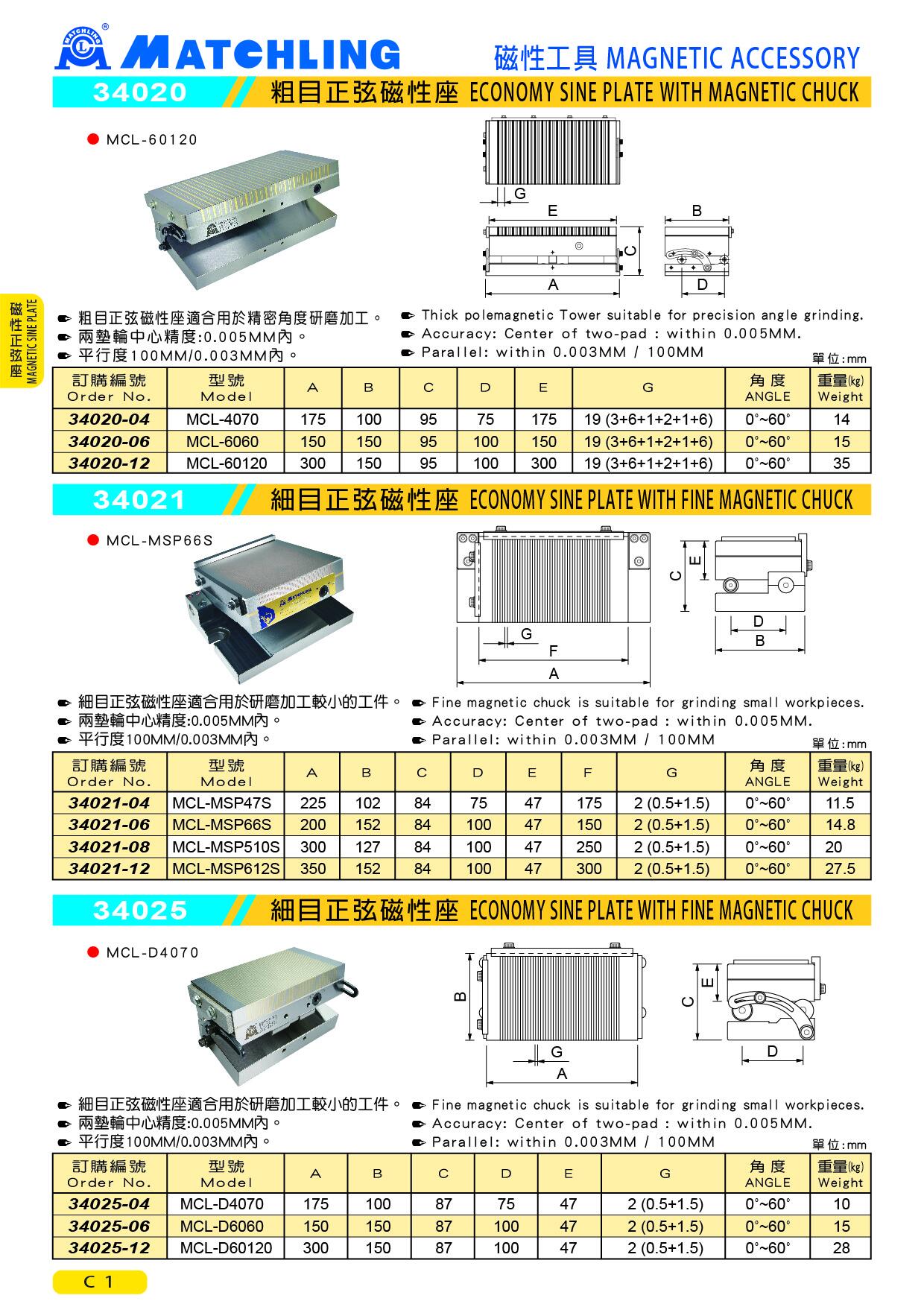

34021 ECONOMY SINE PLATE WITH FINE MAGNETIC CHUCK
● Fine magnetic chuck is suitable for grinding small workpieces.
● Accuracy: Center of two-pad : within 0.005MM.
● Parallel: within 0.003MM / 100MM
unit：mm
| Order No. | Model | A | B | C | D | E | G | ANGLE | Weight (kg) |
| 34021-04 | MCL-MSP47S | 225 | 102 | 87 | 75 | 47 | 2 (0.5+1.5) | 0°〜60° | 11.5 |
| 34021-06 | MCL-MSP66S | 200 | 152 | 87 | 100 | 47 | 2 (0.5+1.5) | 0°〜60° | 14.8 |
| 34021-08 | MCL-MSP510S | 300 | 127 | 87 | 100 | 47 | 2 (0.5+1.5) | 0°〜60° | 20 |
| 34021-12 | MCL-MSP612S | 350 | 152 | 87 | 100 | 47 | 2 (0.5+1.5) | 0°〜60° | 28 |
