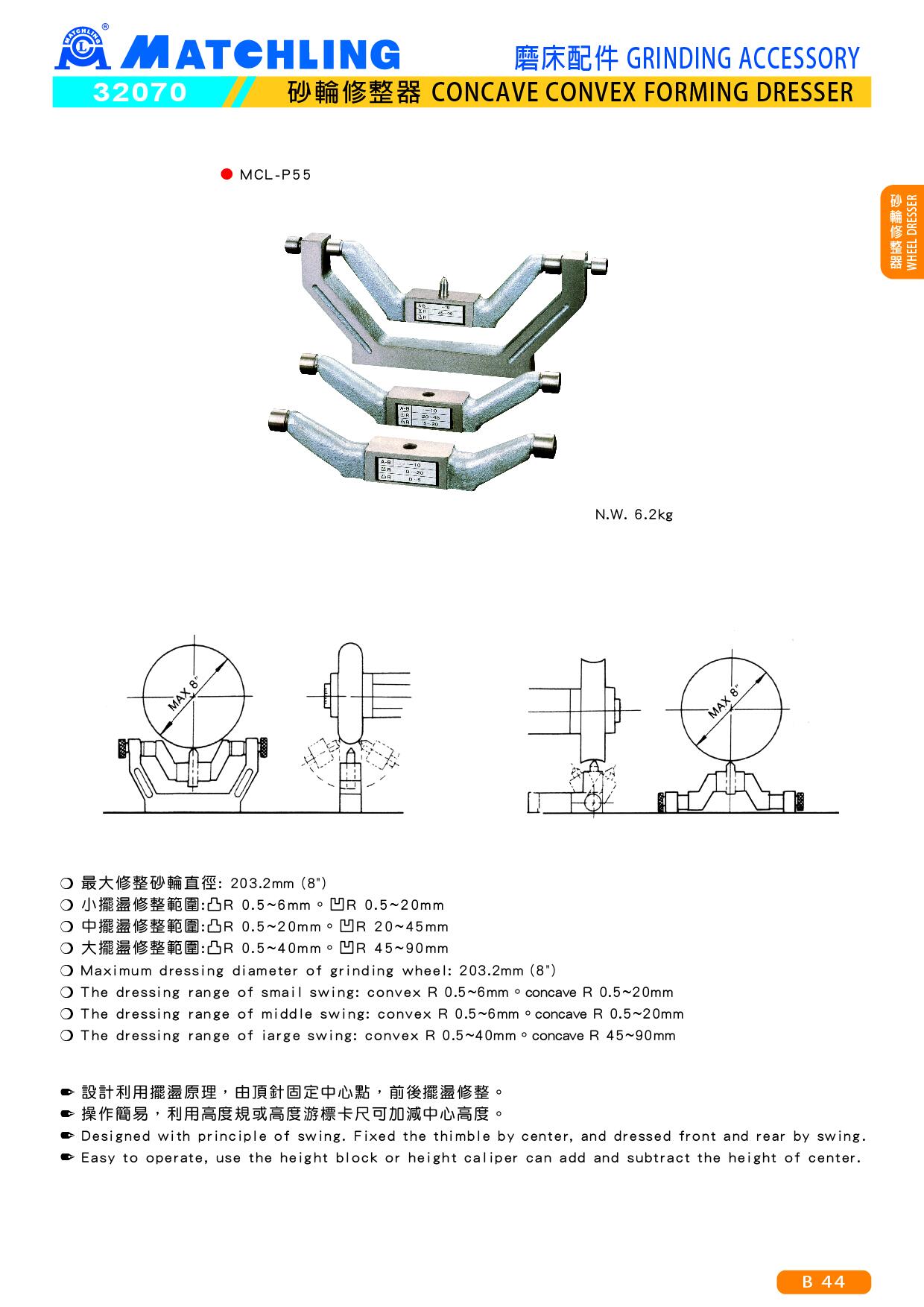

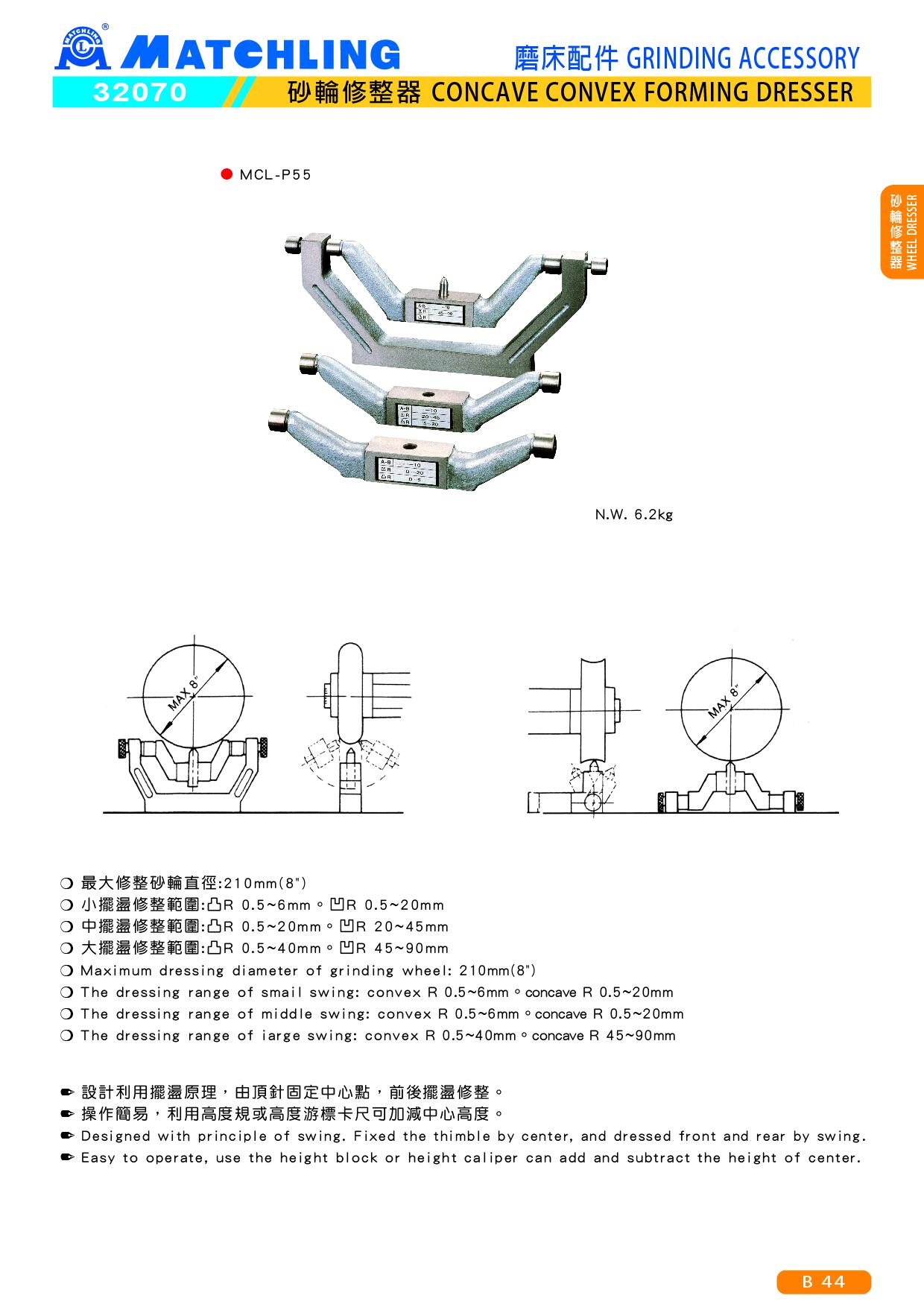

32070 Concave Convex Forming Dresser

● Designed with principle of swing. Fixed the thimble by center, and dressed front and rear by swing.
● Easy to operate, use the height block or height caliper can add and subtract the height of center.

■ Specifications:
● Maximum dressing diameter of grinding wheel:210mm(8")
● The dressing range of smail swing:convex R 0.5~6mm。concave R 0.5~20mm
●The dressing range of middle swing:convex R 0.5~6mm。concave R 0.5~20mm
● The dressing range of iarge swing:convex R 0.5~40mm。concave R 45~90mm
● Weight:6.2kg

■ Accessory:
1. Diamond pen--- 1 piece
2. Center for fixed--- 2 pieces
