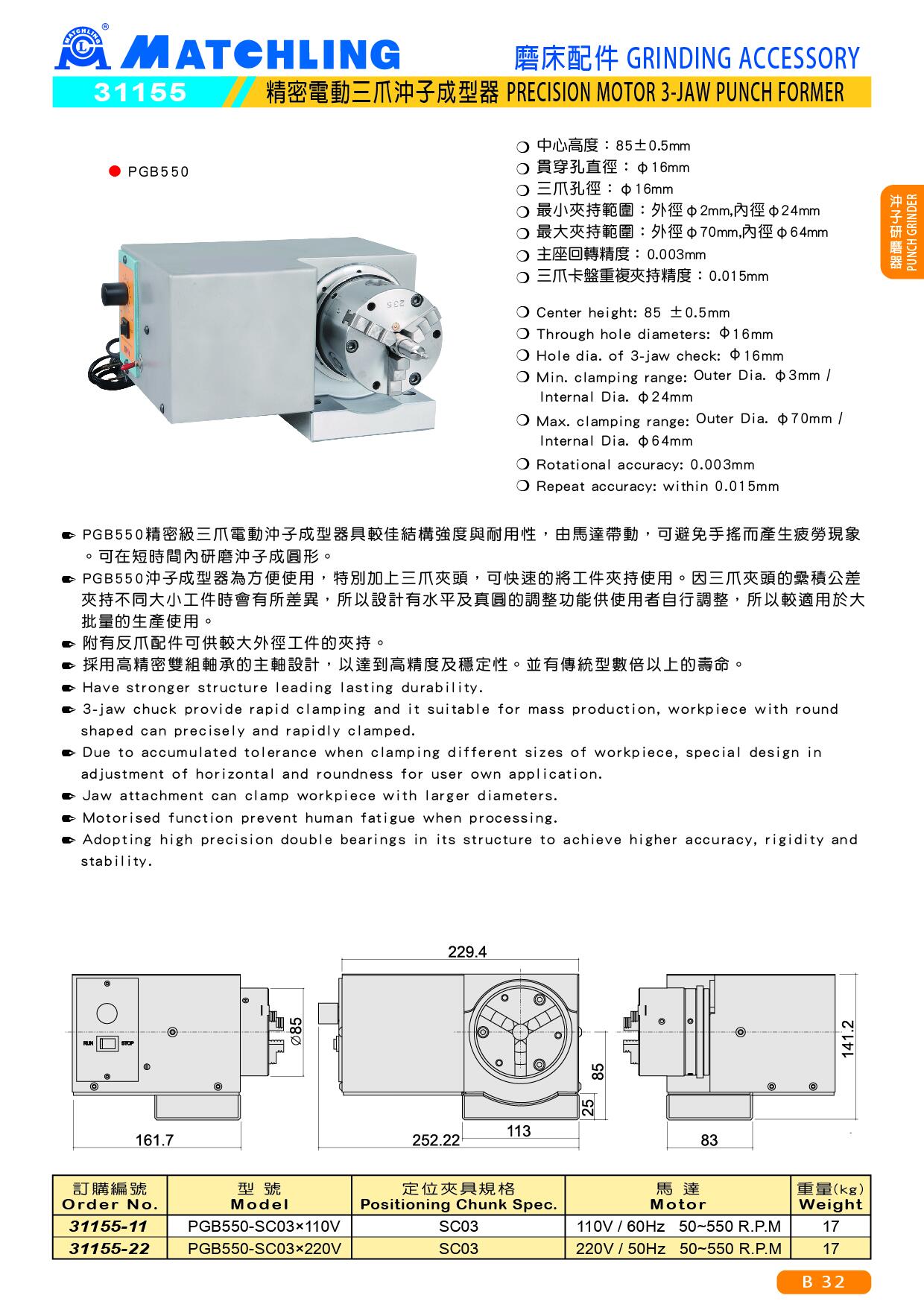

31155 PRECISION MOTOR 3-JAW PUNCH FORMER
● Have stronger structure leading lasting durability.
● 3-jaw chuck provide rapid clamping and it suitable for mass production, workpiece with round shaped can precisely and rapidly clamped.
● Jaw attachment can clamp workpiece with larger diameters.
● Motorised function prevent human fatigue when processing.
■ Specifications:
● Center height: 85 ±0.5mm
● Through hole diameters: φ16mm
● Hole dia. of 3-jaw check: φ16mm
● Min. clamping range: Outer Dia. φ3mm / Internal Dia. φ24mm
● Max. clamping range: Outer Dia. φ70mm / Internal Dia. φ64mm
● Rotational accuracy: 0.003mm
● Repeat accuracy: within 0.015mm
unit：mm
| Order No. | Model | Positioning Chunk Spec. | Motor | Weight（kg） |
| 31155-11 | PGB550-SC03x110V | SC03 | 110V / 60Hz 50-550 R.P.M | 17 |
| 31155-22 | PGB550-SC03x220V | SC03 | 220V / 50Hz 50-550 R.P.M | 17 |
