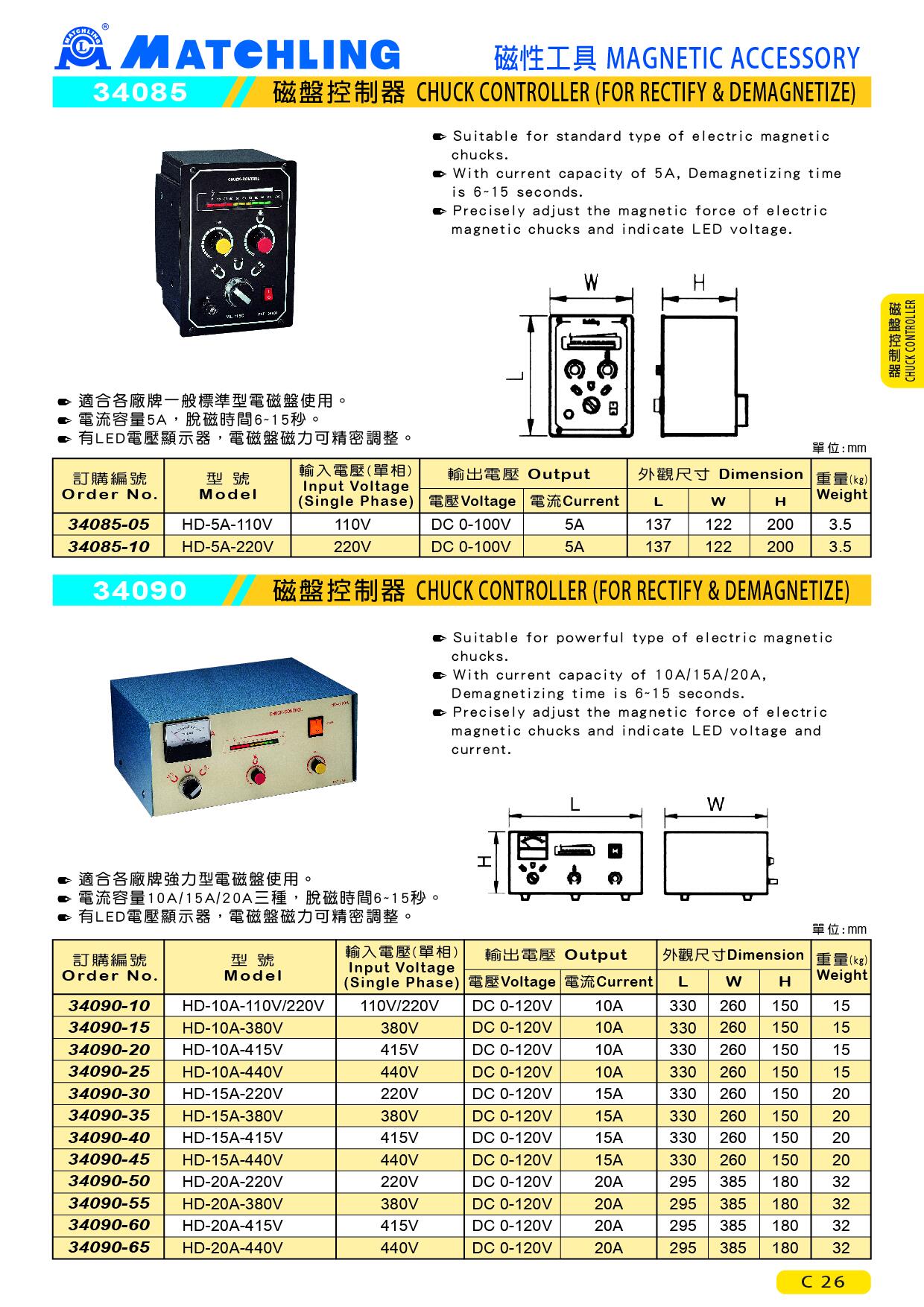

34090 CHUCK CONTROLLER (FOR RECTIFY & DEMAGNETIZE)
● Suitable for powerful type of electric magnetic chucks.
● With current capacity of 10A/15A/20A, Demagnetizing time is 6-15 seconds.
● Precisely adjust the magnetic force of electric magnetic chucks and indicate LED voltage and current.
unit：mm
| Order No. | Model | Input Voltage (Single Phase) | Output | Dimension | Weight (kg） | |||
| Voltage | Current | L | W | H | ||||
| 34090-10 | HD-10A-110V/220V | 110V/220V | DC 0-120V | 10A | 330 | 260 | 150 | 15 |
| 34090-15 | HD-10A-380V | 380V | DC 0-120V | 10A | 330 | 260 | 150 | 15 |
| 34090-20 | HD-10A-415V | 415V | DC 0-120V | 10A | 330 | 260 | 150 | 15 |
| 34090-25 | HD-10A-440V | 440V | DC 0-120V | 10A | 330 | 260 | 150 | 15 |
| 34090-30 | HD-15A-220V | 220V | DC 0-120V | 15A | 330 | 260 | 150 | 20 |
| 34090-35 | HD-15A-380V | 380V | DC 0-120V | 15A | 330 | 260 | 150 | 20 |
| 34090-40 | HD-15A-415V | 415V | DC 0-120V | 15A | 330 | 260 | 150 | 20 |
| 34090-45 | HD-15A-440V | 440V | DC 0-120V | 15A | 330 | 260 | 150 | 20 |
| 34090-50 | HD-20A-220V | 220V | DC 0-120V | 20A | 295 | 385 | 180 | 32 |
| 34090-55 | HD-20A-380V | 380V | DC 0-120V | 20A | 295 | 385 | 180 | 32 |
| 34090-60 | HD-20A-415V | 415V | DC 0-120V | 20A | 295 | 385 | 180 | 32 |
| 34090-65 | HD-20A-440V | 440V | DC 0-120V | 20A | 295 | 385 | 180 | 32 |
