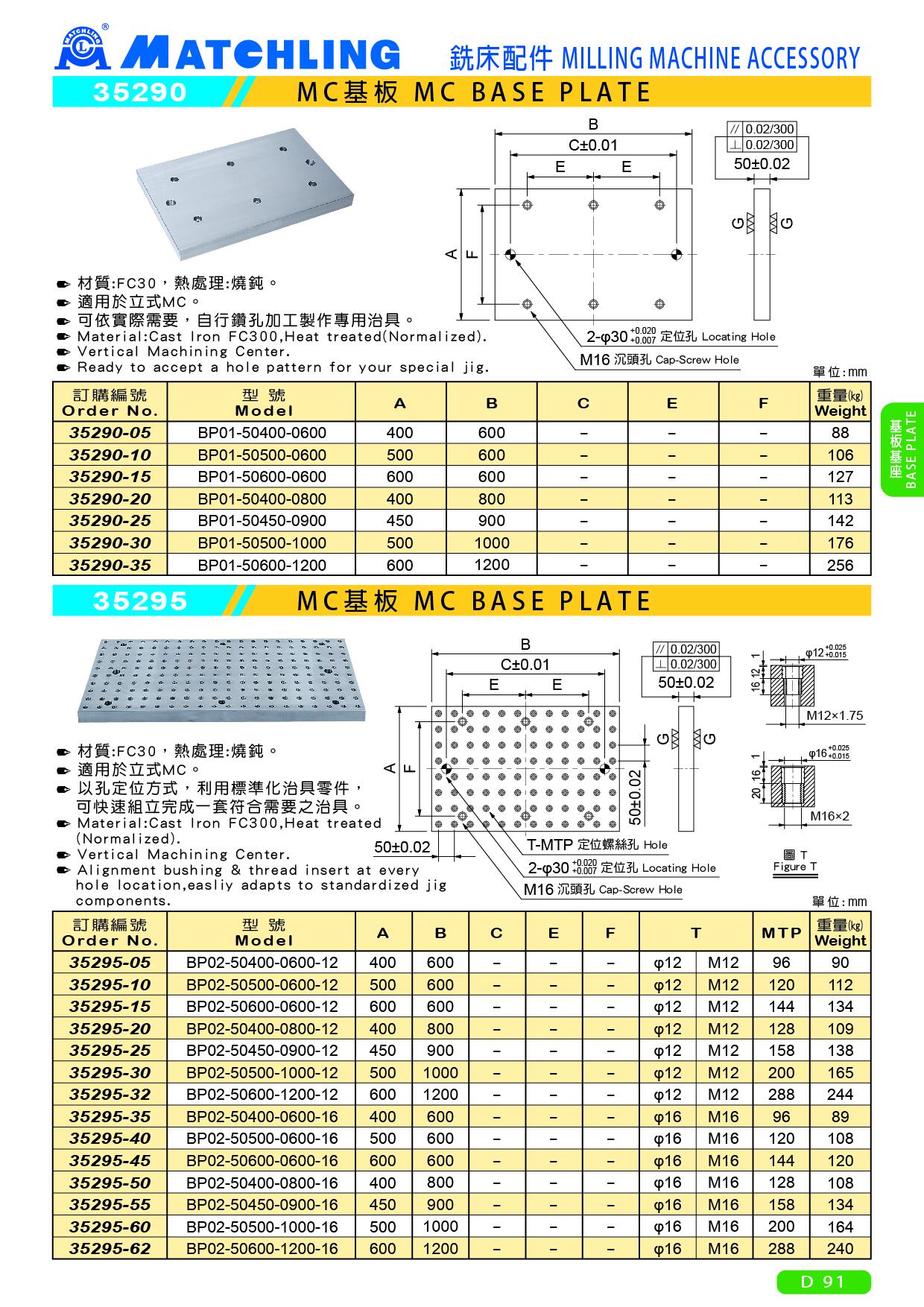

35295 MC BASE PLATE
● Material:Cast Iron FC300,Heat treated (Normalized).
● Vertical Machining Center.
● Alignment bushing & thread insert at every hole location,easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | E | F | T | MTP | Weight (kg) | |
| 35295-05 | BP02-50400-0600-12 | 400 | 600 | - | - | - | φ12 | M12 | 96 | 90 |
| 35295-10 | BP02-50500-0600-12 | 500 | 600 | - | - | - | φ12 | M12 | 120 | 112 |
| 35295-15 | BP02-50600-0600-12 | 600 | 600 | - | - | - | φ12 | M12 | 144 | 134 |
| 35295-20 | BP02-50400-0800-12 | 400 | 800 | - | - | - | φ12 | M12 | 128 | 109 |
| 35295-25 | BP02-50450-0900-12 | 450 | 900 | - | - | - | φ12 | M12 | 158 | 138 |
| 35295-30 | BP02-50500-1000-12 | 500 | 1000 | - | - | - | φ12 | M12 | 200 | 165 |
| 35295-32 | BP02-50600-1200-12 | 600 | 1200 | - | - | - | φ12 | M12 | 288 | 244 |
| 35295-35 | BP02-50400-0600-16 | 400 | 600 | - | - | - | φ16 | M16 | 96 | 89 |
| 35295-40 | BP02-50500-0600-16 | 500 | 600 | - | - | - | φ16 | M16 | 120 | 108 |
| 35295-45 | BP02-50600-0600-16 | 600 | 600 | - | - | - | φ16 | M16 | 144 | 120 |
| 35295-50 | BP02-50400-0800-16 | 400 | 800 | - | - | - | φ16 | M16 | 128 | 108 |
| 35295-55 | BP02-50450-0900-16 | 450 | 900 | - | - | - | φ16 | M16 | 158 | 134 |
| 35295-60 | BP02-50500-1000-16 | 500 | 1000 | - | - | - | φ16 | M16 | 200 | 164 |
| 35295-62 | BP02-50600-1200-16 | 600 | 1200 | - | - | - | φ16 | M16 | 288 | 240 |
