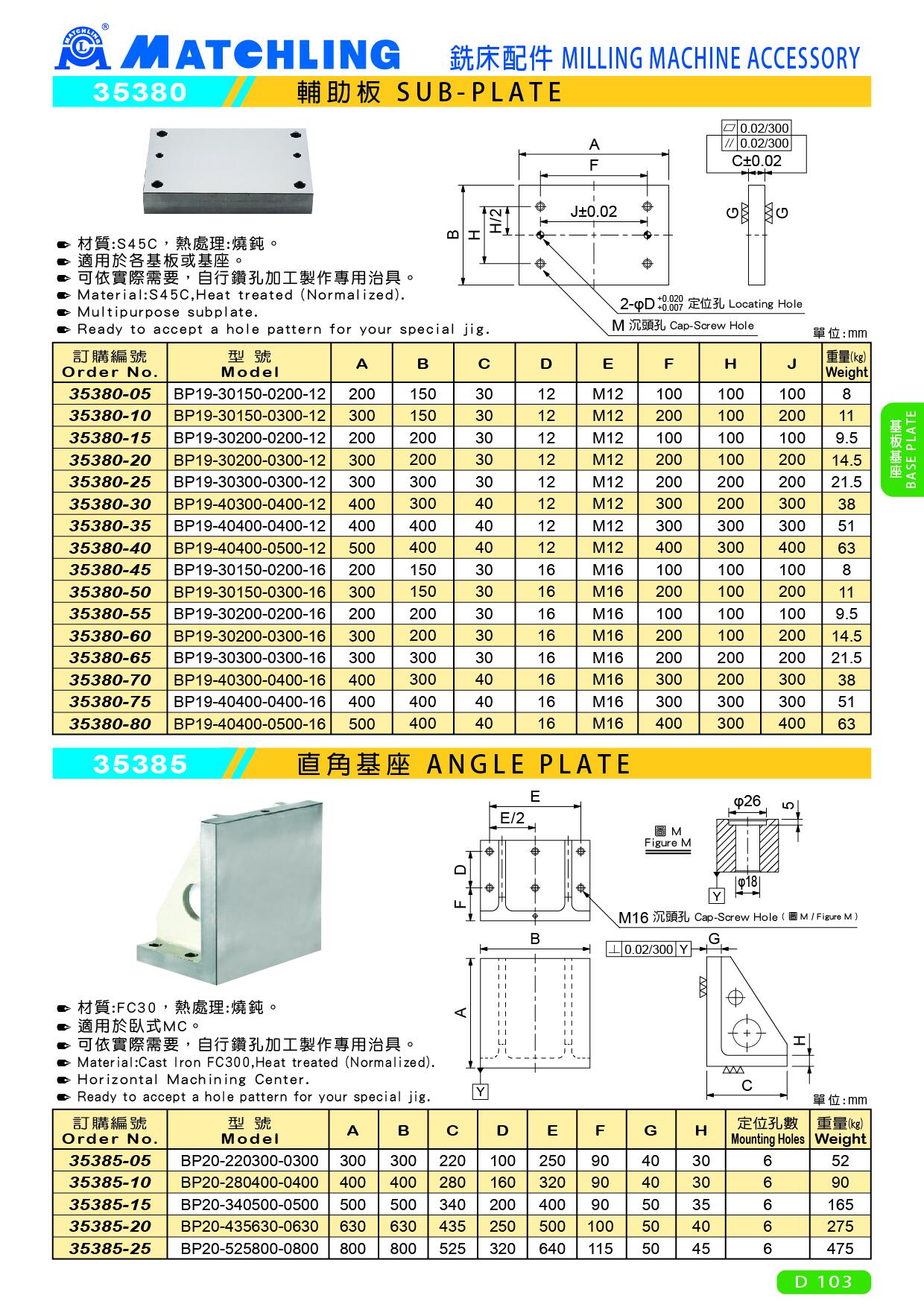

35380 SUB-PLATE

Description
Specifications

● Material:S45C,Heat treated (Normalized).
● Multipurpose subplate.
● Ready to accept a hole pattern for your special jig.

unit：mm

Order No	Model	A	B	C	D	E	F	H	J	Weight (kg)
35380-05	BP19-30150-0200-12	200	150	30	12	M12	100	100	100	8
35380-10	BP19-30150-0300-12	300	150	30	12	M12	200	100	200	11
35380-15	BP19-30200-0200-12	200	200	30	12	M12	100	100	100	9.5
35380-20	BP19-30200-0300-12	300	200	30	12	M12	200	100	200	14.5
35380-25	BP19-30300-0300-12	300	300	30	12	M12	200	200	200	21.5
35380-30	BP19-40300-0400-12	400	300	40	12	M12	300	200	300	38
35380-35	BP19-40400-0400-12	400	400	40	12	M12	300	300	300	51
35380-40	BP19-40400-0500-12	500	400	40	12	M12	400	300	400	63
35380-45	BP19-30150-0200-16	200	150	30	16	M16	100	100	100	8
35380-50	BP19-30150-0300-16	300	150	30	16	M16	200	100	200	11
35380-55	BP19-30200-0200-16	200	200	30	16	M16	100	100	100	9.5
35380-60	BP19-30200-0300-16	300	200	30	16	M16	200	100	200	14.5
35380-65	BP19-30300-0300-16	300	300	30	16	M16	200	200	200	21.5
35380-70	BP19-40300-0400-16	400	300	40	16	M16	300	200	300	38
35380-75	BP19-40400-0400-16	400	400	40	16	M16	300	300	300	51
35380-80	BP19-40400-0500-16	500	400	40	16	M16	400	300	400	63
