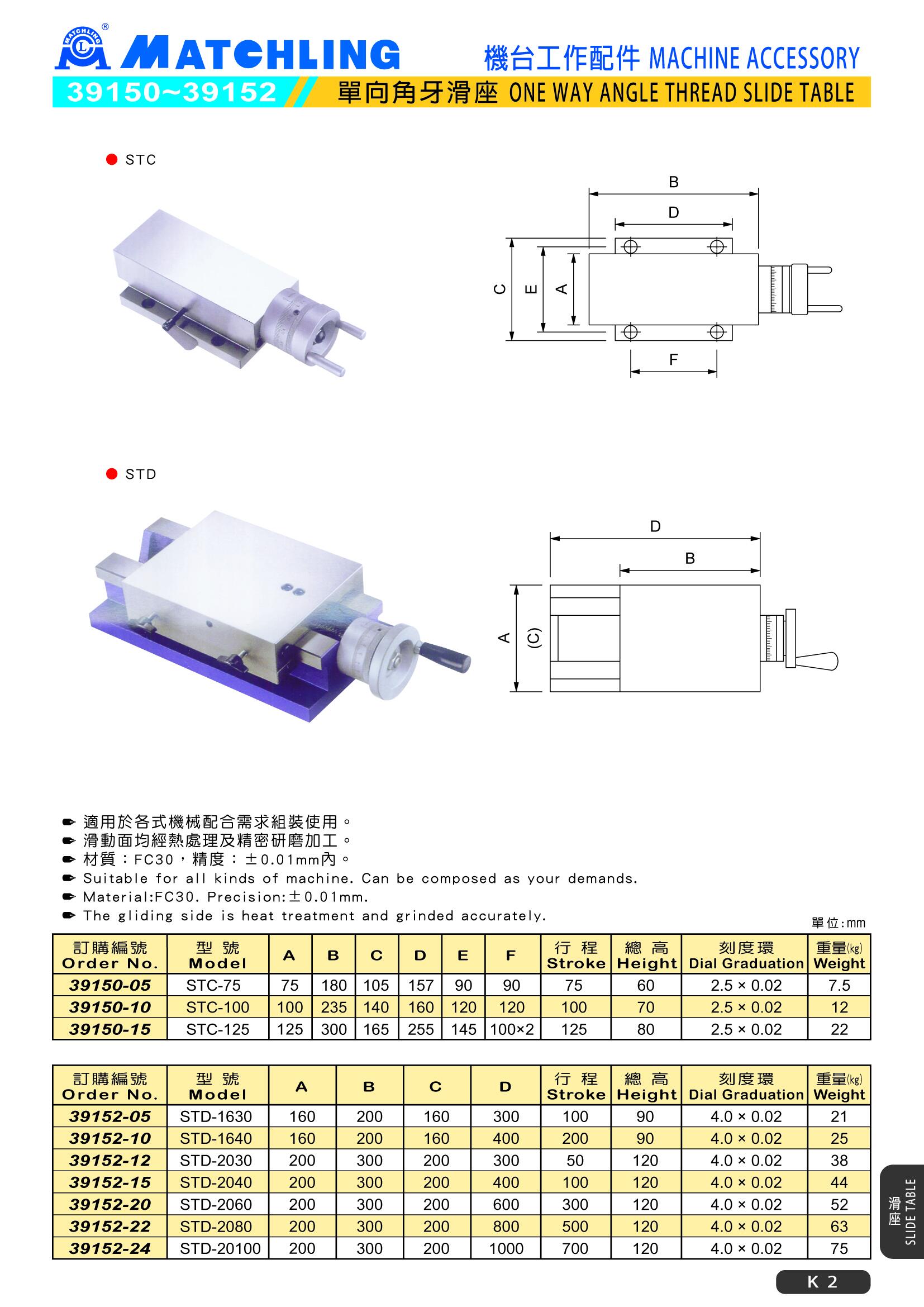

39152 ONE WAY ANGLE THREAD SLIDE TABLE
● Suitable for all kinds of machine. Can be composed as your demands.
● Material:FC30. Precision:±0.01mm.
● The gliding side is heat treatment and grinded accurately.
unit：mm
| Order No. | Model | A | B | C | D | Stroke | Height | Dial Graduation | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 39152-05 | STD-1630 | 160 | 200 | 160 | 300 | 100 | 90 | 4.0*0.02 | 21 |
| 39152-10 | STD-1640 | 160 | 200 | 160 | 400 | 200 | 90 | 4.0*0.02 | 25 |
| 39152-12 | STD-2030 | 200 | 300 | 200 | 300 | 50 | 120 | 4.0*0.02 | 38 |
| 39152-15 | STD-2040 | 200 | 300 | 200 | 400 | 100 | 120 | 4.0*0.02 | 44 |
| 39152-20 | STD-2060 | 200 | 300 | 200 | 600 | 300 | 120 | 4.0*0.02 | 52 |
| 39152-22 | STD-2080 | 200 | 300 | 200 | 800 | 500 | 120 | 4.0*0.02 | 63 |
| 39152-24 | STD-20100 | 200 | 300 | 200 | 1000 | 700 | 120 | 4.0*0.02 | 75 |
