unit：mm
| Order No | Model | A | B | C | D | E | F | G | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 33012-20 | VA-20 | 156 | 48 | 52 | 25 | 27 | 25 | 0-63 | 2.3 |
| 33012-25 | VA-25 | 176 | 63 | 63 | 30 | 33 | 30 | 0-73 | 4 |
| 33012-30 | VA-30 | 190 | 73 | 73 | 35 | 38 | 35 | 0-76 | 5.5 |
| 33012-40 | VA-40 | 255 | 98 | 82 | 40 | 42 | 40 | 0-120 | 11 |

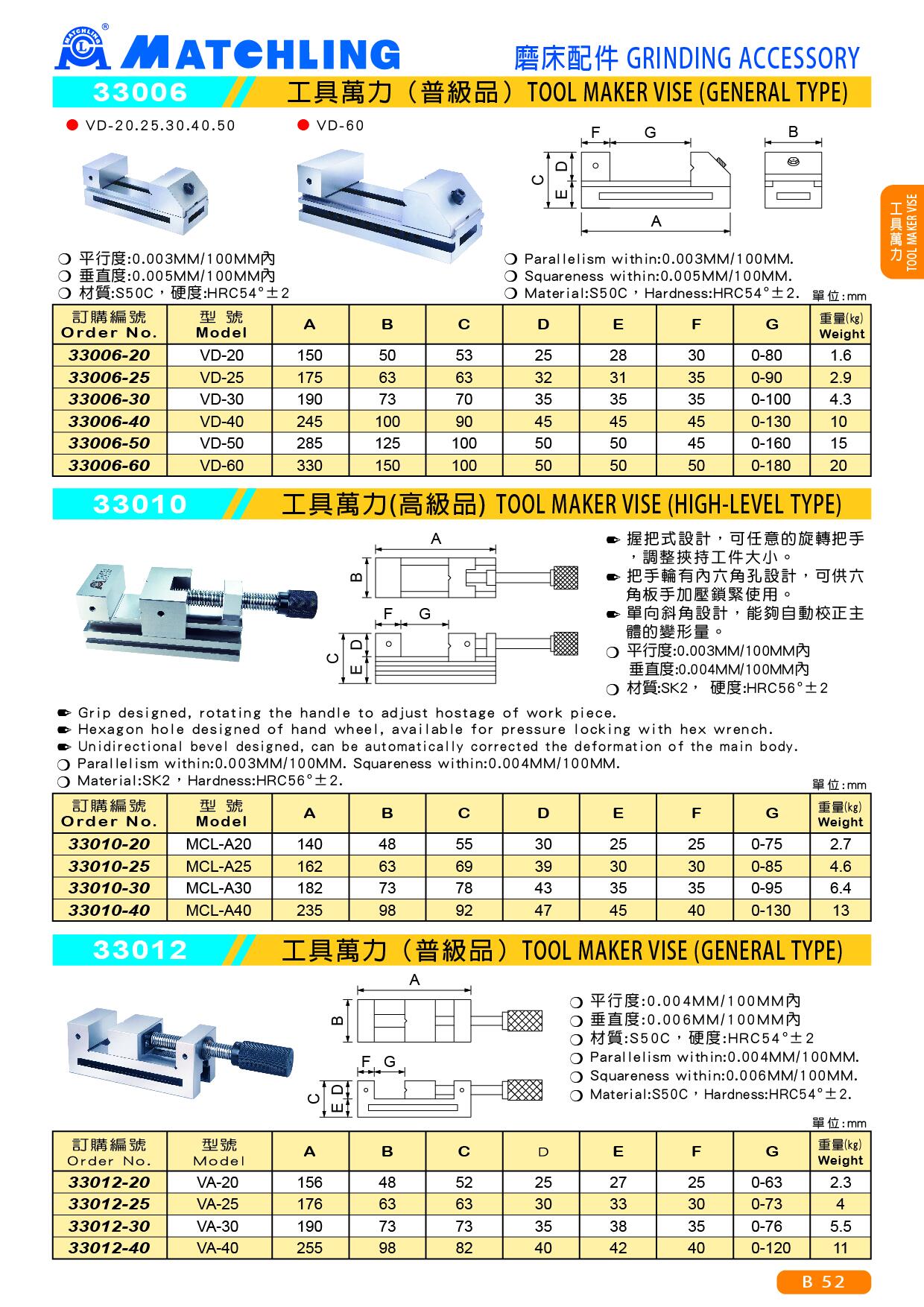

33012 TOOL MAKER VISE GENERAL TYPE
● Parallelism within:0.004MM/100MM.
● Squareness within:0.006MM/100MM.
● Material:S50C，Hardness:HRC54°±2.
