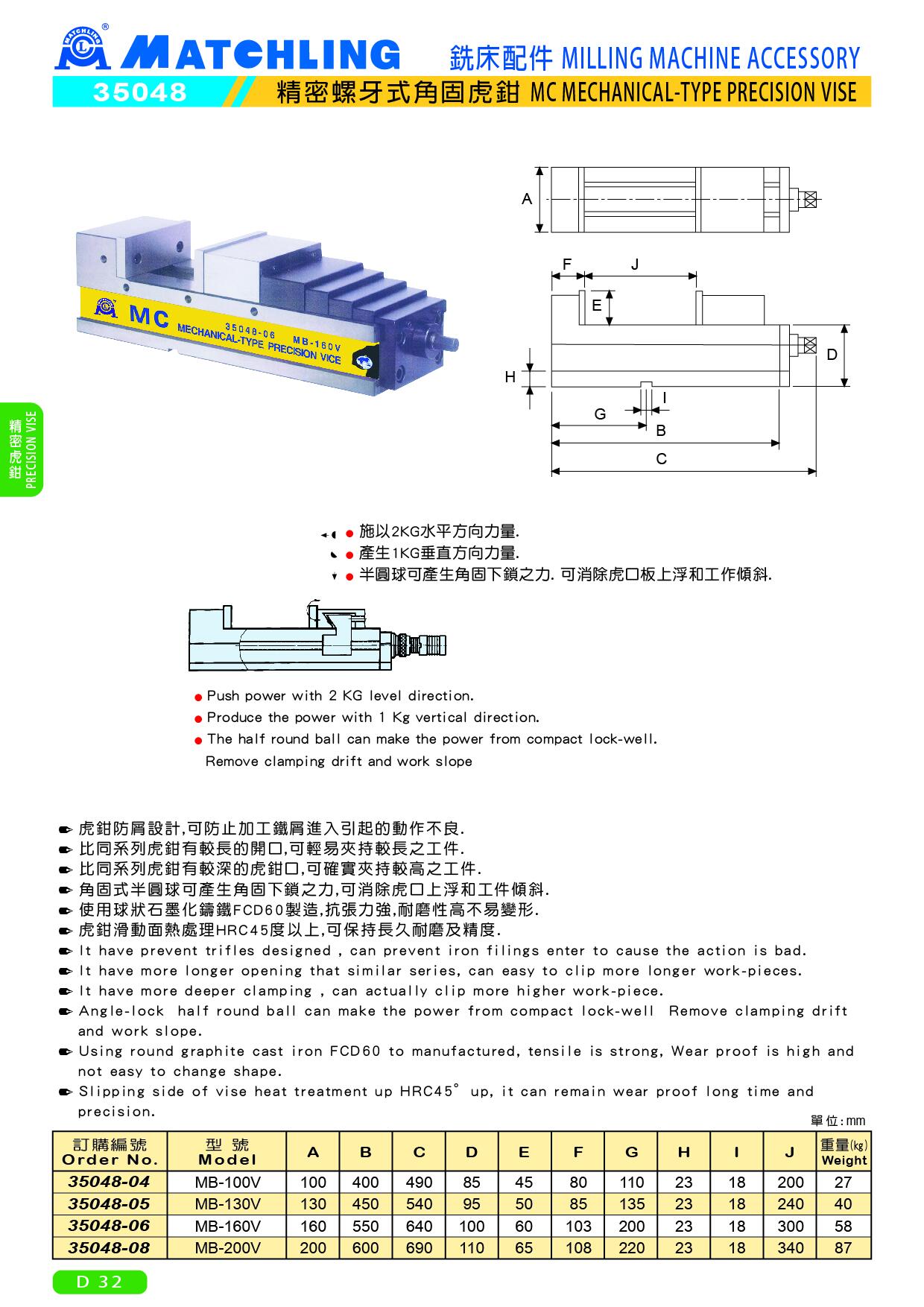

● It have prevent trifles designed , can prevent iron filings enter to cause the action is bad.
● It have more longer opening that similar series, can easy to clip more longer work-pieces.
● It have more deeper clamping , can actually clip more higher work-piece.
● Angle-lock half round ball can make the power from compact lock-well Remove clamping drift and work slope.
● Using round graphite cast iron FCD60 to manufactured, tensile is strong, Wear proof is high and not easy to change shape.
● Slipping side of vise heat treatment up HRC45°up, it can remain wear proof long time and precision.
unit:mm
| Order No. | Model | A | B | C | D | E | F | G | H | I | J | Weight (kg) |
| 35048-04 | MB-100V | 100 | 400 | 490 | 85 | 45 | 80 | 110 | 23 | 18 | 200 | 27 |
| 35048-05 | MB-130V | 130 | 450 | 540 | 95 | 50 | 85 | 135 | 23 | 18 | 240 | 40 |
| 35048-06 | MB-160V | 160 | 550 | 640 | 100 | 60 | 103 | 200 | 23 | 18 | 300 | 58 |
| 35048-08 | MB-200V | 200 | 600 | 690 | 110 | 65 | 108 | 220 | 23 | 18 | 340 | 87 |
