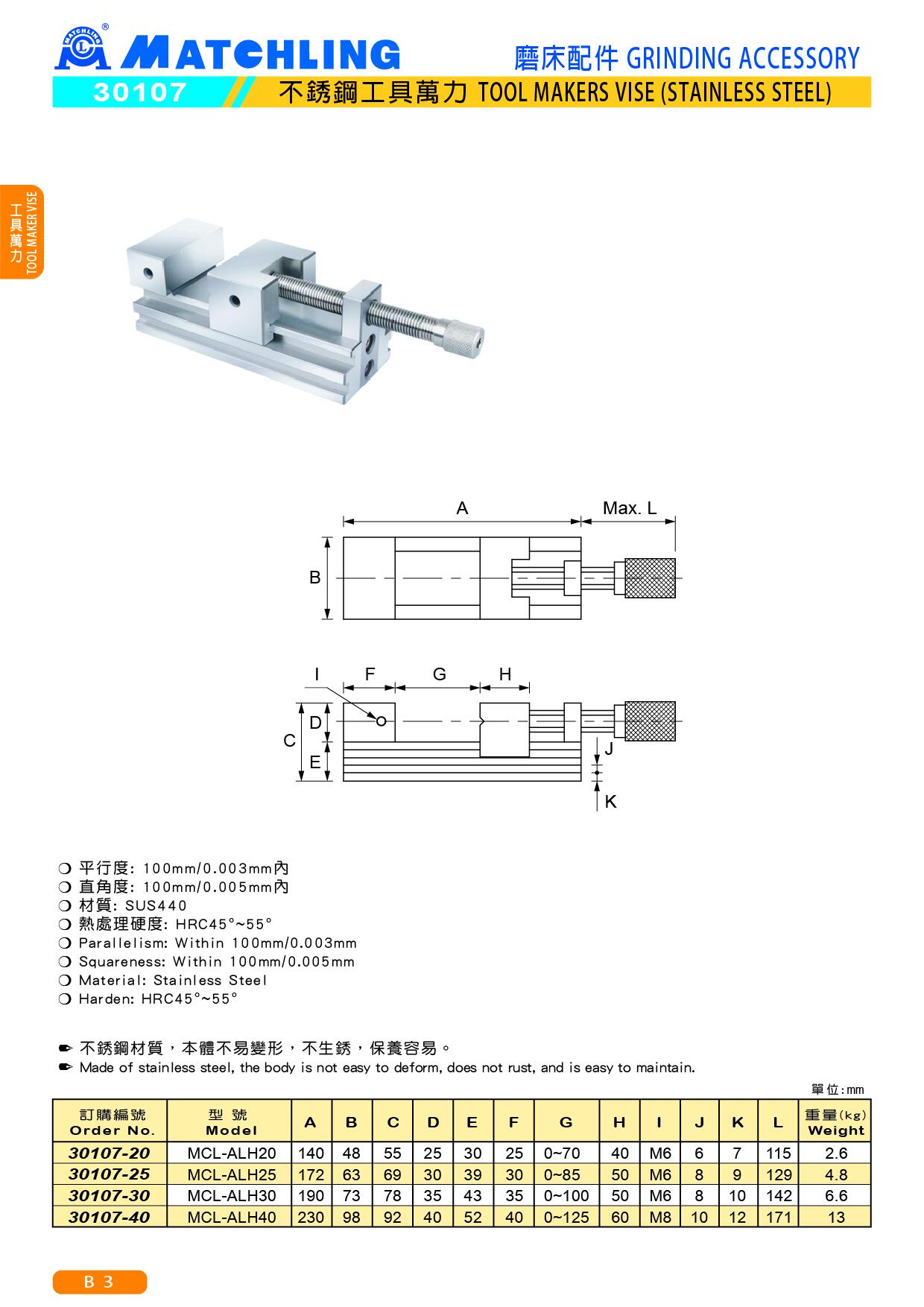

30107 TOOL MAKERS VISE (STAINLESS STEEL)
● Super Cold treating the stainless steel material after heat treatment, makes the rustless tools easy to be maintained and preserve lasting precision.
■ Feature:
● Parallelism:Within 100mm/0.003mm
● Squareness:Within 100mm/0.005mm
● Material:Stainless Steel
● Harden:HRC45 °~55°
● Weight:5kg
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | I | J | K | L | Weight (kg) |
| 30107-20 | MCL-ALH20 | 140 | 48 | 55 | 25 | 30 | 25 | 0-70 | 40 | M6 | 6 | 7 | 115 | 2.6 |
| 30107-25 | MCL-ALH25 | 172 | 63 | 69 | 30 | 39 | 30 | 0-85 | 50 | M6 | 8 | 9 | 129 | 4.8 |
| 30107-30 | MCL-ALH30 | 190 | 73 | 78 | 35 | 43 | 35 | 0-100 | 50 | M6 | 8 | 10 | 142 | 6.6 |
| 30107-40 | MCL-ALH40 | 230 | 98 | 92 | 40 | 52 | 40 | 0-125 | 60 | M8 | 10 | 12 | 171 | 13 |
