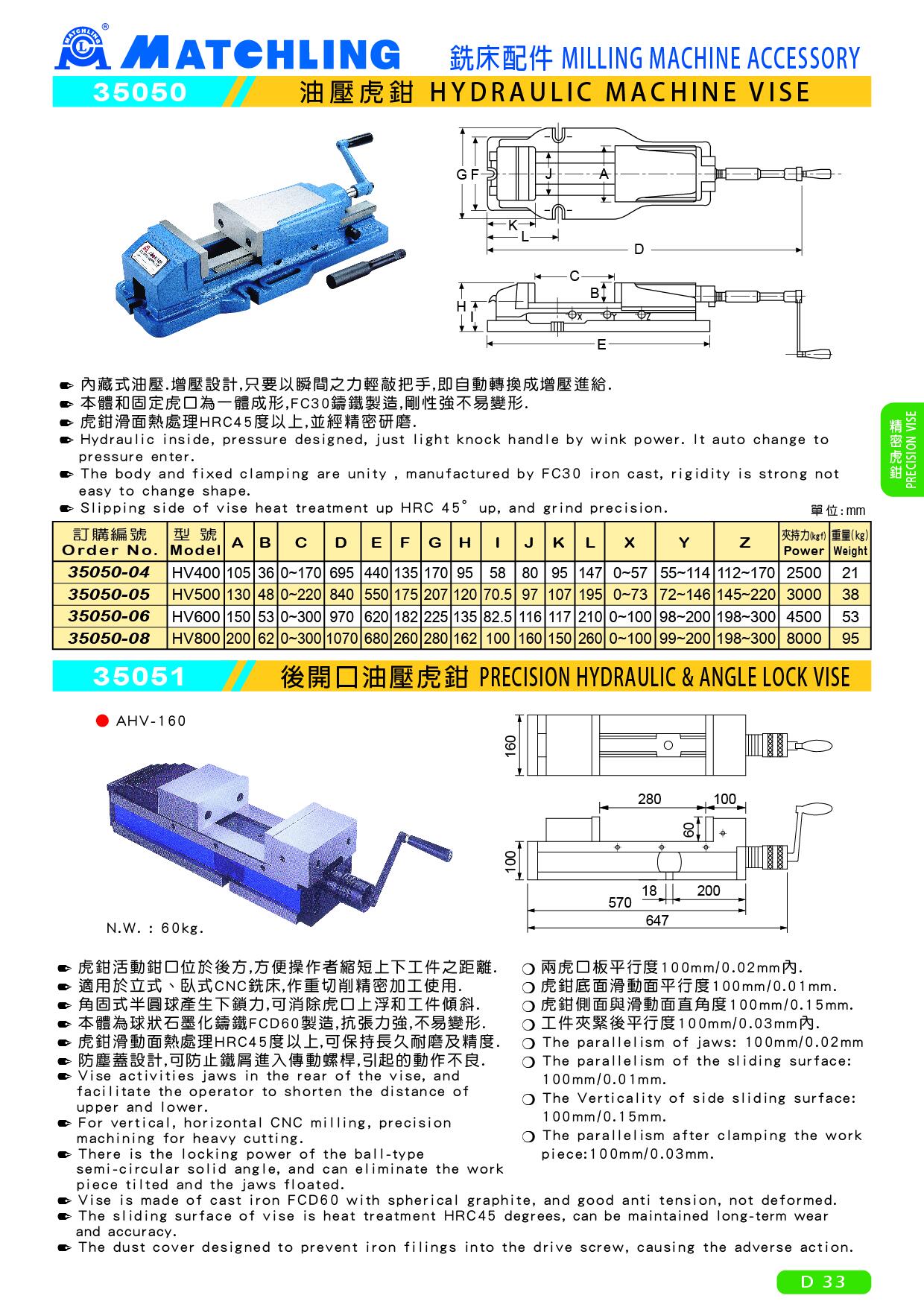

35050 Hydraulic Machine Vise
Hydraulic machine vise for CNC and milling machines, featuring automatic pressure clamping, rigid FC30 cast iron body, and precision-ground slideways.
- ● Hydraulic inside, pressure designed, just a light knock handle with a wink of power. It automatically changes to pressure enter.
- ● The body and fixed clamping are united, manufactured from FC30 iron cast, with strong rigidity and resistance to deformation.
- ● Slip the side of the hydraulic vise heat treatment up to HRC 45 °, and grind to precision.
- ● Ideal for CNC machining centers, milling machines, and precision metalworking applications.
unit：mm
| Order No | Model | A | B | C | D | E | F | G | H | I | J | K | L | X | Y | Z | Power (kgf) | Weight (kg) |
| 35050-04 | HV400 | 105 | 36 | 0-170 | 525 | 440 | 135 | 170 | 95 | 58 | 80 | 95 | 147 | 0~57 | 55-114 | 112-170 | 2500 | 21 |
| 35050-05 | HV500 | 130 | 48 | 0-220 | 670 | 550 | 175 | 207 | 120 | 70.5 | 97 | 107 | 195 | 0~73 | 72-146 | 145*220 | 3000 | 38 |
| 35050-06 | HV600 | 150 | 53 | 0-300 | 800 | 620 | 182 | 225 | 135 | 82.5 | 116 | 117 | 210 | 0*100 | 98-200 | 198-300 | 4500 | 53 |
| 35050-08 | HV800 | 200 | 62 | 0*300 | 900 | 680 | 260 | 280 | 162 | 100 | 160 | 150 | 260 | 0-100 | 99-200 | 198*300 | 8000 | 95 |
