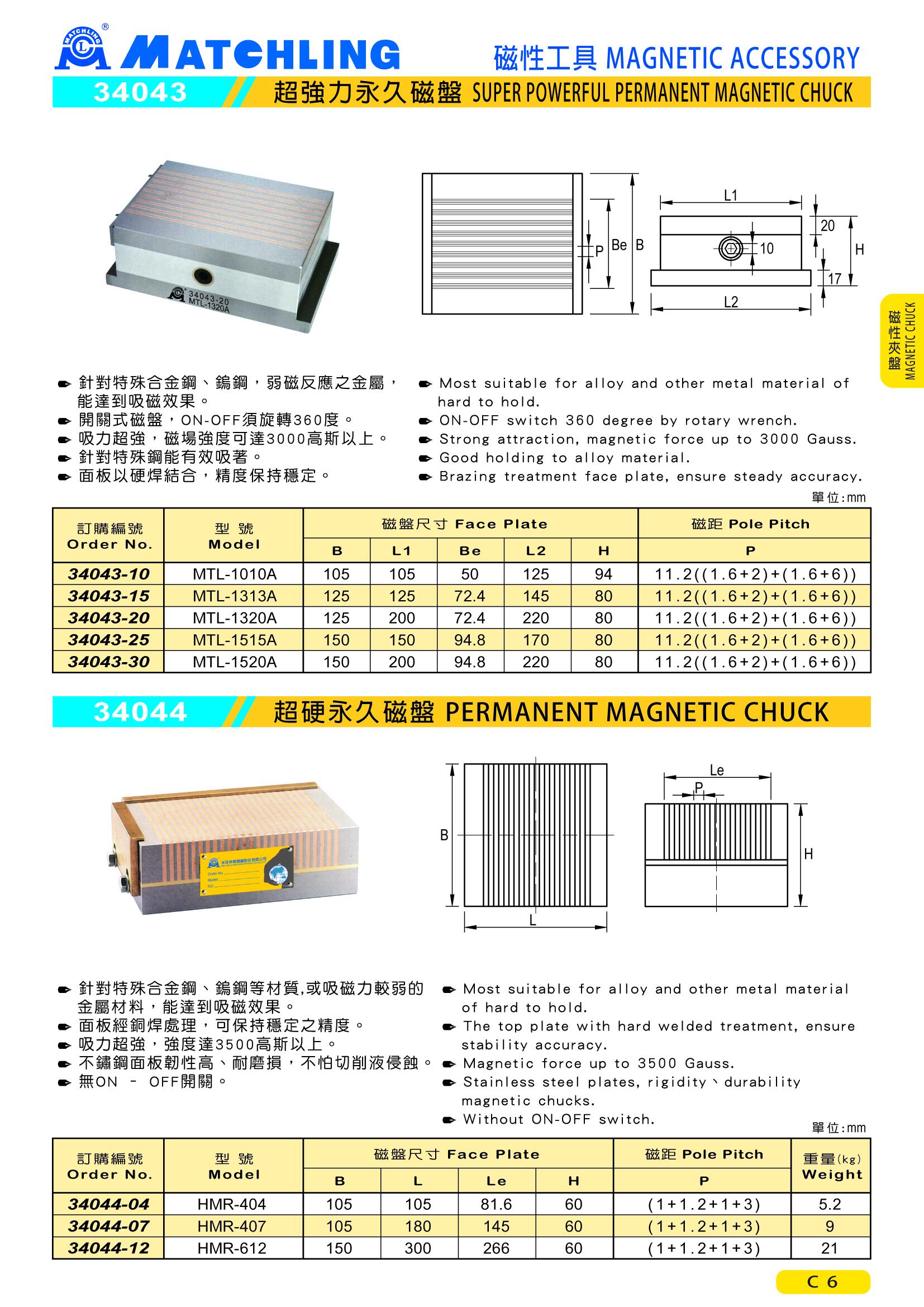

34043 SUPER POWERFUL PERMANENT MAGNETIC CHUCK
● Most suitable for alloy and other metal material of hard to hold.
● ON-OFF switch 360 degree by rotary wrench.
● Strong attraction, magnetic force up to 3000 Gauss.
● Good holding to alloy material.
● Brazing treatment face plate, ensure steady accuracy.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | ||||
| B | L1 | Be | L2 | H | P | ||
| 34043-10 | MTL-1010A | 105 | 105 | 50 | 125 | 94 | 11.2 ((1.6+2) + (1.6+6)) |
| 34043-15 | MTL-1313A | 125 | 125 | 72.4 | 145 | 80 | 11.2 ((1.6+2) + (1.6+6)) |
| 34043-20 | MTL-1320A | 125 | 200 | 72.4 | 220 | 80 | 11.2 ((1.6+2) + (1.6+6)) |
| 34043-25 | MTL-1515A | 150 | 150 | 94.8 | 170 | 80 | 11.2 ((1.6+2) + (1.6+6)) |
| 34043-30 | MTL-1520A | 150 | 200 | 94.8 | 220 | 80 | 11.2 ((1.6+2) + (1.6+6)) |
