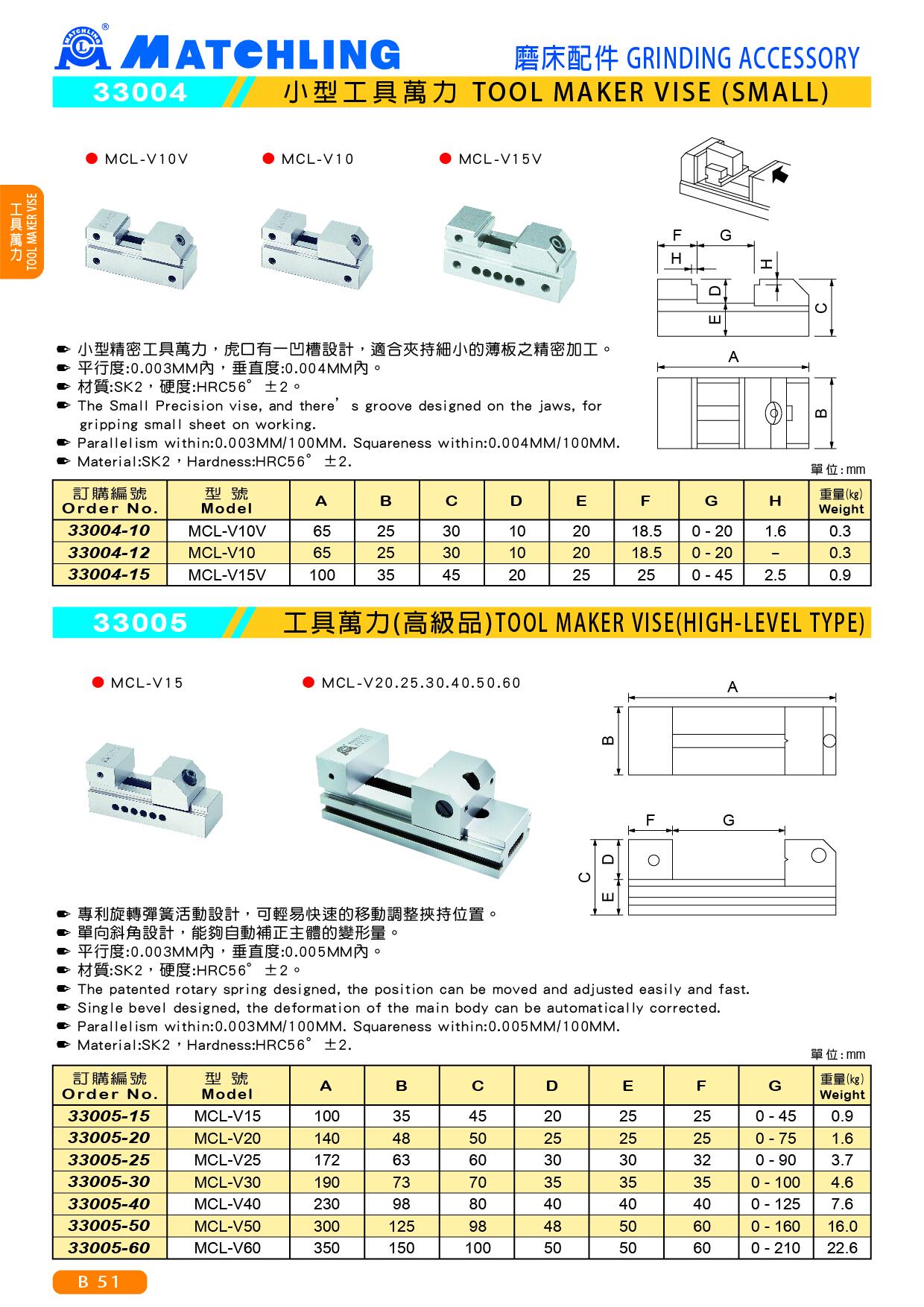

33004 TOOL MAKER VISE (SMALL)
● The Small Precision vise, and there’s groove designed on the jaws, for gripping small sheet on working.
● Parallelism within:0.003MM/100MM. Squareness within:0.004MM/100MM.
● Material:SK2，Hardness:HRC56°±2.
unit：mm
| Order No | Model | A | B | C | D | E | F | G | H | Weight (kg） |
| 33004-10 | MCL-V10V | 65 | 25 | 30 | 10 | 20 | 18.5 | 0-20 | 1.6 | 0.3 |
| 33004-12 | MCL-V10 | 65 | 25 | 30 | 10 | 20 | 18.5 | 0-20 | - | 0.3 |
| 30004-15 | MCL-V15V | 100 | 35 | 45 | 20 | 25 | 25 | 0-45 | 2.5 | 0.9 |
