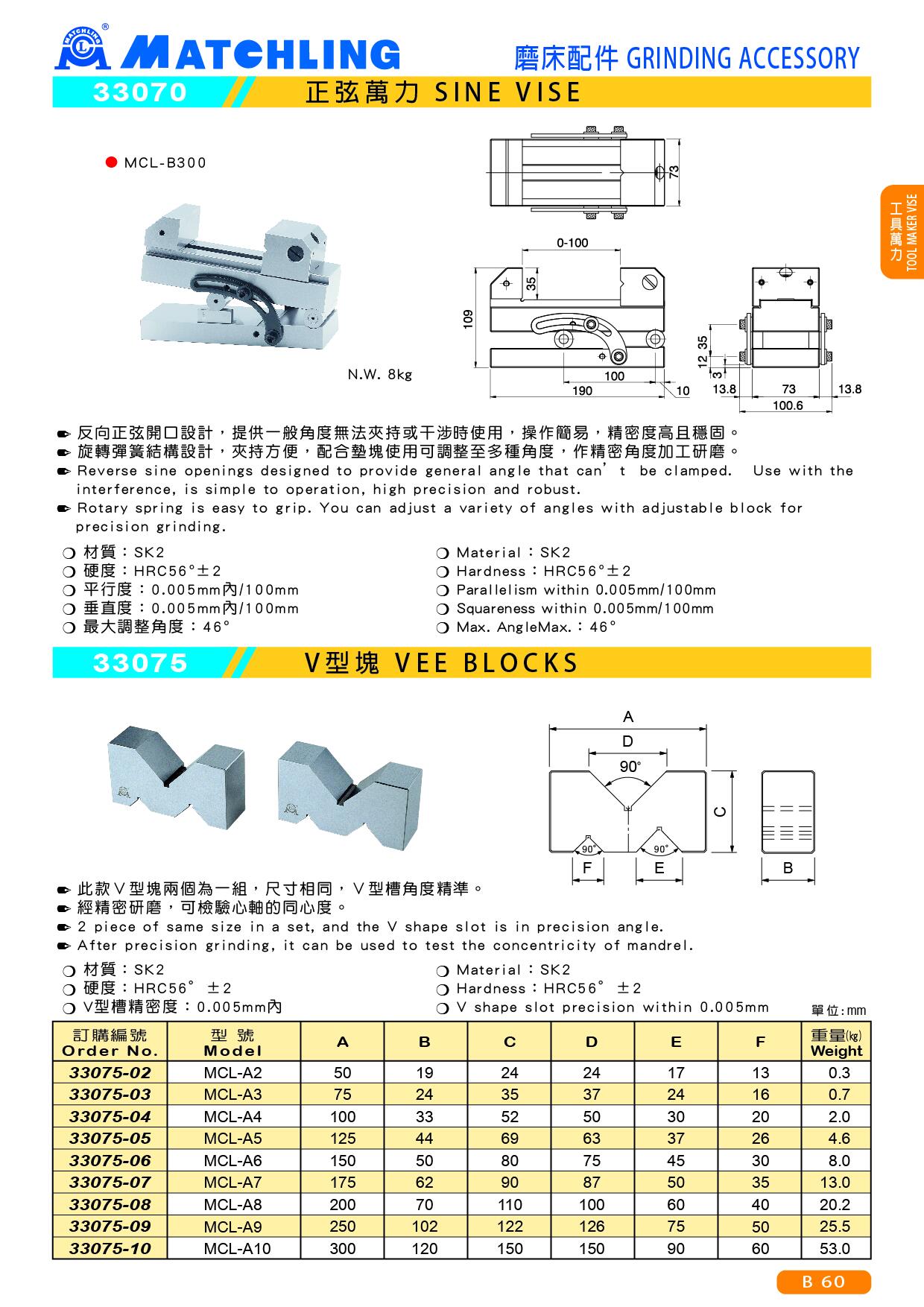

33075 VEE BLOCKS
● 2 piece of same size in a set, and the V shape slot is in precision angle.
● After precision grinding, it can be used to test the concentricity of mandrel.
■ Feature:
● Material：SK2
● Hardness：HRC56°±2
● V shape slot precision within 0.005mm
unit：mm
| Order No | Model | A | B | C | D | E | F | Weight (kg) |
| 33075-02 | MCL-A2 | 50 | 19 | 24 | 24 | 17 | 13 | 0.3 |
| 33075-03 | MCL-A3 | 75 | 24 | 35 | 37 | 24 | 16 | 0.7 |
| 33075-04 | MCL-A4 | 100 | 33 | 52 | 50 | 30 | 20 | 2.0 |
| 33075-05 | MCL-A5 | 125 | 44 | 69 | 63 | 37 | 26 | 4.6 |
| 33075-06 | MCL-A6 | 150 | 50 | 80 | 75 | 45 | 30 | 8.0 |
| 33075-07 | MCL-A7 | 175 | 62 | 90 | 87 | 50 | 35 | 13.0 |
| 33075-08 | MCL-A8 | 200 | 70 | 110 | 100 | 60 | 40 | 20.2 |
| 33075-09 | MCL-A9 | 250 | 102 | 122 | 126 | 75 | 50 | 25.5 |
| 33075-10 | MCL-A10 | 300 | 120 | 150 | 150 | 90 | 60 | 53.0 |
