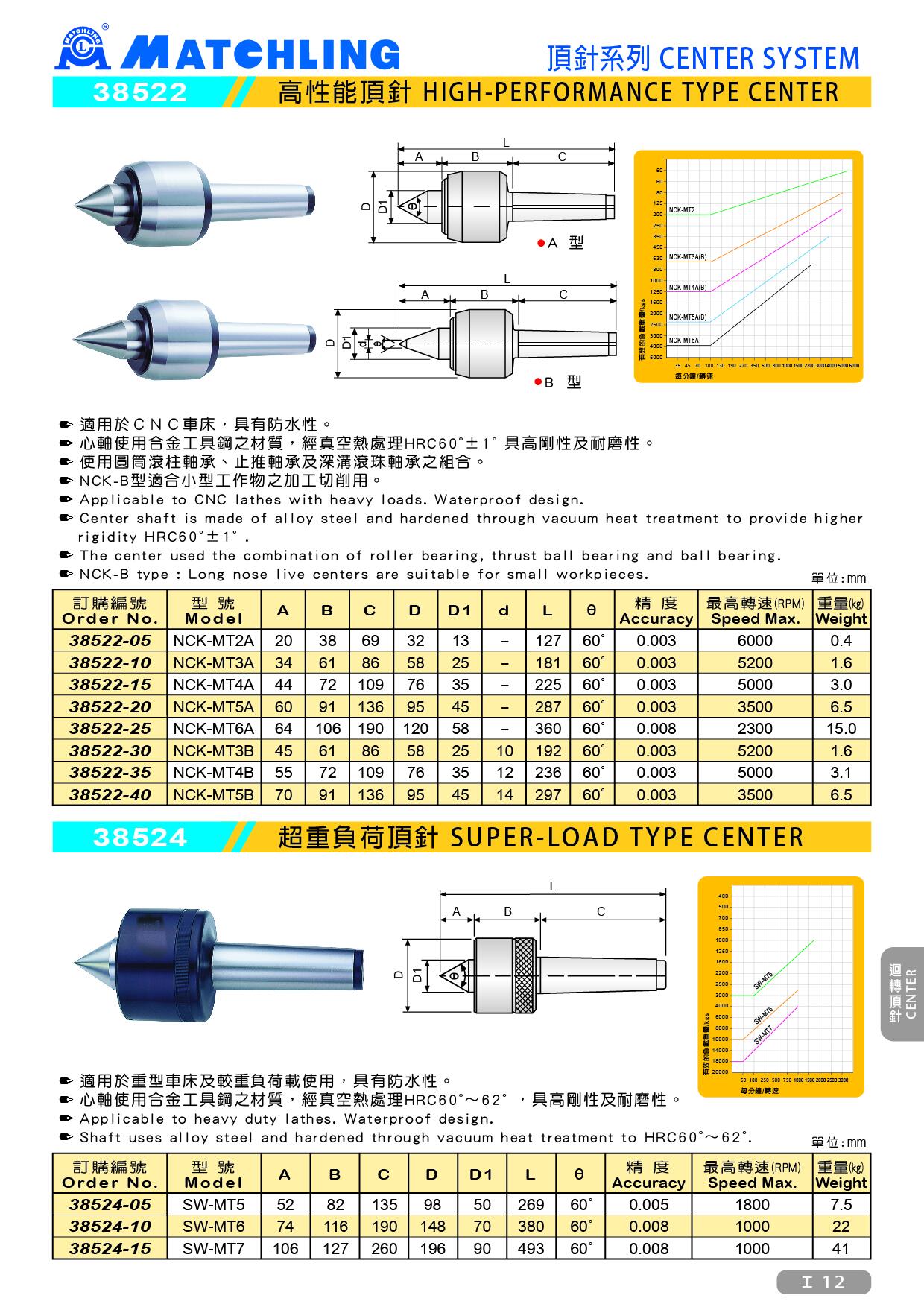

38524 SUPER-LOAD TYPE CENTER
● Applicable to heavy duty lathes. Waterproof design.
● Shaft uses alloy steel and hardened through vacuum heat treatment to HRC60˚～62˚.
unit：mm
| Order No. | Model | A | B | C | D | D1 | L | θ | Accuracy | Speed Max. (RPM) | Weight (kg) |
| 38524-05 | SW-MT5 | 52 | 82 | 135 | 98 | 50 | 269 | 60° | 0.005 | 1800 | 7.5 |
| 38524-10 | SW-MT6 | 74 | 116 | 190 | 148 | 70 | 380 | 60° | 0.008 | 1000 | 22 |
| 38524-15 | SW-MT7 | 106 | 127 | 260 | 196 | 90 | 493 | 60° | 0.008 | 1000 | 41 |
