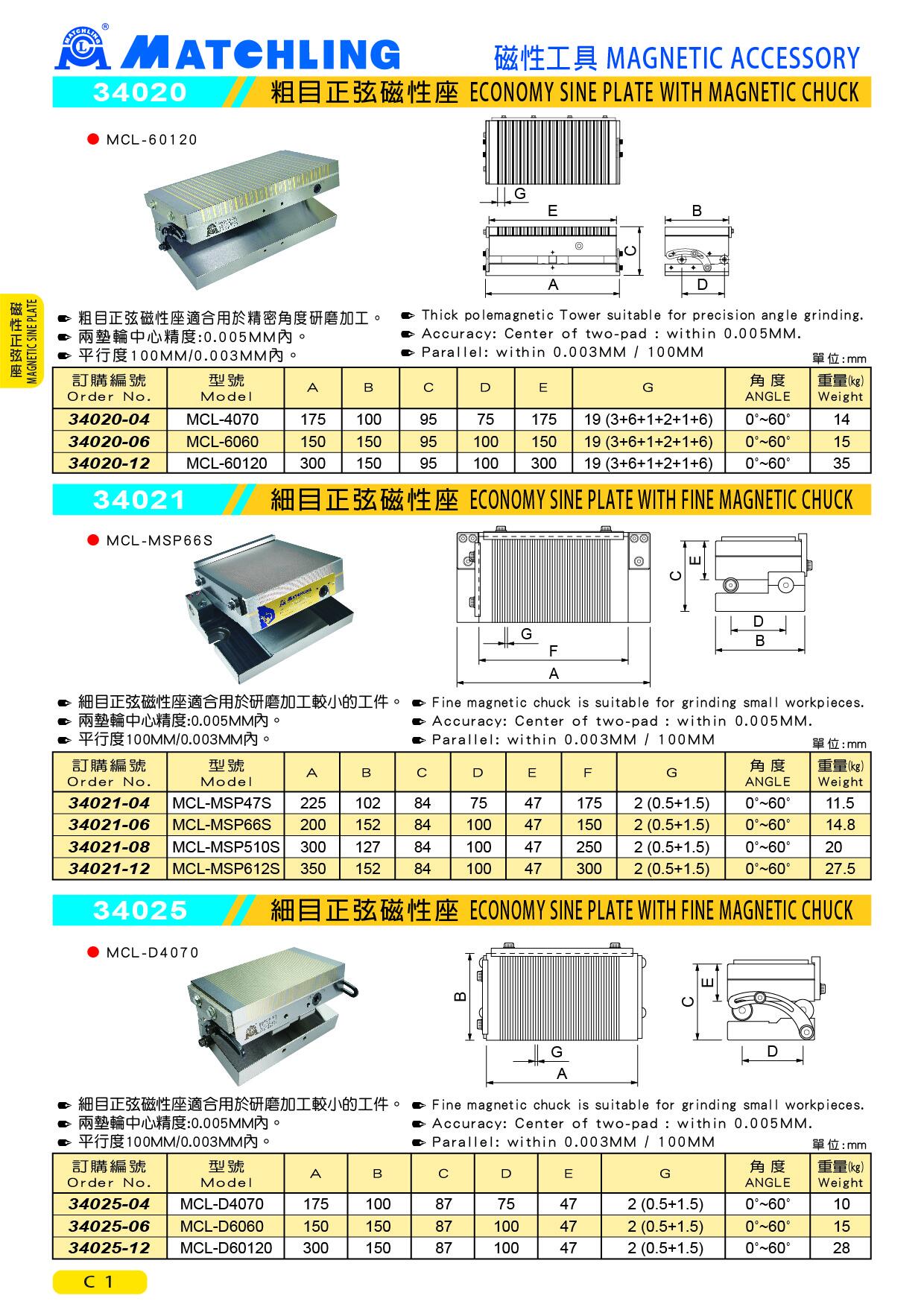

34020 ECONOMY SINE PLATE WITH MAGNETIC CHUCK
● Thick polemagnetic Tower suitable for precision angle grinding.
● Accuracy: Center of two-pad : within 0.005MM.
● Parallel: within 0.003MM / 100MM
unit：mm
| Order no. | Model | A | B | C | D | E | G | Angle | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 34020-04 | MCL-4070 | 175 | 100 | 95 | 75 | 175 | 19 (3+6+1+2+1+6) | 0˚~60˚ | 14 |
| 34020-06 | MCL-6060 | 150 | 150 | 95 | 100 | 150 | 19 (3+6+1+2+1+6) | 0˚~60˚ | 15 |
| 34020-12 | MCL-60120 | 300 | 150 | 95 | 100 | 300 | 19 (3+6+1+2+1+6) | 0˚~60˚ | 35 |
