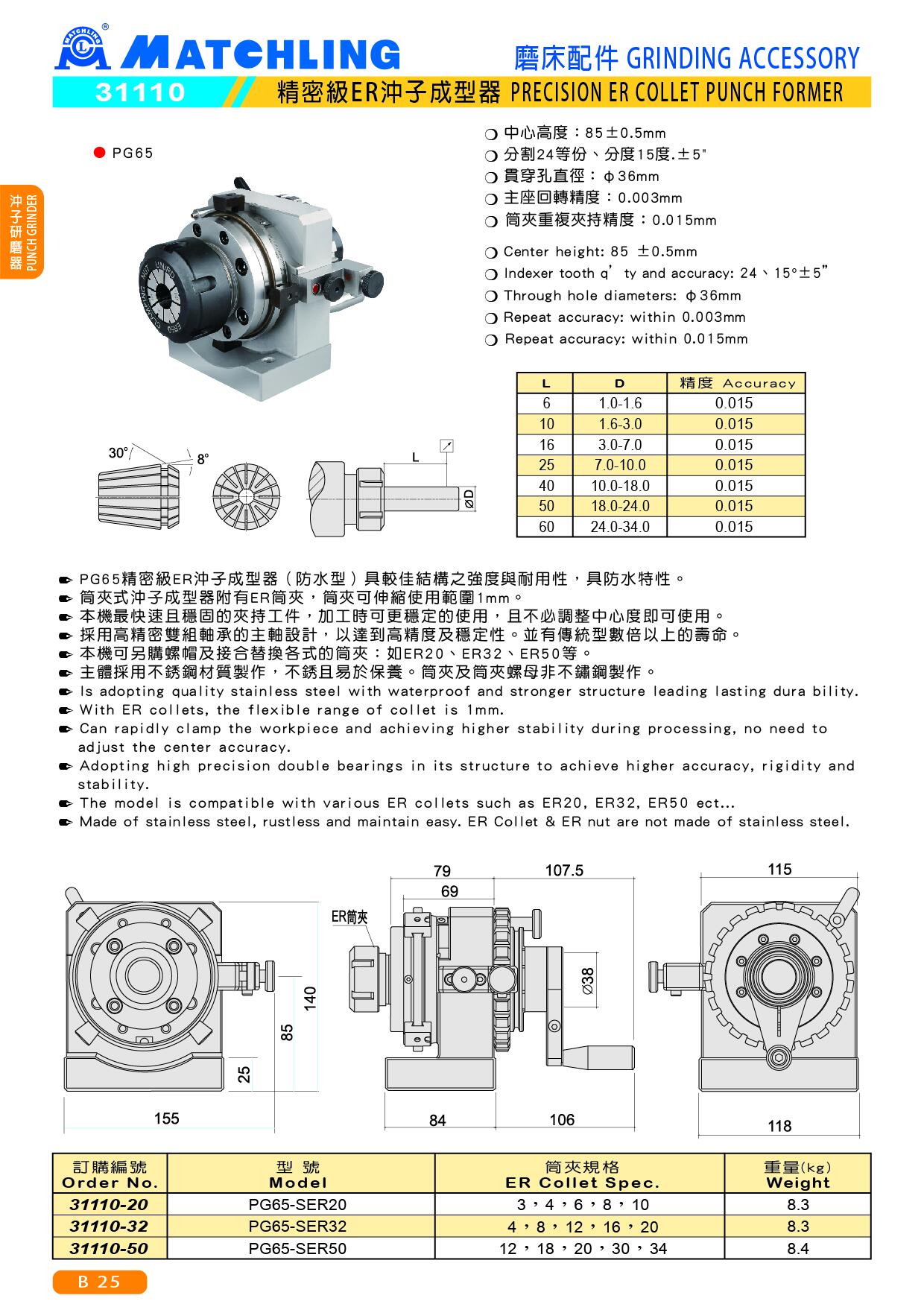

31110 PRECISION ER COLLET PUNCH FORMER
● Is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
● With ER collets, the flexible range of collet is 1mm.
● Capable collet clamping range: Min. Ø2mm, Max. Ø34mm.
● Can rapidly clamp the workpiece and achieving higher stability during processing, no need to adjust the center accuracy.
● Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.
● The model is compatible with various ER collets such as ER20, ER32, ER50 ect...
● ER Collet & ER nut are not made of stainless steel.
■ Specifications:
● Center height: 85 ±0.5mm
● Indexer tooth q’ty and accuracy: 24、15φ±5”
● Through hole diameters: φ36mm
● Repeat accuracy: within 0.003mm
| L | D | Accuracy |
|---|---|---|
| 6 | 1.0-1.6 | 0.01 |
| 10 | 1.6-3.0 | 0.01 |
| 16 | 3.0-7.0 | 0.01 |
| 25 | 7.0-10.0 | 0.01 |
| 40 | 10.0-18.0 | 0.01 |
| 50 | 18.0-24.0 | 0.01 |
| 60 | 24.0-34.0 | 0.01 |
| Order No. | Model | E R Collet Spec・ | Weight（kg） |
| 31110-20 | PG65-SER20 | 2，4，6，8，10 | 8.3 |
| 31110-32 | PG65-SER32 | 4 ， 8 ， 12 ， 16 ， 20 | 8.3 |
| 31110-50 | PG65-SER50 | 12 ， 18 ， 20 ， 30 ， 34 | 8.4 |
