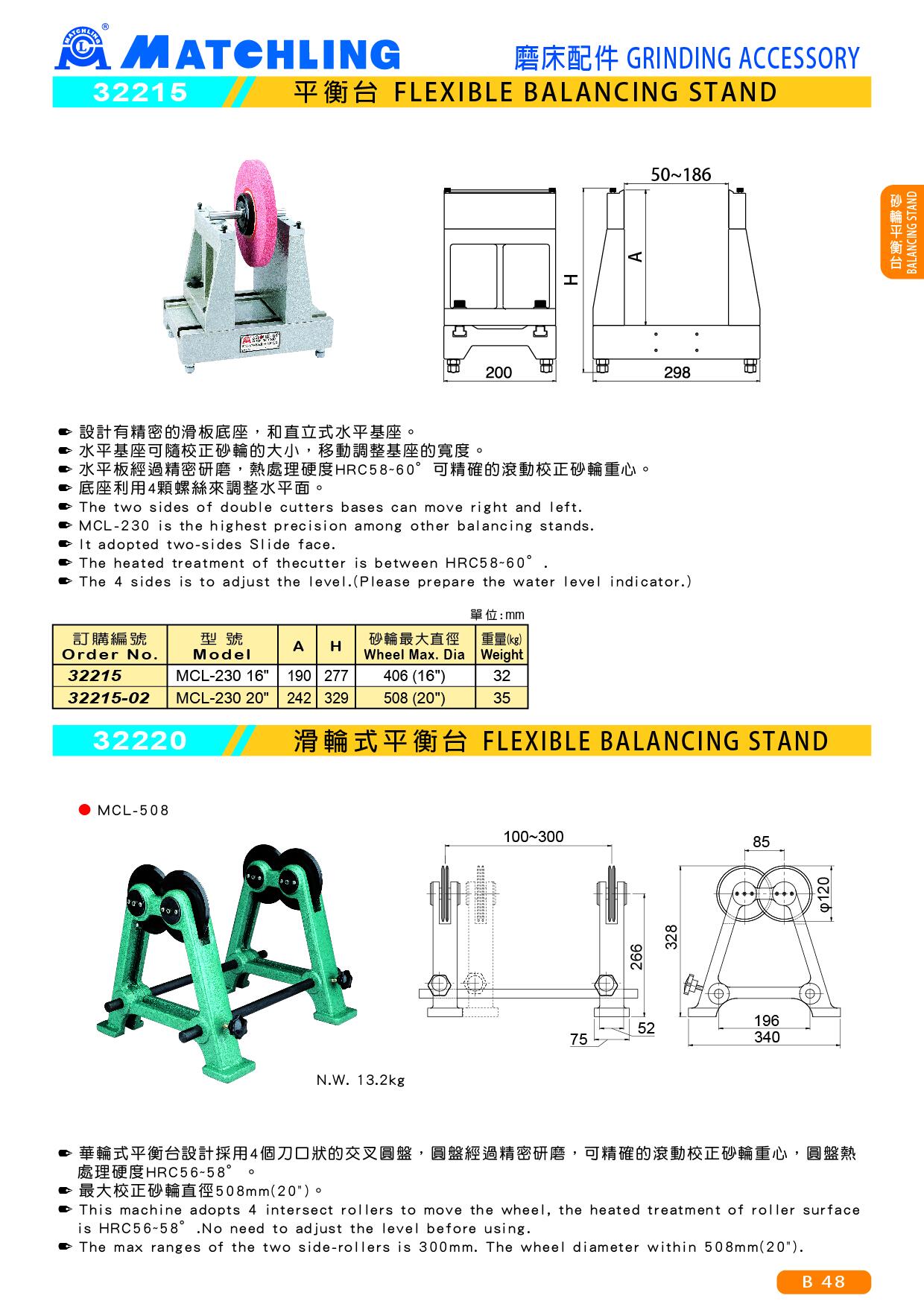

32215 16"/20" FLEXIBLE BALANCING STAND
● The two sides of double cutters bases can move right and left.
● MCL-230 is the highest precision among other balancing stands.
● It adopted two-sides slide face.
● The heated treatment of thecutter is between HRC58~60°.
● The 4 sides is to adjust the level.(Please prepare the water level indicator.)
● Max. wheel diameter allowed φ406mm(16")
● Size:300×200×250mm。
● Weight:32kg
unit：mm
| Order No. | Model | A | H | Wheel Max. Dia | Weight (kg) |
| 32215 | MCL-230 16" | 190 | 277 | 406 (16") | 32 |
| 32215-02 | MCL-230 20” | 242 | 329 | 508 (20") | 35 |
