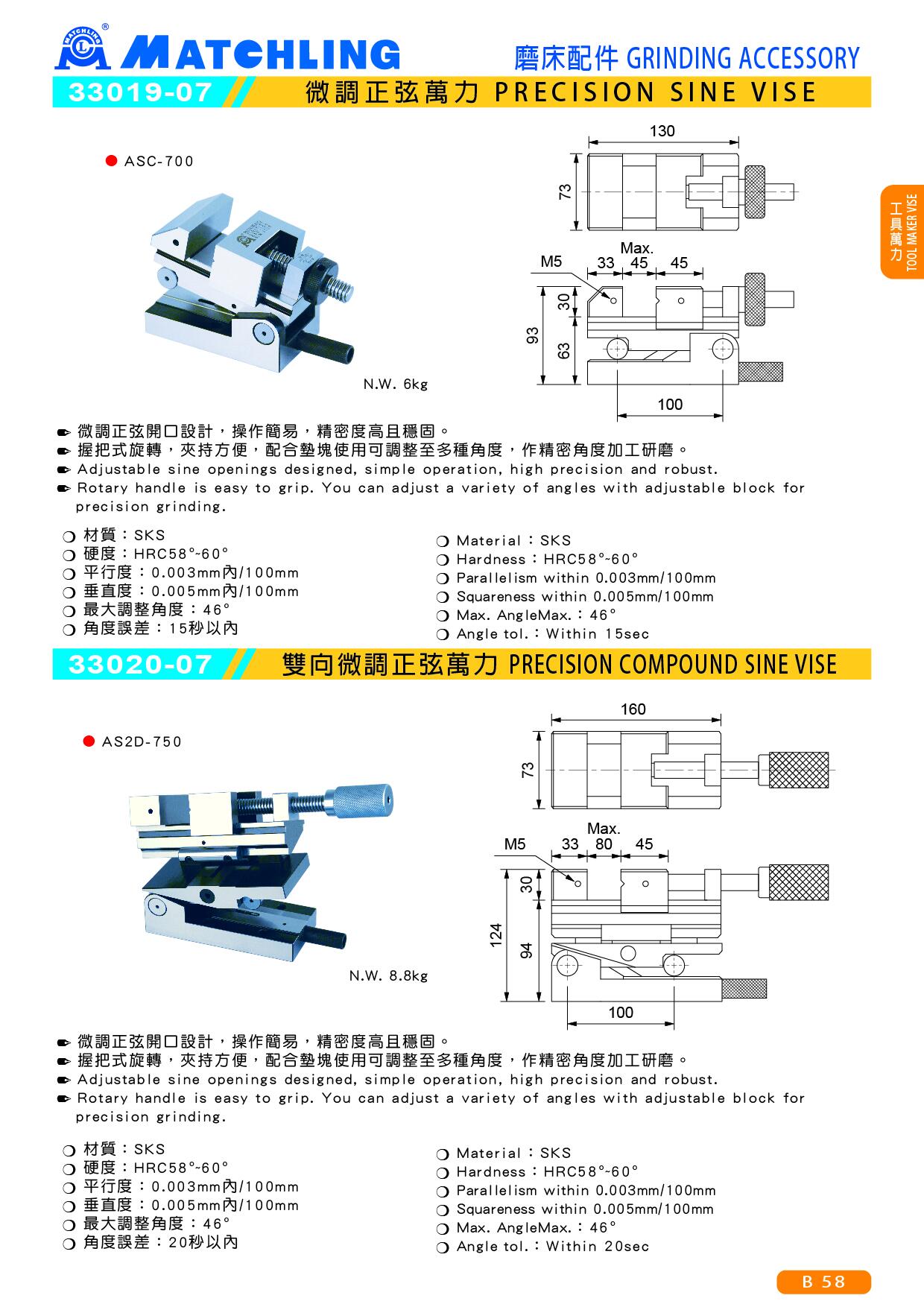

33019-07 PRECISION SINE VISE
● Adjustable sine openings designed, simple operation, high precision and robust.
● Rotary handle is easy to grip. You can adjust a variety of angles with adjustable block for precision grinding.
■ Feature:
● Material：SKS
● Hardness：HRC58°~60°
● Cooling treatment：-185°C
● Parallelism within 0.003mm/100mm
● Squareness within 0.005mm/100mm
● Angle tol.：Within 15sec
unit：mm
| Order No | Model | A | B | C | D | E | F | G | H | I | Max. Angle | Weight (kg) |
| 33019-07 | ASC-700 | 130 | 73 | 93 | 30 | 63 | 33 | 45 | 45 | 100 | 46 | 6 |
