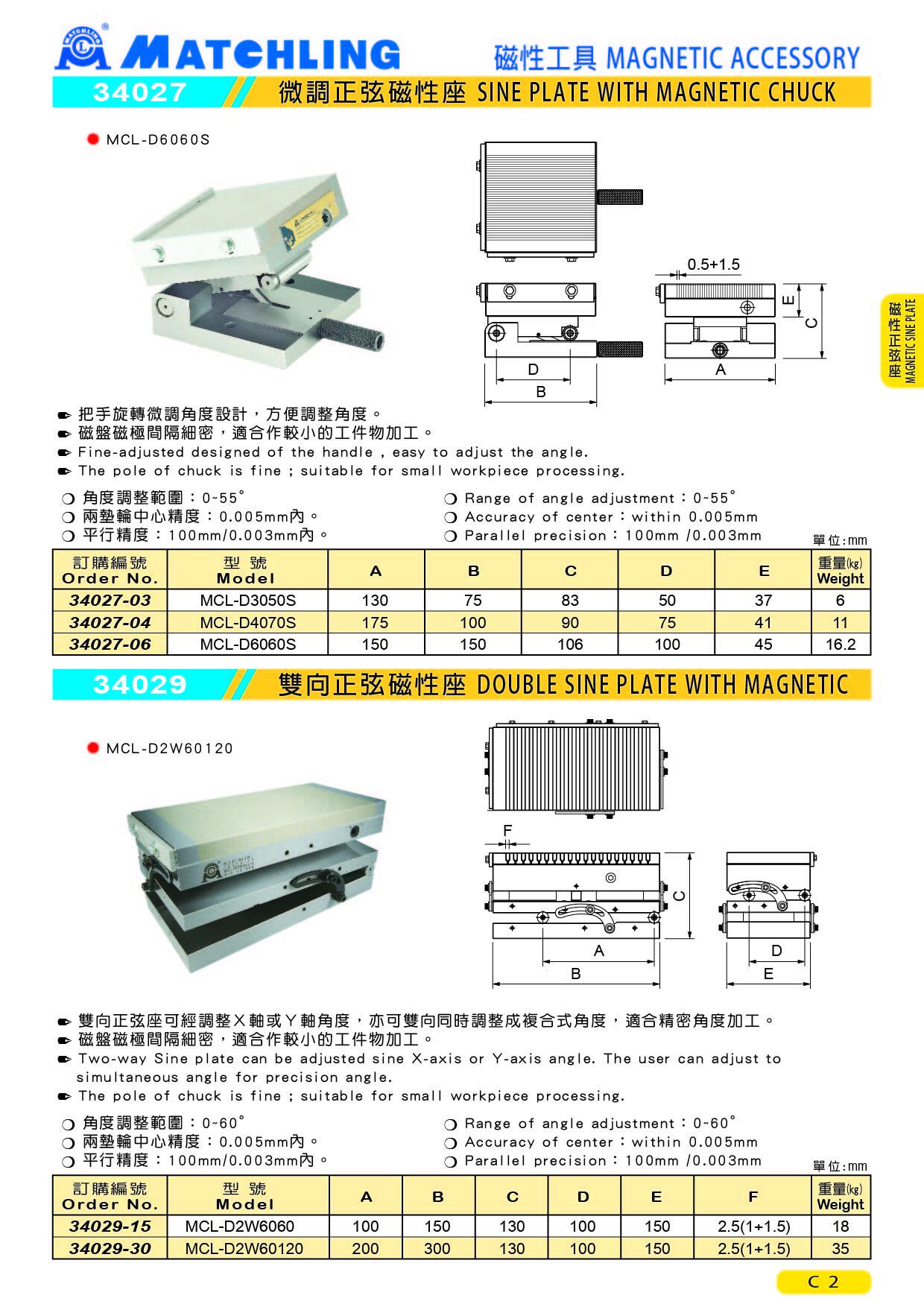

34027 SINE PLATE WITH MAGNETIC CHUCK
● Fine-adjusted designed of the handle , easy to adjust the angle.
● The pole of chuck is fine ; suitable for small workpiece processing.
● Range of angle adjustment：0~55°
● Accuracy of center：within 0.005mm
● Parallel precision：100mm /0.003mm
unit：mm
| Order No. | Model | A | B | C | D | E | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 34027-03 | MCL-D3050S | 130 | 75 | 83 | 50 | 37 | 6 |
| 34027-04 | MCL-D4070S | 175 | 100 | 90 | 75 | 41 | 11 |
| 34027-06 | MCL-D6060S | 150 | 150 | 106 | 100 | 45 | 16.2 |
