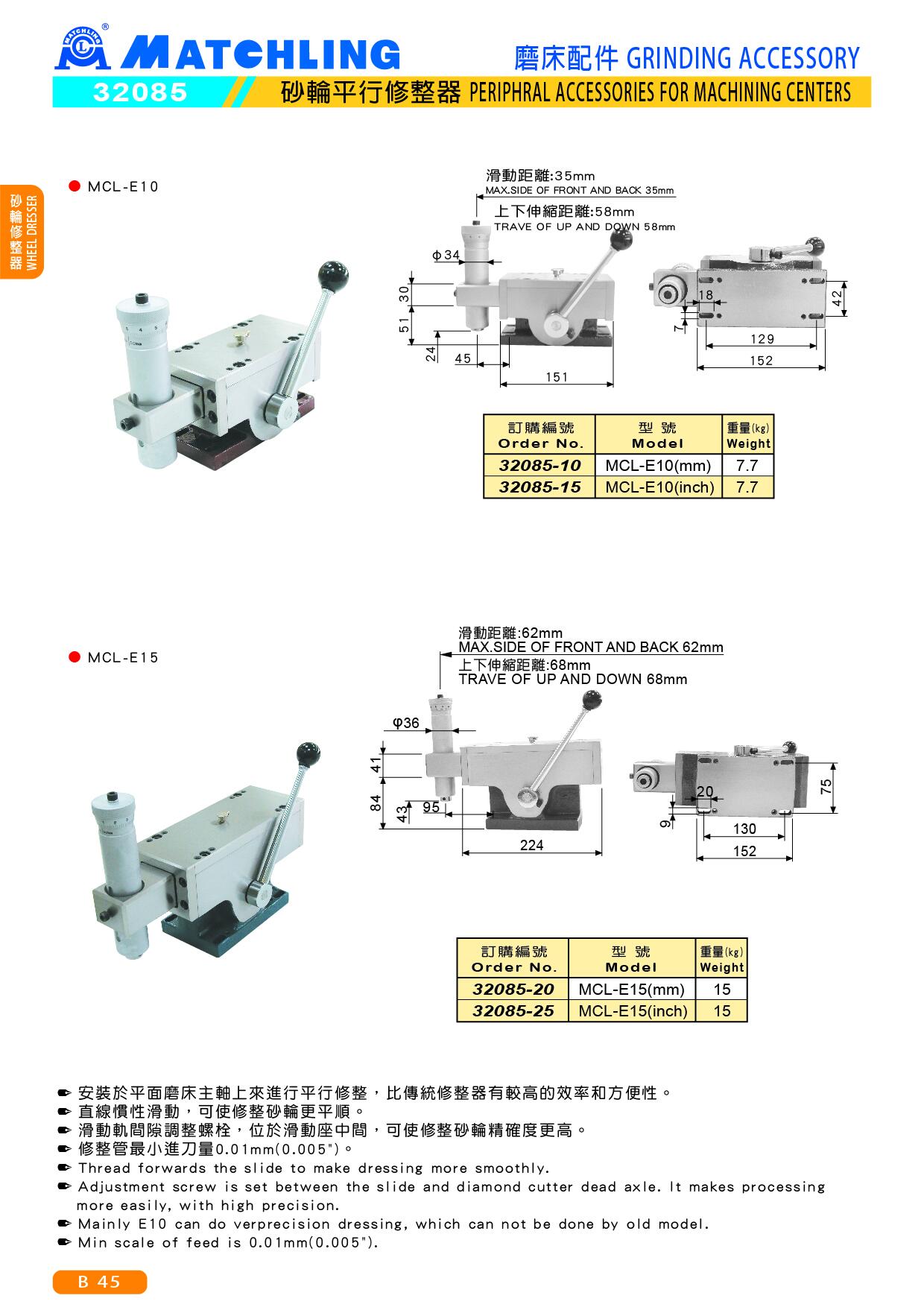

32085 Peripheral Accessories For Machining Centers
● Thread forwards the slide to make dressing more smoothly.
● Adjustment screw is set between the slide and diamond cutter dead axle. It makes processing more easily, with high precision.
● Mainly E10 can do verprecision dressing, which can not be done by old model.
● Min scale of feed is 0.01mm(0.0005").
unit：mm
| Order No | Model | Weight (kg) |
|---|---|---|
| 32085-10 | MCL-E10 (mm) | 7.7 |
| 32085-15 | MCL-E10 (inch) | 7.7 |
unit：mm
| Order No | Model | Weight (kg) |
|---|---|---|
| 32085-20 | MCL-E15 (mm) | 15 |
| 32085-25 | MCL-E15 (inch) | 15 |
