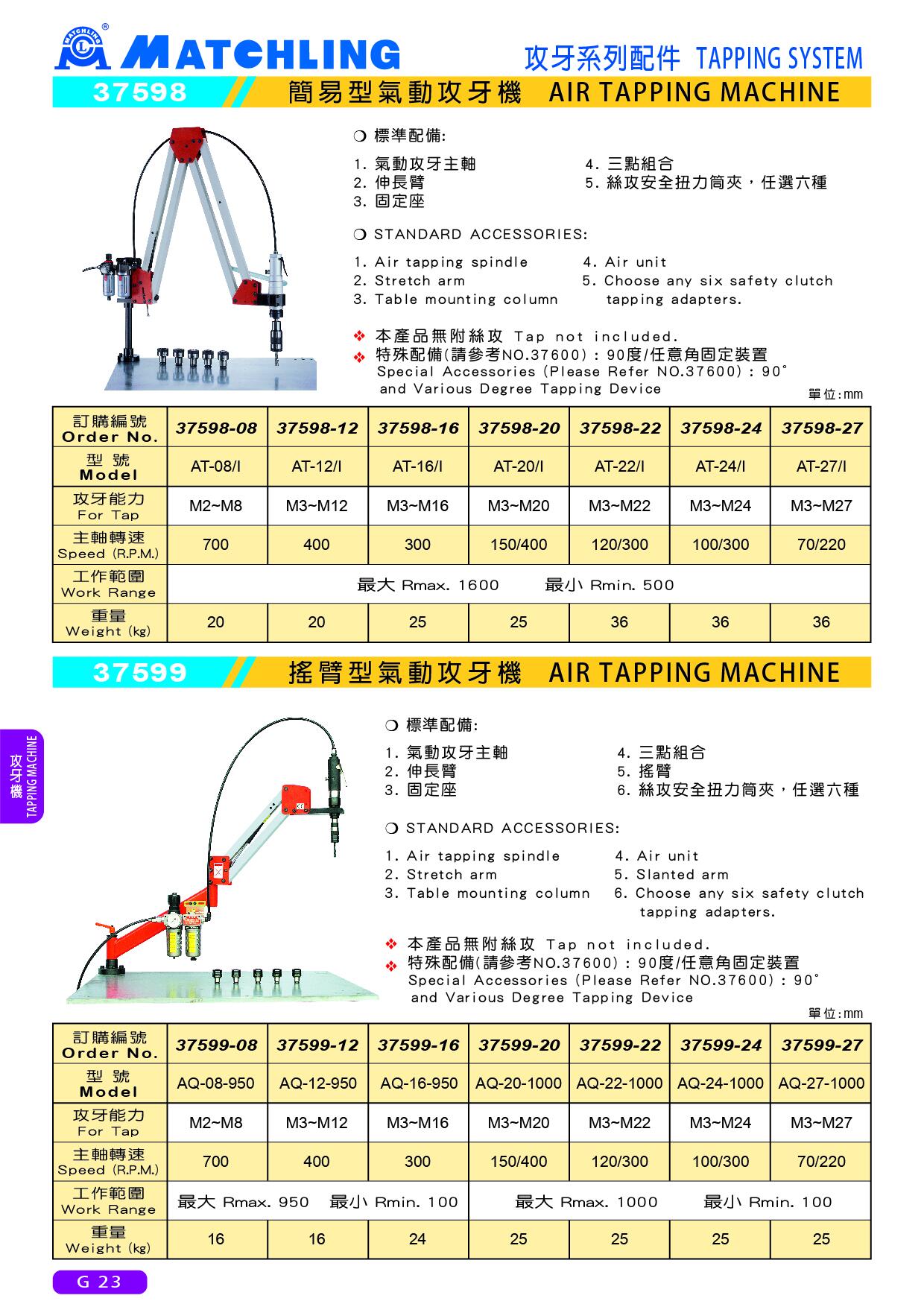

37599 AIR TAPPING MACHINE
● STANDARD ACCESSORIES:
1. Air tapping spindle
2. Stretch arm
3. Table mounting column
4. Air unit
5. Choose any six safety clutch tapping adapters
6. Slanted arm
● Tap not included.
unit：mm
| Order No. | 37599-08 | 37599-12 | 37599-16 | 37599-20 | 37599-22 | 37599-24 | 37599-27 |
| Model | AQ-08-950 | AQ-12-950 | AQ-16-950 | AQ-20-1000 | AQ-22-1000 | AQ-24-1000 | AQ-27-1000 |
| For Tap | M2-M8 | M3-M12 | M3-M16 | M3-M20 | M3-M22 | M3-M24 | M3~M27 |
| Speed (R.P.M.) | 700 | 400 | 300 | 150/400 | 120/300 | 100/300 | 70/220 |
| Work Range | Rmax. 950 Rmin. 100 | Rmax. 1000 Rmin. 100 | |||||
| Weight (kg) | 16 | 16 | 24 | 25 | 25 | 25 | 25 |
