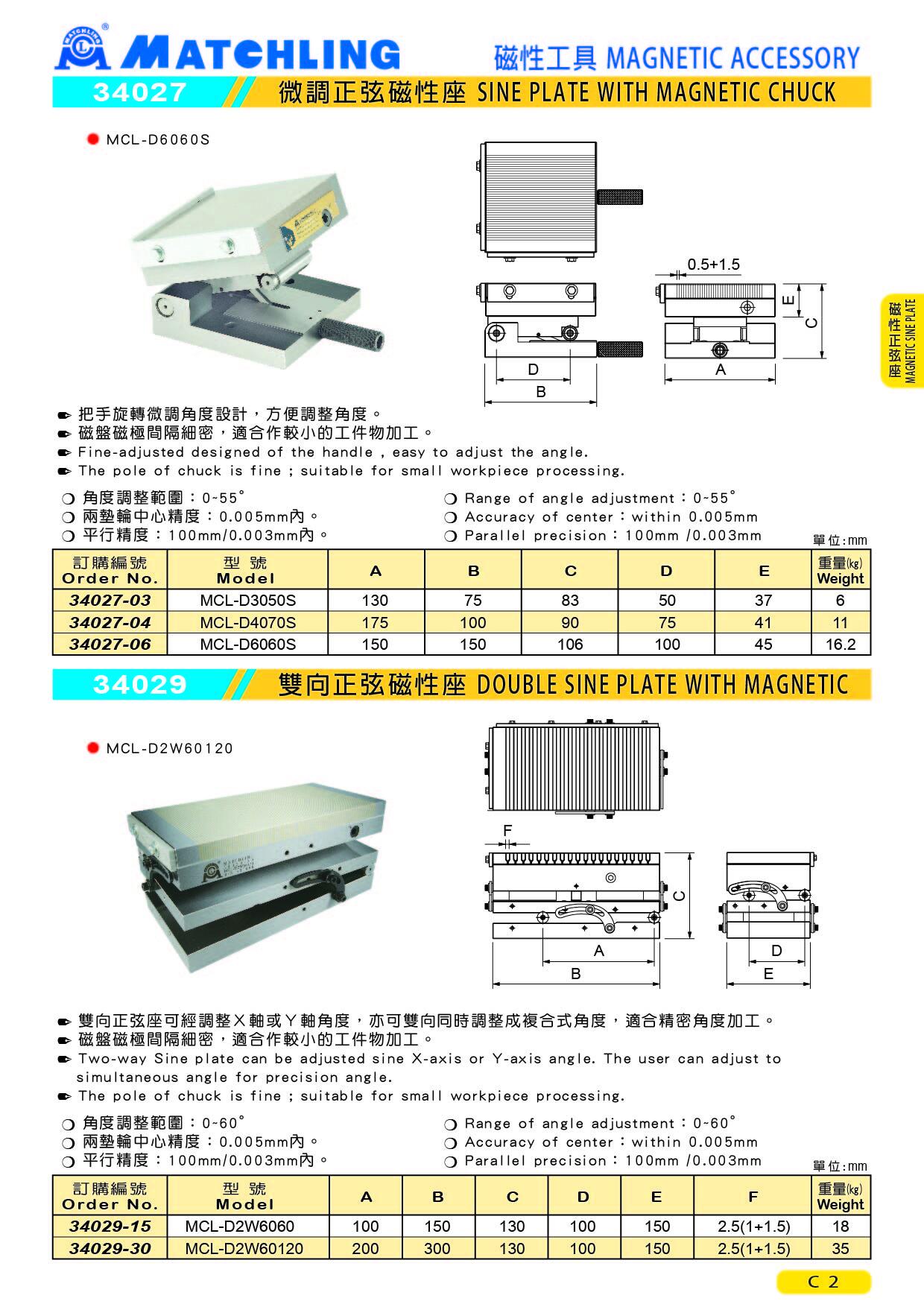

34029 DOUBLE SINE PLATE WITH MAGNETIC
● Two-way Sine plate can be adjusted sine X-axis or Y-axis angle. The user can adjust to simultaneous angle for precision angle.
● The pole of chuck is fine ; suitable for small workpiece processing.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100mm /0.003mm
unit：mm
| Order No. | Model | A | B | C | D | E | F | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 34029-15 | MCL-D2W6060 | 100 | 150 | 130 | 100 | 150 | 2.5 (1+1.5) | 18 |
| 34029-30 | MCL-D2W60120 | 200 | 300 | 130 | 100 | 150 | 2.5 (1+1.5) | 35 |
