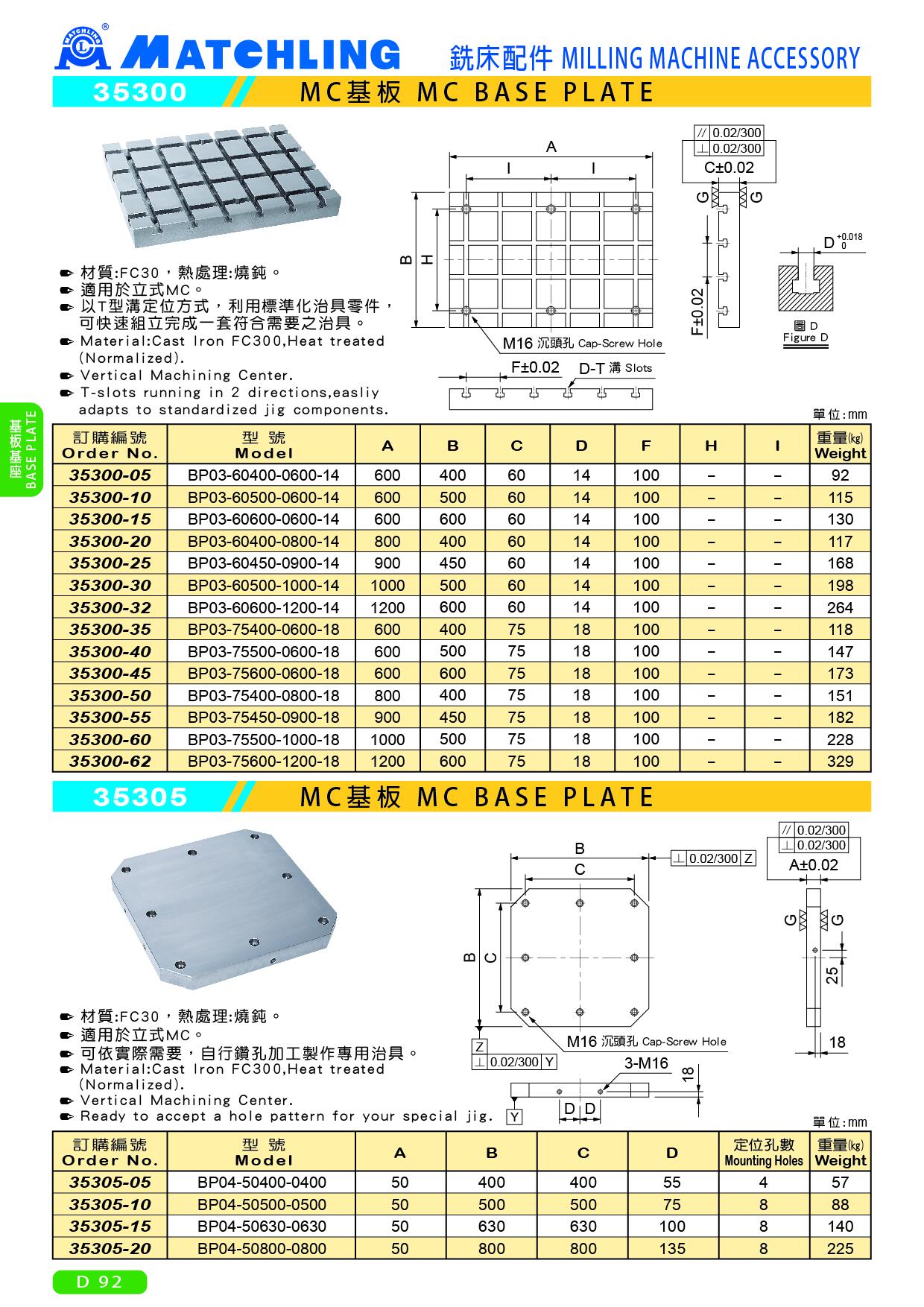

35300 MC BASE PLATE
● Material:Cast Iron FC300,Heat treated(Normalized).
● Vertical Machining Center.
● T-slots running in 2 directions,easliy adapts to standardized jig components.
unit：mm
| Order No. | Model | A | B | C | D | F | H | I | Weight (kg) |
| 35300-05 | BP03-60400-0600-14 | 600 | 400 | 60 | 14 | 100 | - | - | 92 |
| 35300-10 | BP03-60500-0600-14 | 600 | 500 | 60 | 14 | 100 | - | - | 115 |
| 35300-15 | BP03-60600-0600-14 | 600 | 600 | 60 | 14 | 100 | - | - | 130 |
| 35300-20 | BP03-60400-0800-14 | 800 | 400 | 60 | 14 | 100 | - | - | 117 |
| 35300-25 | BP03-60450-0900-14 | 900 | 450 | 60 | 14 | 100 | - | - | 168 |
| 35300-30 | BP03-60500-1000-14 | 1000 | 500 | 60 | 14 | 100 | - | - | 198 |
| 35300-32 | BP03-60600-1200-14 | 1200 | 600 | 60 | 14 | 100 | - | - | 264 |
| 35300-35 | BP03-75400-0600-18 | 600 | 400 | 75 | 18 | 100 | - | - | 118 |
| 35300-40 | BP03-75500-0600-18 | 600 | 500 | 75 | 18 | 100 | - | - | 147 |
| 35300-45 | BP03-75600-0600-18 | 600 | 600 | 75 | 18 | 100 | - | - | 173 |
| 35300-50 | BP03-75400-0800-18 | 800 | 400 | 75 | 18 | 100 | - | - | 151 |
| 35300-55 | BP03-75450-0900-18 | 900 | 450 | 75 | 18 | 100 | - | - | 182 |
| 35300-60 | BP03-75500-1000-18 | 1000 | 500 | 75 | 18 | 100 | - | - | 228 |
| 35300-62 | BP03-75600-1200-18 | 1200 | 600 | 75 | 18 | 100 | - | - | 329 |
