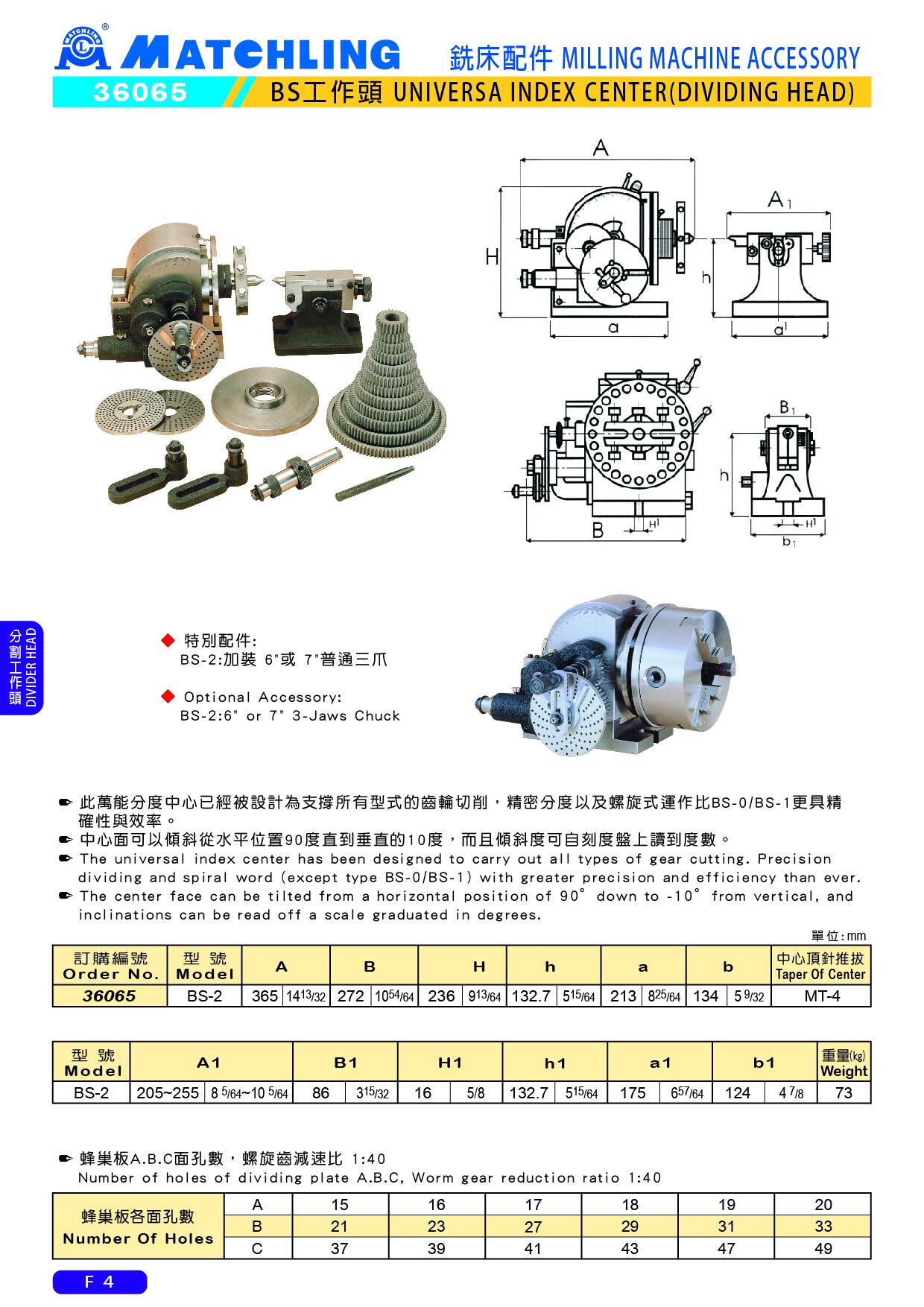

36065 UNIVERSAL INDEX CENTER(DIVIDING HEAD)
● The universal index center has been designed to carry out all types of gear cutting. Precision.
dividing and spiral word (except type BS-0/BS-1) with greater precision and efficiency than ever.
● The center face can be tilted from a horizontal position of 90 down to 10 from vertical, andinclinations can be read off a scale graduated in degrees.
unit：mm
| Order No. | Model | A | B | H | h | a | b | Taper Of Center | ||||||
| 36065 | BS-2 | 365 | 1413/32 | 272 | 1054/64 | 236 | 913/64 | 132.7 | 515/64 | 213 | 825/64 | 134 | 59/32 | MT-4 |
unit：mm
| Model | A1 | B1 | H1 | h1 | a1 | b1 | Weight (kg) | ||||||
| BS-2 | 205~255 | 85/64~105/64 | 86 | 315/32 | 16 | 5/8 | 132.7 | 515/64 | 175 | 657/64 | 124 | 47/8 | 73 |
•Number of holes of dividing plate A.B.C, Worm gear reduction ratio 1:40
| Number Of Holes | A | 15 | 16 | 17 | 18 | 19 | 20 |
| B | 21 | 23 | 27 | 29 | 31 | 33 | |
| C | 37 | 39 | 41 | 43 | 47 | 49 |
