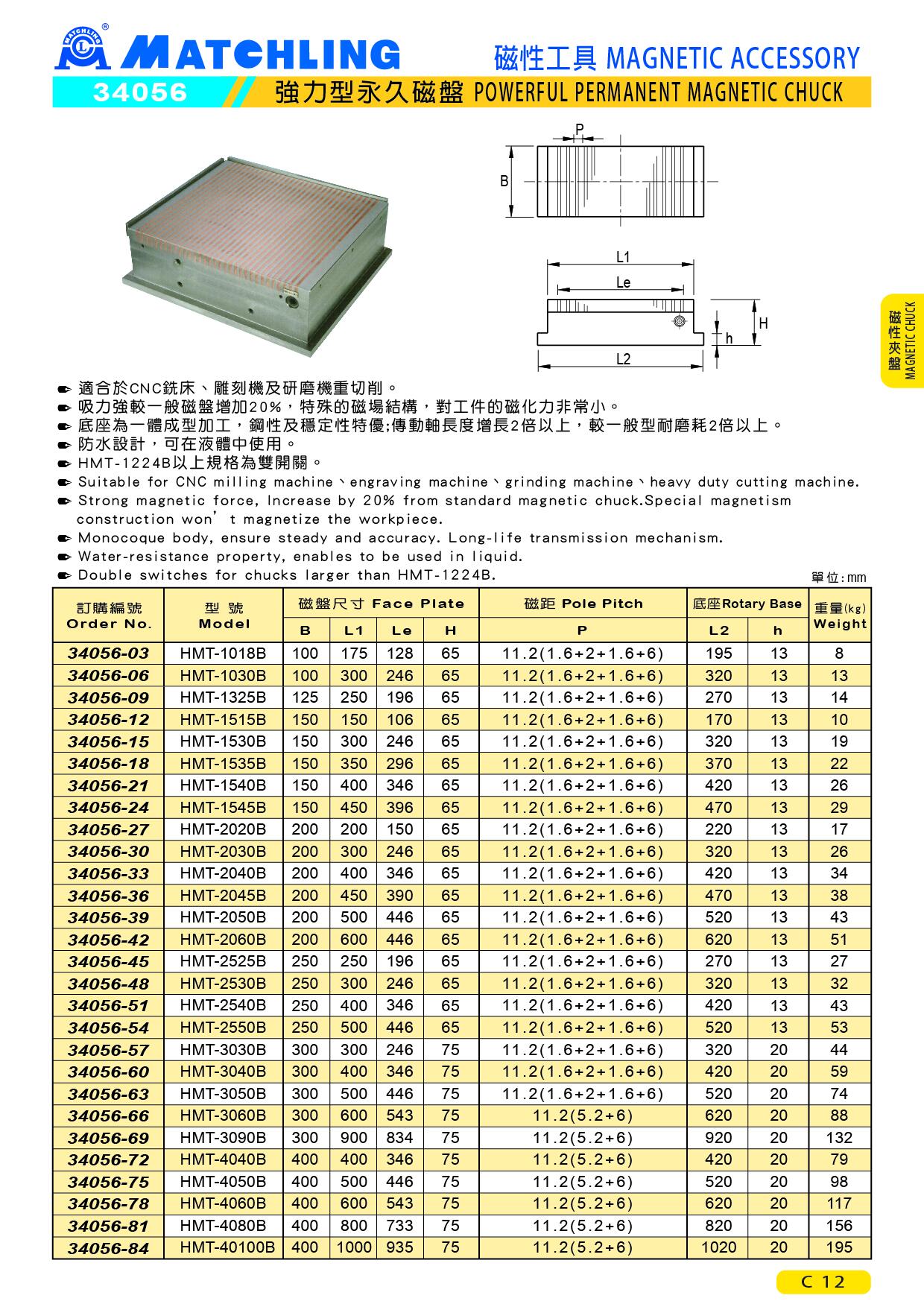

34056 POWERFUL PERMANENT MAGNETIC CHUCK

Description
Specifications

● Suitable for CNC milling machine、engraving machine、grinding machine、heavy duty cutting machine.
● Strong magnetic force, Increase by 20% from standard magnetic chuck.Special magnetism construction won’t magnetize the workpiece.
● Monocoque body, ensure steady and accuracy. Long-life transmission mechanism.
● Water-resistance property, enables to be used in liquid.
● Double switches for chucks larger than HMT-1325B.

unit：mm

Order No.	Model	Face Plate				Pole Pitch	Rotary Base		Weight (kg)
Order No.	Model	B	L1	Le	H	P	L2	h	Weight (kg)
34056-03	HMT-1018B	100	175	128	65	11.2(1.6 + 2 + 1.6 + 6)	195	13	8
34056-06	HMT-1030B	100	300	246	65	11.2(1.6 + 2 + 1.6 + 6)	320	13	13
34056-09	HMT-1325B	125	250	196	65	11.2(1.6 + 2 + 1.6 + 6)	270	13	14
34056-12	HMT-1515B	150	150	26	65	11.2(1.6 + 2 + 1.6 + 6)	170	13	10
34056-15	HMT-1530B	150	300	246	65	11.2(1.6 + 2 + 1.6 + 6)	320	13	19
34056-18	HMT-1535B	150	350	296	65	11.2(1.6 + 2 + 1.6 + 6)	370	13	22
34056-21	HMT-1540B	150	400	346	65	11.2(1.6 + 2 + 1.6 + 6)	420	13	26
34056-24	HMT-1545B	150	450	396	65	11.2(1.6 + 2 + 1.6 + 6)	470	13	29
34056-27	HMT-2020B	200	200	150	65	11.2(1.6 + 2 + 1.6 + 6)	220	13	17
34056-30	HMT-2030B	200	300	246	65	11.2(1.6 + 2 + 1.6 + 6)	320	13	26
34056-33	HMT-2040B	200	400	346	65	11.2(1.6 + 2 + 1.6 + 6)	420	13	34
34056-36	HMT-2045B	200	450	390	65	11.2(1.6 + 2 + 1.6 + 6)	470	13	38
34056-39	HMT-2050B	200	500	446	65	11.2(1.6 + 2 + 1.6 + 6)	520	13	43
34056-42	HMT-2060B	200	600	446	65	11.2(1.6 + 2 + 1.6 + 6)	620	13	51
34056-45	HMT-2525B	250	250	196	65	11.2(1.6 + 2 + 1.6 + 6)	270	13	27
34056-48	HMT-2530B	250	300	246	65	11.2(1.6 + 2 + 1.6 + 6)	320	13	32
34056-51	HMT-2540B	250	400	346	65	11.2(1.6 + 2 + 1.6 + 6)	420	13	43
34056-54	HMT-2550B	250	500	446	65	11.2(1.6 + 2 + 1.6 + 6)	520	13	53
34056-57	HMT-3030B	300	300	246	75	11.2(1.6 + 2 + 1.6 + 6)	320	20	44
34056-60	HMT-3040B	300	400	346	75	11.2(1.6 + 2 + 1.6 + 6)	420	20	59
34056-63	HMT-3050B	300	500	446	75	11.2(1.6 + 2 + 1.6 + 6)	520	20	74
34056-66	HMT-3060B	300	600	543	75	11.2(1.6 + 2 + 1.6 + 6)	620	20	88
34056-69	HMT-3090B	300	900	834	75	11.2(1.6 + 2 + 1.6 + 6)	920	20	132
34056-72	HMT-4040B	400	400	346	75	11.2(1.6 + 2 + 1.6 + 6)	420	20	79
34056-75	HMT-4050B	400	500	446	75	11.2(1.6 + 2 + 1.6 + 6)	520	20	98
34056-78	HMT-4060B	400	600	543	75	11.2(1.6 + 2 + 1.6 + 6)	620	20	117
34056-81	HMT-4080B	400	800	755.6	75	11.2(1.6 + 2 + 1.6 + 6)	820	20	156
34056-84	HMT-40100B	400	1000	935	75	11.2(1.6 + 2 + 1.6 + 6)	1020	20	195
