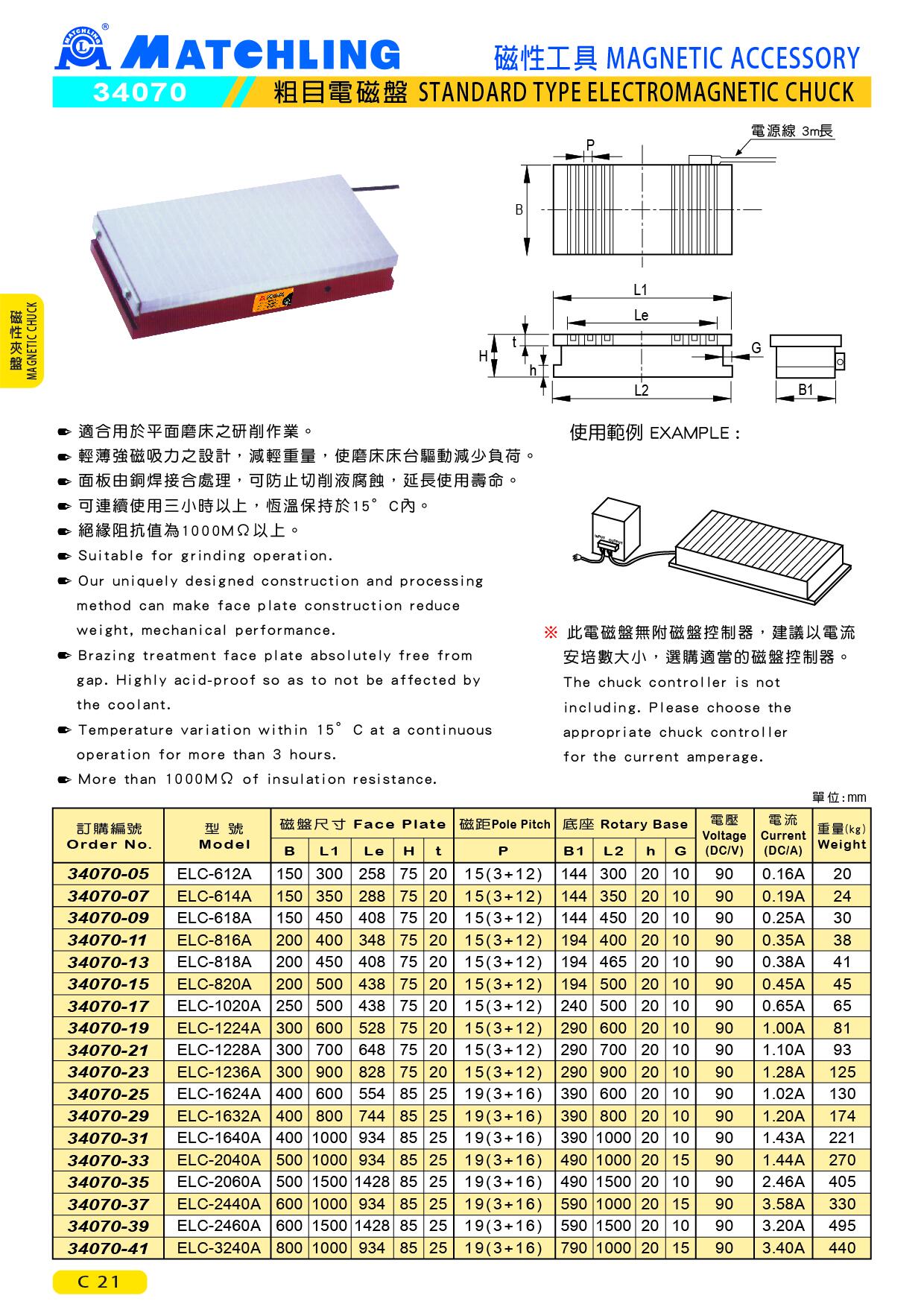

34070 Standard Type Electromagnetic Chuck
● Suitable for grinding operation.
● Our uniquely designed construction and processing method can make face plate construction reduce weight, mechanical performance.
● Brazing treatment face plate absolutely free from gap. Highly acid-proof so as to not be affected by the coolant.
● Temperature variation within 15° C at a continuous operation for more than 3 hours.
● More than 1000MΩ of insulation resistance.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | Rotary Base | Voltage (DC/V) | Current (DC/A) | Weight (kg) | |||||||
| B | L1 | Le | H | t | P | B1 | L2 | h | G | |||||
| 34070-05 | ELC-612A | 150 | 300 | 258 | 75 | 20 | 15(3+12) | 144 | 300 | 20 | 10 | 90 | 0.16A | 20 |
| 34070-07 | ELC-614A | 150 | 350 | 288 | 75 | 20 | 15(3+12) | 144 | 350 | 20 | 10 | 90 | 0.19A | 24 |
| 34070-09 | ELC-618A | 150 | 450 | 408 | 75 | 20 | 15(3+12) | 144 | 450 | 20 | 10 | 90 | 0.25A | 30 |
| 34070-11 | ELC-816A | 200 | 400 | 348 | 75 | 20 | 15(3+12) | 194 | 400 | 20 | 10 | 90 | 0.35A | 38 |
| 34070-13 | ELC-818A | 200 | 450 | 408 | 75 | 20 | 15(3+12) | 194 | 465 | 20 | 10 | 90 | 0.38A | 41 |
| 34070-15 | ELC-820A | 200 | 500 | 438 | 75 | 20 | 15(3+12) | 194 | 500 | 20 | 10 | 90 | 0.45A | 45 |
| 34070-17 | ELC-1020A | 250 | 500 | 438 | 75 | 20 | 15(3+12) | 240 | 500 | 20 | 10 | 90 | 0.65A | 65 |
| 34070-19 | ELC-1224A | 300 | 600 | 528 | 75 | 20 | 15(3+12) | 290 | 600 | 20 | 10 | 90 | 1.00A | 81 |
| 34070-21 | ELC-1228A | 300 | 700 | 648 | 75 | 20 | 15(3+12) | 290 | 700 | 20 | 10 | 90 | 1.10A | 93 |
| 34070-23 | ELC-1236A | 300 | 900 | 828 | 75 | 20 | 15(3+12) | 290 | 900 | 20 | 10 | 90 | 1.28A | 125 |
| 34070-25 | ELC-1624A | 400 | 600 | 554 | 85 | 25 | 19(3+16) | 390 | 600 | 20 | 10 | 90 | 1.02A | 130 |
| 34070-29 | ELC-1632A | 400 | 800 | 744 | 85 | 25 | 19(3+16) | 390 | 800 | 20 | 10 | 90 | 1.20A | 174 |
| 34070-31 | ELC-1640A | 400 | 1000 | 934 | 85 | 25 | 19(3+16) | 390 | 1000 | 20 | 10 | 90 | 1.43A | 221 |
| 34070-33 | ELC-2040A | 500 | 1000 | 934 | 85 | 25 | 19(3+16) | 490 | 1000 | 20 | 15 | 90 | 1.44A | 270 |
| 34070-35 | ELC-2060A | 500 | 1500 | 1428 | 85 | 25 | 19(3+16) | 490 | 1500 | 20 | 10 | 90 | 2.46A | 405 |
| 34070-37 | ELC-2440A | 600 | 1000 | 934 | 85 | 25 | 19(3+16) | 590 | 1000 | 20 | 15 | 90 | 3.58A | 330 |
| 34070-39 | ELC-2460A | 600 | 1500 | 1428 | 85 | 25 | 19(3+16) | 590 | 1500 | 20 | 10 | 90 | 3.20A | 495 |
| 34070-41 | ELC-3240A | 800 | 1000 | 934 | 85 | 25 | 19(3+16) | 790 | 1000 | 20 | 15 | 90 | 3.40A | 440 |
