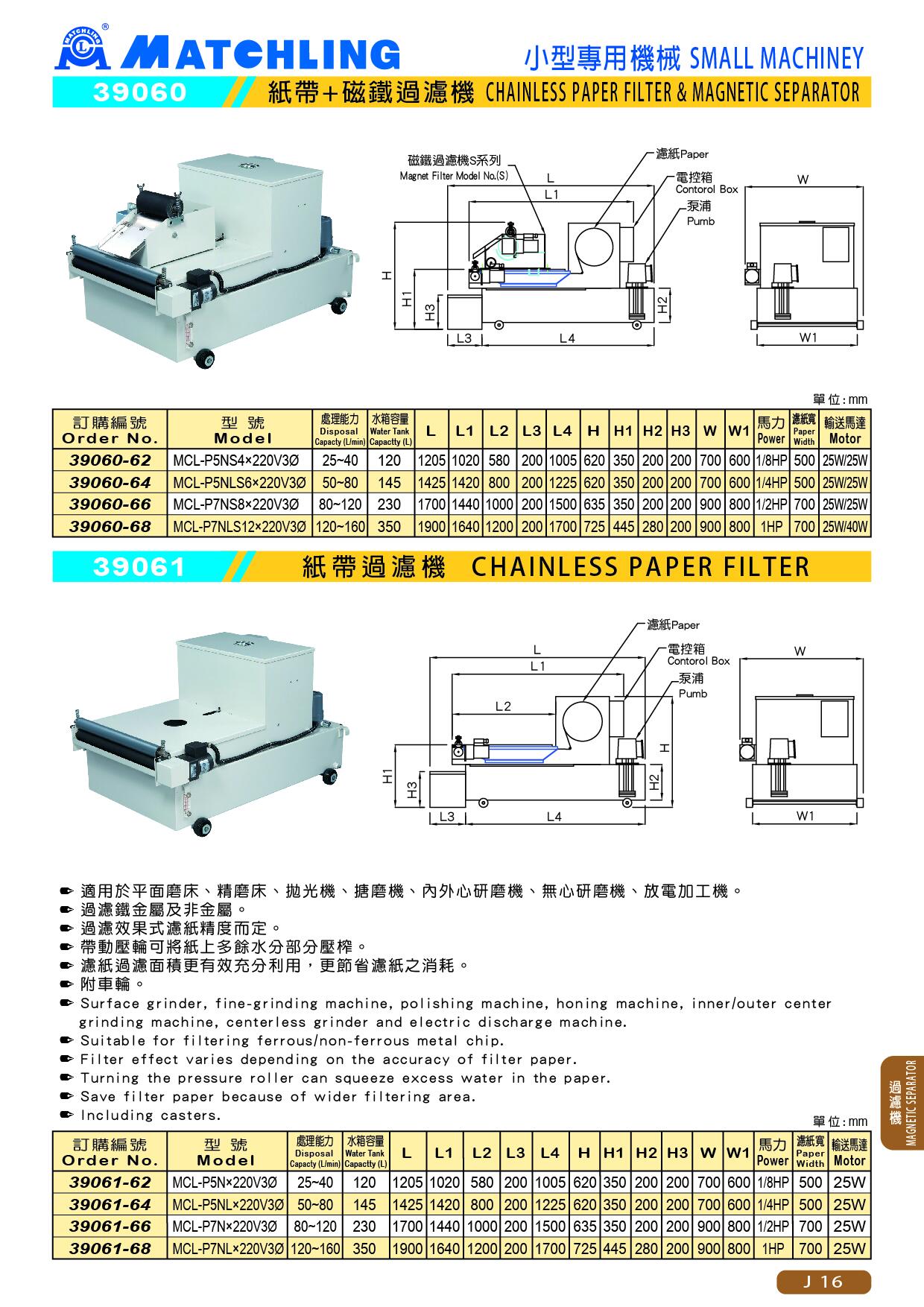

● Surface grinder, fine-grinding machine, polishing machine, honing machine, inner/outer center grinding machine, centerless grinder and electric discharge machine.
● Suitable for filtering ferrous/non-ferrous metal chip.
● Filter effect varies depending on the accuracy of filter paper.
● Turning the pressure roller can squeeze excess water in the paper.
● Save filter paper because of wider filtering area.
●Including casters.
unit:mm
| Order No. | Model | Disposal Capacty (L/min) | Water Tank Capacity (L) | L | L1 | L2 | L3 | L4 | H | H1 | H2 | H3 | W | W1 | Power | Paper Width idth | Motor |
| 39061-62 | MCL-P5Nx22OV30 | 25-40 | 120 | 1205 | 1020 | 580 | 200 | 1005 | 620 | 350 | 200 | 200 | 700 | 600 | 1/8HP | 500 | 25W |
| 39061-64 | MCL-P5NLx22OV30 | 50-80 | 145 | 1425 | 1420 | 800 | 200 | 1225 | 620 | 350 | 200 | 200 | 700 | 600 | 1/4HP | 500 | 25W |
| 39061-66 | MCL-P7Nx22OV30 | 80-120 | 230 | 1700 | 1440 | 1000 | 200 | 1500 | 635 | 350 | 200 | 200 | 900 | 800 | 1/2HP | 700 | 25W |
| 39061-68 | MCL-P7NLx22OV30 | 120*160 | 350 | 1900 | 1640 | 1200 | 200 | 1700 | 725 | 445 | 280 | 200 | 900 | 800 | 1HP | 700 | 25W |
