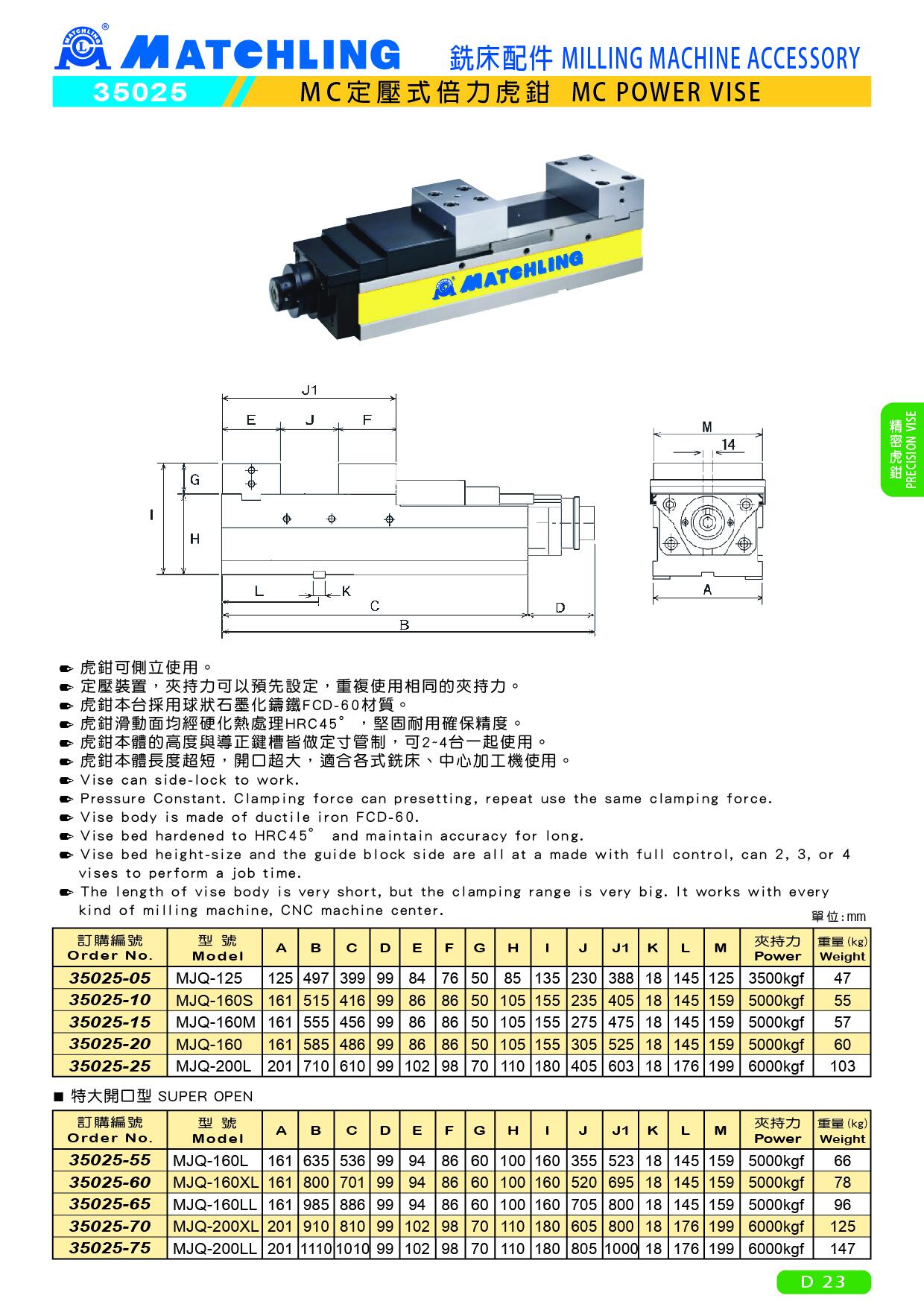

35025 MC POWER VISE


Vise can side-lock to work.
Pressure Constant. Clamping force can presetting, repeat use the same clamping force.
Vise body is made of ductile iron FCD-60.
Vise bed hardened to HRC45° and maintain accuracy for long.
Vise bed height-size and the guide block side are all at a made with full control, can 2, 3, or 4 vises to perform a job time.
The length of vise body is very short, but the clamping range is very big. It works with every kind of milling machine, CNC machine center.






unit:mm

Order NoModelABcDEFGH1JJ1KLMPowerWeight (kg)
35025-05MJQ-1251254973999984765085135230388181451253500kgf47
35025-10MJQ-160S16151541699868650105155235405181451595000kgf55
35025-15MJQ-160M16155545699868650105155275475181451595000kgf57
35025-20MJQ-16016158548699868650105155305525181451595000kgf60
35025-25MJQ-200L201710610991029870110180405603181761996000kgf103



■SUPER OPENunit:mm

Order NoModelABcDEFGH1JJ1 KLMPowerWeight (kg)
35025-55MJQ-160L16163553699948660100160355523181451595000kgf66
35025-60MJQ-160XL16180070199948660100160520695181451595000kgf78
35025-65MJQ-160LL16198588699948660100160705800181451595000kgf96
35025-70MJQ-200XL201910810991029870110180605800181761996000kgf125
35025-75MJQ-200LL201111010109910298701101808051000181761996000kgf147
