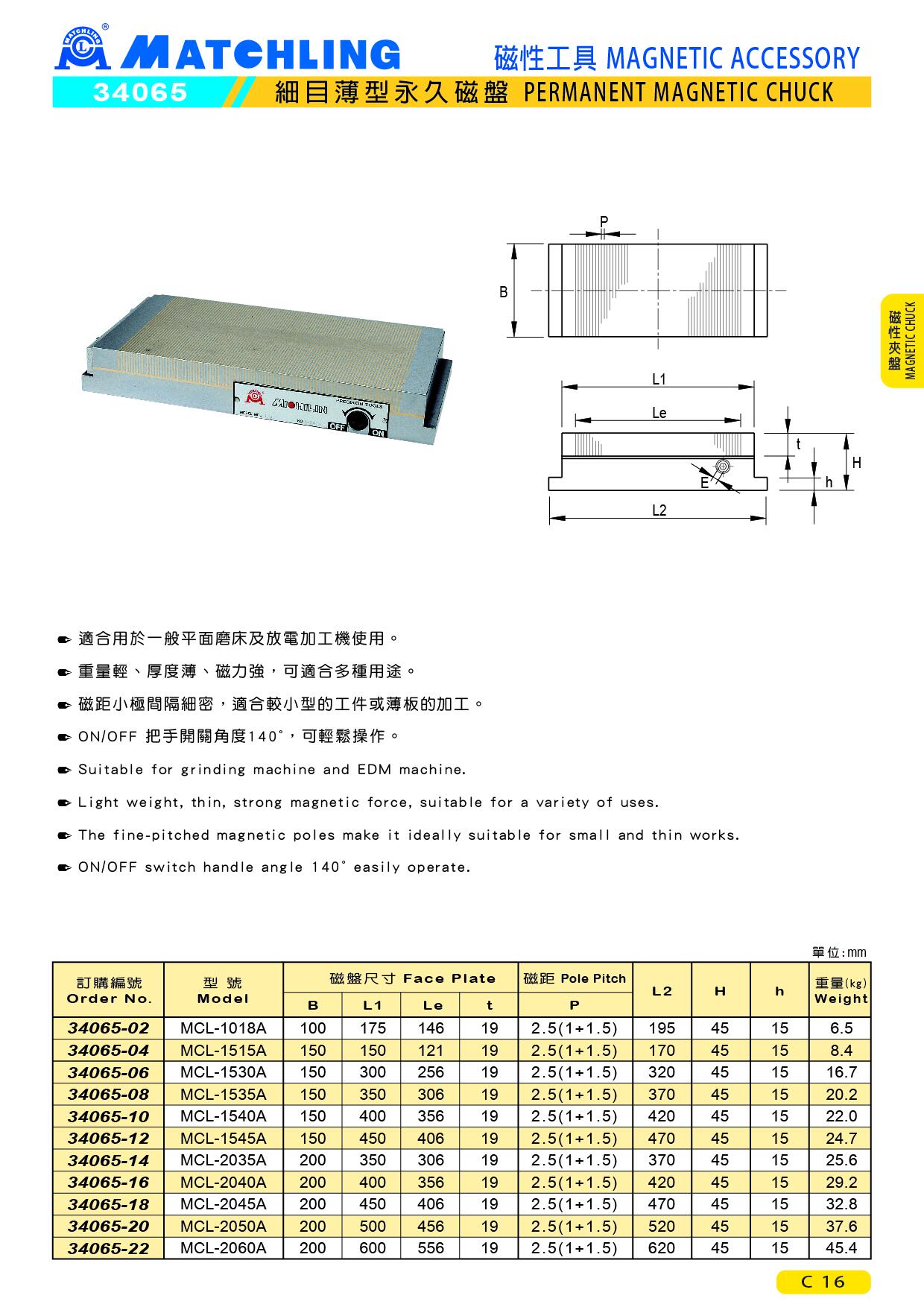

34065 PERMANENT MAGNETIC CHUCK
● Suitable for grinding machine and EDM machine.
● Light weight, thin, strong magnetic force, suitable for a variety of uses.
● The fine-pitched magnetic poles make it ideally suitable for small and thin works.
● ON/OFF switch handle angle 140° easily operate.
unit：mm
| Order No. | Model | Face Plate | Pole Pitch | L2 | H | h | Weight (kg） | |||
| B | L1 | Le | t | P | ||||||
| 34065-02 | MCL-1018A | 100 | 175 | 146 | 19 | 2.5(1 + 1.5) | 195 | 45 | 15 | 6.5 |
| 34065-04 | MCL-1515A | 150 | 150 | 121 | 19 | 2.5(1 + 1.5) | 170 | 45 | 15 | 8.4 |
| 34065-06 | MCL-1530A | 150 | 300 | 256 | 19 | 2.5(1 + 1.5) | 320 | 45 | 15 | 16.7 |
| 34065-08 | MCL-1535A | 150 | 350 | 306 | 19 | 2.5(1 + 1.5) | 370 | 45 | 15 | 20.2 |
| 34065-10 | MCL-1540A | 150 | 400 | 356 | 19 | 2.5(1 + 1.5) | 420 | 45 | 15 | 22.0 |
| 34065-12 | MCL-1545A | 150 | 450 | 406 | 19 | 2.5(1 + 1.5) | 470 | 45 | 15 | 24.7 |
| 34065-14 | MCL-2035A | 200 | 350 | 306 | 19 | 2.5(1 + 1.5) | 370 | 45 | 15 | 25.6 |
| 34065-16 | MCL-2040A | 200 | 400 | 356 | 19 | 2.5(1 + 1.5) | 420 | 45 | 15 | 29.2 |
| 34065-18 | MCL-2045A | 200 | 450 | 406 | 19 | 2.5(1 + 1.5) | 470 | 45 | 15 | 32.8 |
| 34065-20 | MCL-2050A | 200 | 500 | 456 | 19 | 2.5(1 + 1.5) | 520 | 45 | 15 | 37.6 |
| 34065-22 | MCL-2060A | 200 | 600 | 556 | 19 | 2.5(1 + 1.5) | 620 | 45 | 15 | 45.4 |
