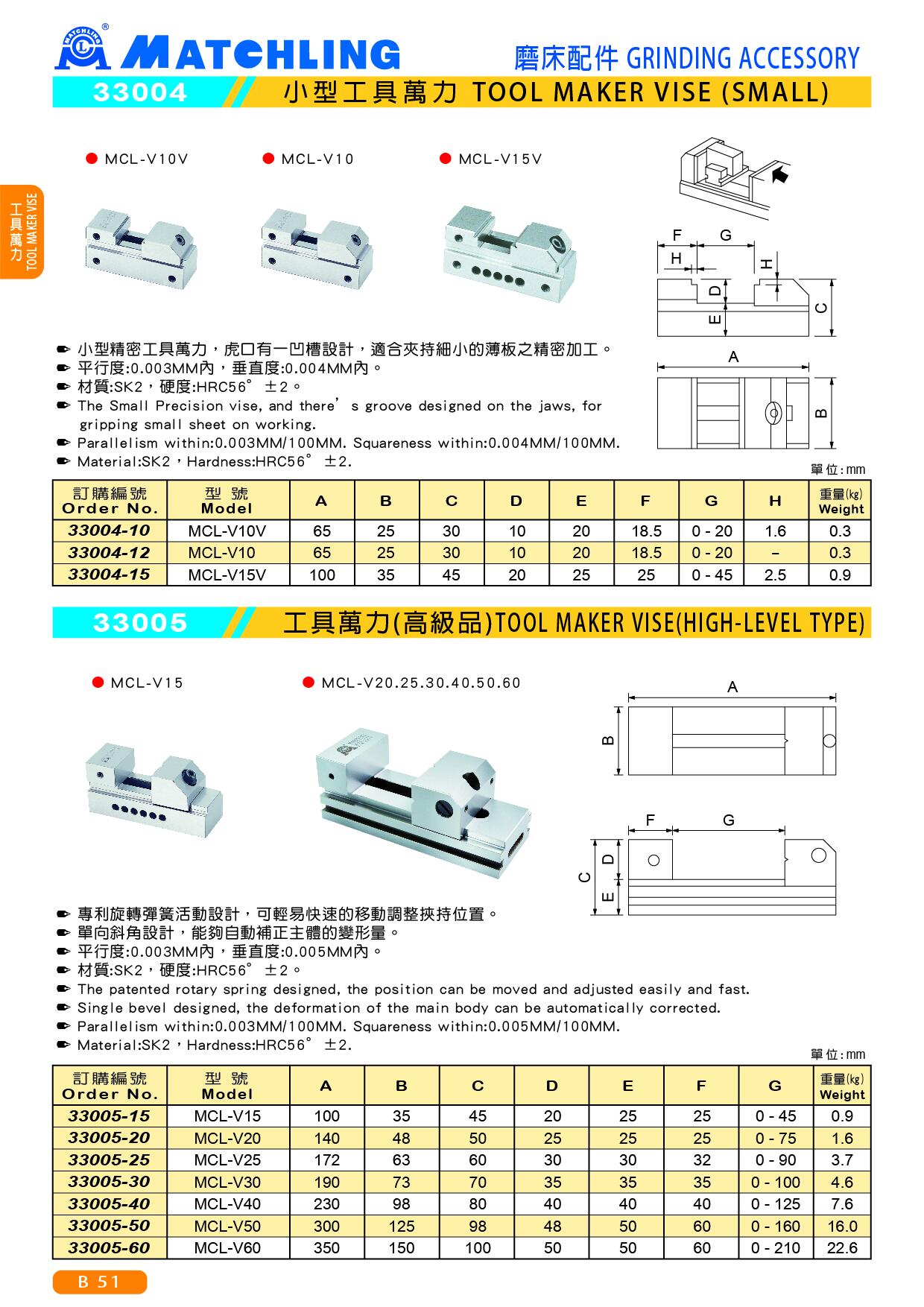

33005 TOOL MAKER VISE(HIGH-LEVEL TYPE)
● The rotary spring designed, the position can be moved and adjusted easily and fast.
● Single bevel designed, the deformation of the main body can be automatically corrected.
● Parallelism within:0.003MM/100MM. Squareness within:0.005MM/100MM.
● Material:SK2，Hardness:HRC56°±2.
unit：mm
| Order No | Model | A | B | C | D | E | F | G | Weight (kg) |
| 33005-15 | MCL-V15 | 100 | 35 | 45 | 20 | 25 | 25 | 0-45 | 0.9 |
| 33005-20 | MCL-V20 | 140 | 48 | 50 | 25 | 25 | 25 | 0-75 | 1.6 |
| 33005-25 | MCL-V25 | 172 | 63 | 60 | 30 | 30 | 32 | 0-90 | 3.7 |
| 33005-30 | MCL-V30 | 190 | 73 | 70 | 35 | 35 | 35 | 0-100 | 4.6 |
| 33005-40 | MCL-V40 | 230 | 98 | 80 | 40 | 40 | 40 | 0-125 | 7.6 |
| 33005-50 | MCL-V50 | 300 | 125 | 98 | 48 | 50 | 60 | 0-160 | 16.0 |
| 33005-60 | MCL-V60 | 350 | 150 | 100 | 50 | 50 | 60 | 0-210 | 22.6 |
