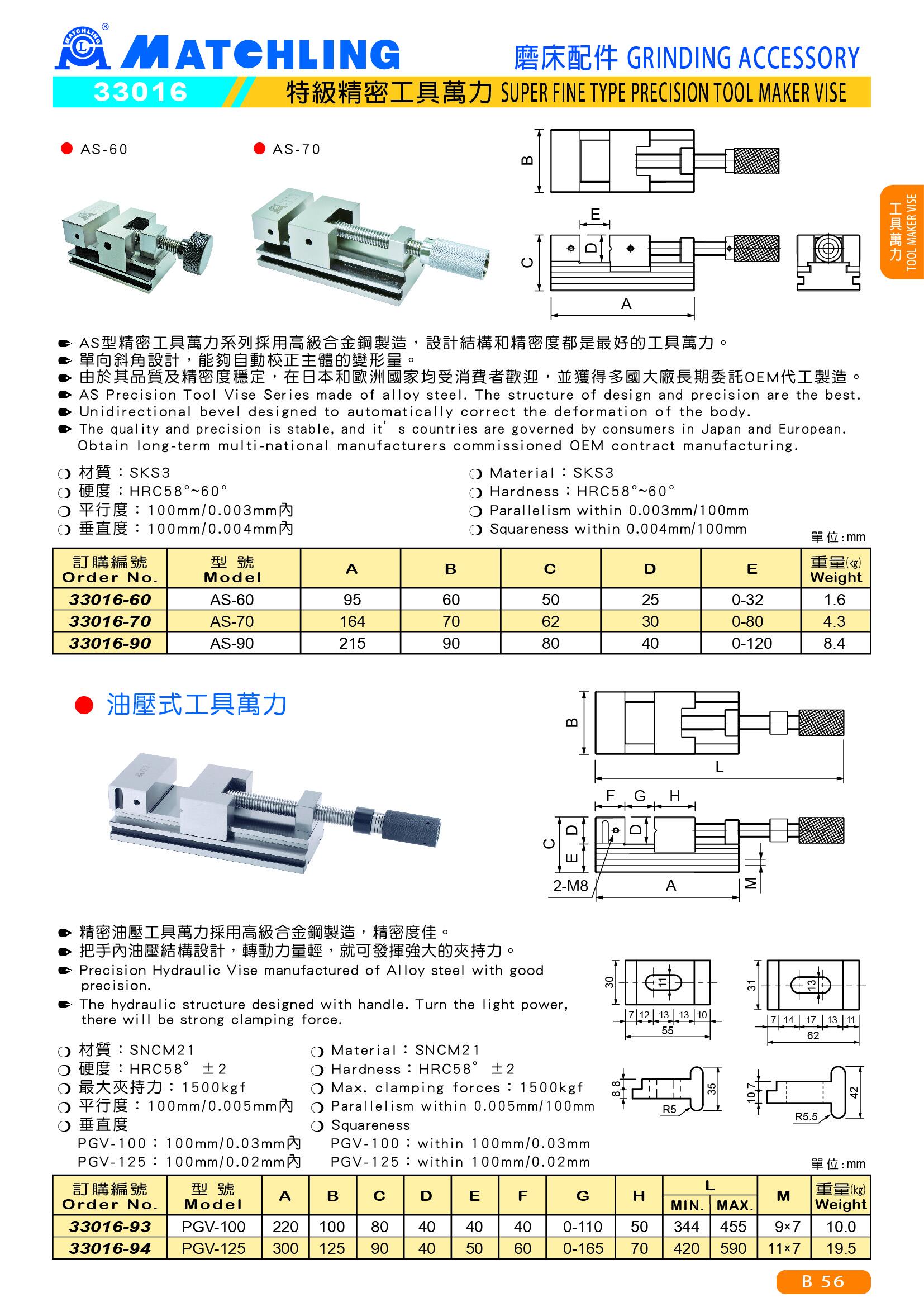

33016 SUPER FINE TYPE PRECISION TOOL MAKER VISE
● Precision Hydraulic Vise manufactured of Alloy steel with good precision.
● The hydraulic structure designed with handle. Turn the light power, there will be strong clamping force.
● The quality and precision is stable, and it’s countries are governed by consumers in Japan and European. Obtain long-term multi-national manufacturers commissioned OEM contract manufacturing.
■ Feature:
● Material：SNCM21
● Hardness：HRC56°~60°
● Max. clamping forces：1500kgf
● Parallelism within 0.005mm/100mm
● Squareness
PGV-100：within 100mm/0.03mm
PGV-125：within 100mm/0.02mm
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | L | M | Weight (kg) | |
| MIN. | MAX. | ||||||||||||
| 33016-93 | PGV-100 | 220 | 100 | 80 | 40 | 40 | 40 | 0-110 | 50 | 344 | 455 | 9x7 | 10.0 |
| 33016-94 | PGV-125 | 300 | 125 | 90 | 40 | 50 | 60 | 0-165 | 70 | 420 | 590 | 11x7 | 19.5 |
