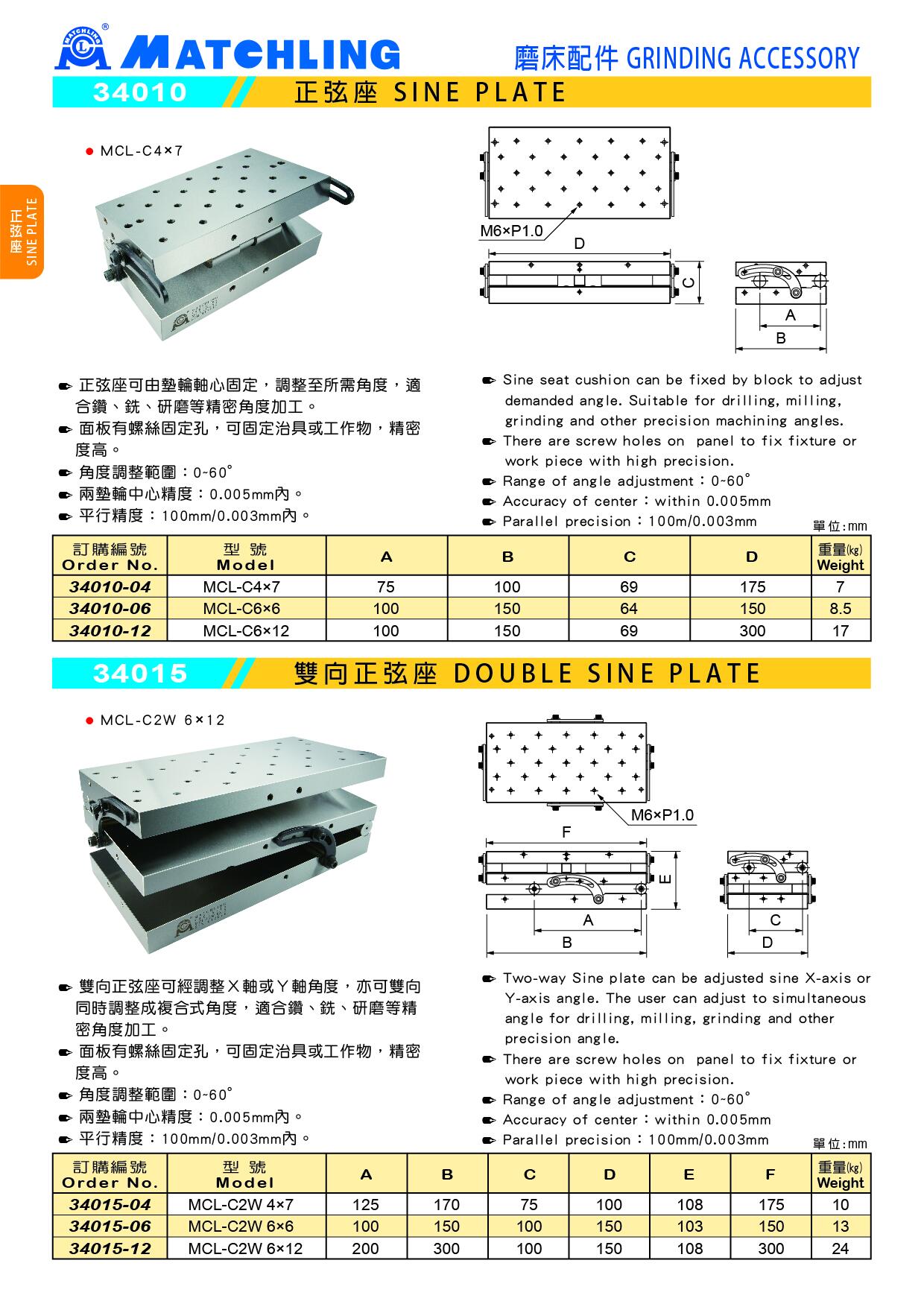

34015 DOUBLE SINE PLATE
● Two-way Sine plate can be adjusted sine X-axis or Y-axis angle. The user can adjust to simultaneous angle for drilling, milling, grinding and other precision angle.
● There are screw holes on panel to fix fixture or work piece with high precision.
● Range of angle adjustment：0~60°
● Accuracy of center：within 0.005mm
● Parallel precision：100mm/0.003mm
unit：mm
| Order No | Model | A | B | C | D | E | F | Weight (kg) |
| 34015-04 | MCL-C2W 4x7 | 125 | 170 | 75 | 100 | 108 | 175 | 10 |
| 34015-06 | MCL-C2W 6x6 | 100 | 150 | 100 | 150 | 103 | 150 | 13 |
| 34015-12 | MCL-C2W 6x12 | 200 | 300 | 100 | 150 | 108 | 300 | 24 |
