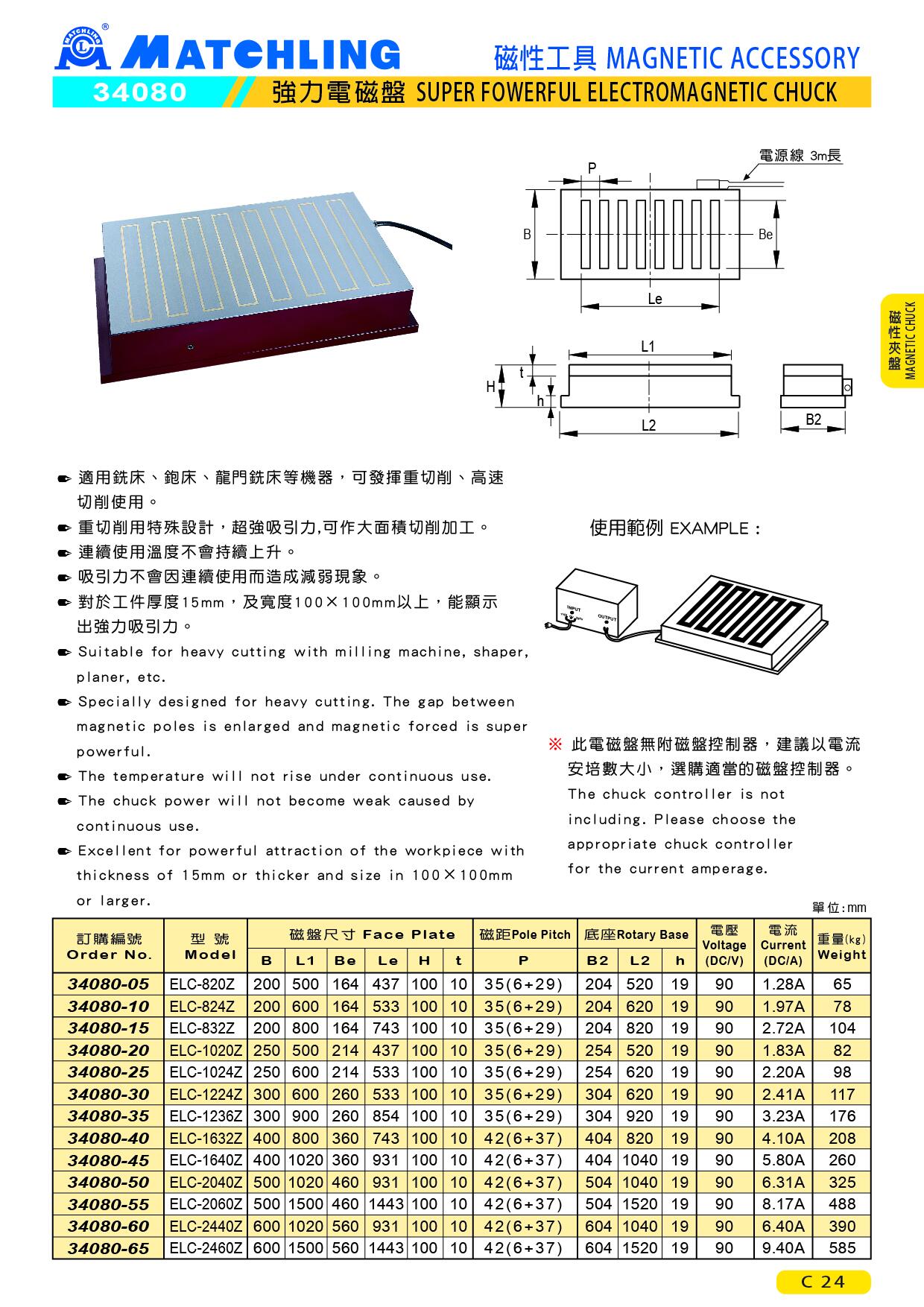

34080 Super Powerful Electromagnetic Chuck

Description
Specifications

● Suitable for heavy cutting with milling machine, shaper, planer, etc.
● Specially designed for heavy cutting. The gap between magnetic poles is enlarged and magnetic forced is super powerful.
● The temperature will not rise under continuous use.
● The chuck power will not become weak caused by continuous use.
● Excellent for powerful attraction of the workpiece with thickness of 15mm or thicker and size in 100×100mm or larger.

unit：mm

Order No.	Model	Face Plate						Pole Pitch	Rotary Base			Voltage (DC/V)	Current (DC/A)	Weight (kg)
Order No.	Model	B	L1	Be	Le	H	t	P	B2	L2	h	Voltage (DC/V)	Current (DC/A)	Weight (kg)
34080-05	ELC-820Z	200	500	164	437	100	10	35(6+29)	204	520	19	90	1.28A	65
34080-10	ELC-824Z	200	600	164	533	100	10	35(6+29)	204	620	19	90	1.97A	78
34080-15	ELC-832Z	200	800	164	743	100	10	35(6+29)	204	820	19	90	2.72A	104
34080-20	ELC-1020Z	250	500	214	437	100	10	35(6+29)	254	520	19	90	1.83A	82
34080-25	ELC-1024Z	250	600	214	533	100	10	35(6+29)	254	620	19	90	2.20A	98
34080-30	ELC-1224Z	300	600	260	533	100	10	35(6+29)	304	620	19	90	2.41A	117
34080-35	ELC-1236Z	300	900	260	854	100	10	35(6+29)	304	920	19	90	3.23A	176
34080-40	ELC-1632Z	400	800	360	743	100	10	42(6+37)	404	820	19	90	4.10A	208
34080-45	ELC-1640Z	400	1020	360	931	100	10	42(6+37)	404	1040	19	90	5.80A	260
34080-50	ELC-2040Z	500	1020	460	931	100	10	42(6+37)	504	1040	19	90	6.31A	325
34080-55	ELC-2060Z	500	1500	460	1443	100	10	42(6+37)	504	1520	19	90	8.17A	488
34080-60	ELC-2440Z	600	1020	560	931	100	10	42(6+37)	604	1040	19	90	6.40A	390
34080-65	ELC-2460Z	600	1500	560	1443	100	10	42(6+37)	604	1520	19	90	9.40A	585
