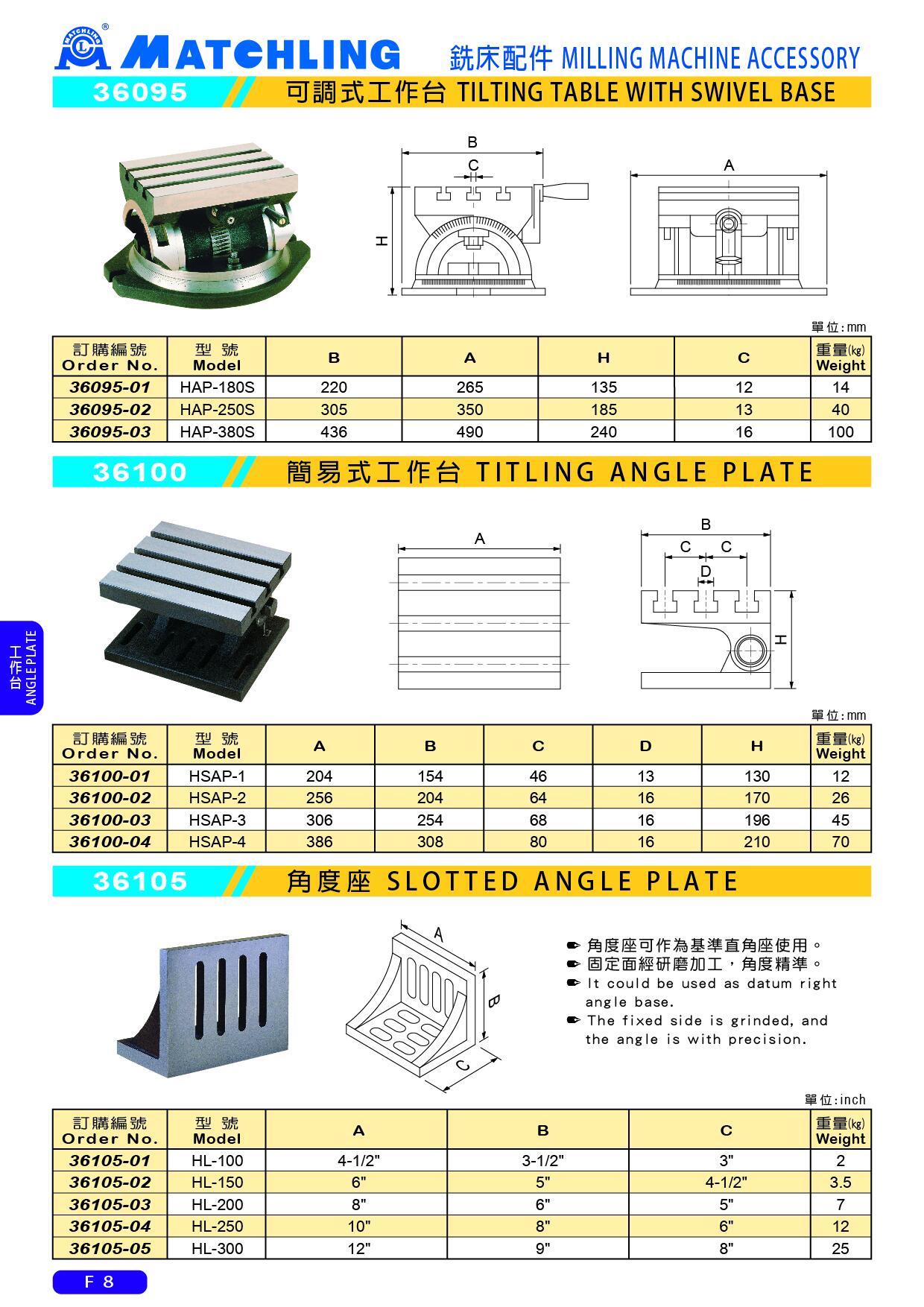

36100 TILTING ANGLE PLATE
unit：mm
| Order No. | Model | A | B | C | D | H | Weight (kg) |
| 36100-01 | HSAP-1 | 204 | 154 | 46 | 13 | 116 | 12 |
| 36100-02 | HSAP-2 | 256 | 204 | 64 | 16 | 170 | 26 |
| 36100-03 | HSAP-3 | 306 | 254 | 68 | 16 | 193 | 45 |
| 36100-04 | HSAP-4 | 386 | 308 | 80 | 16 | 210 | 78 |
