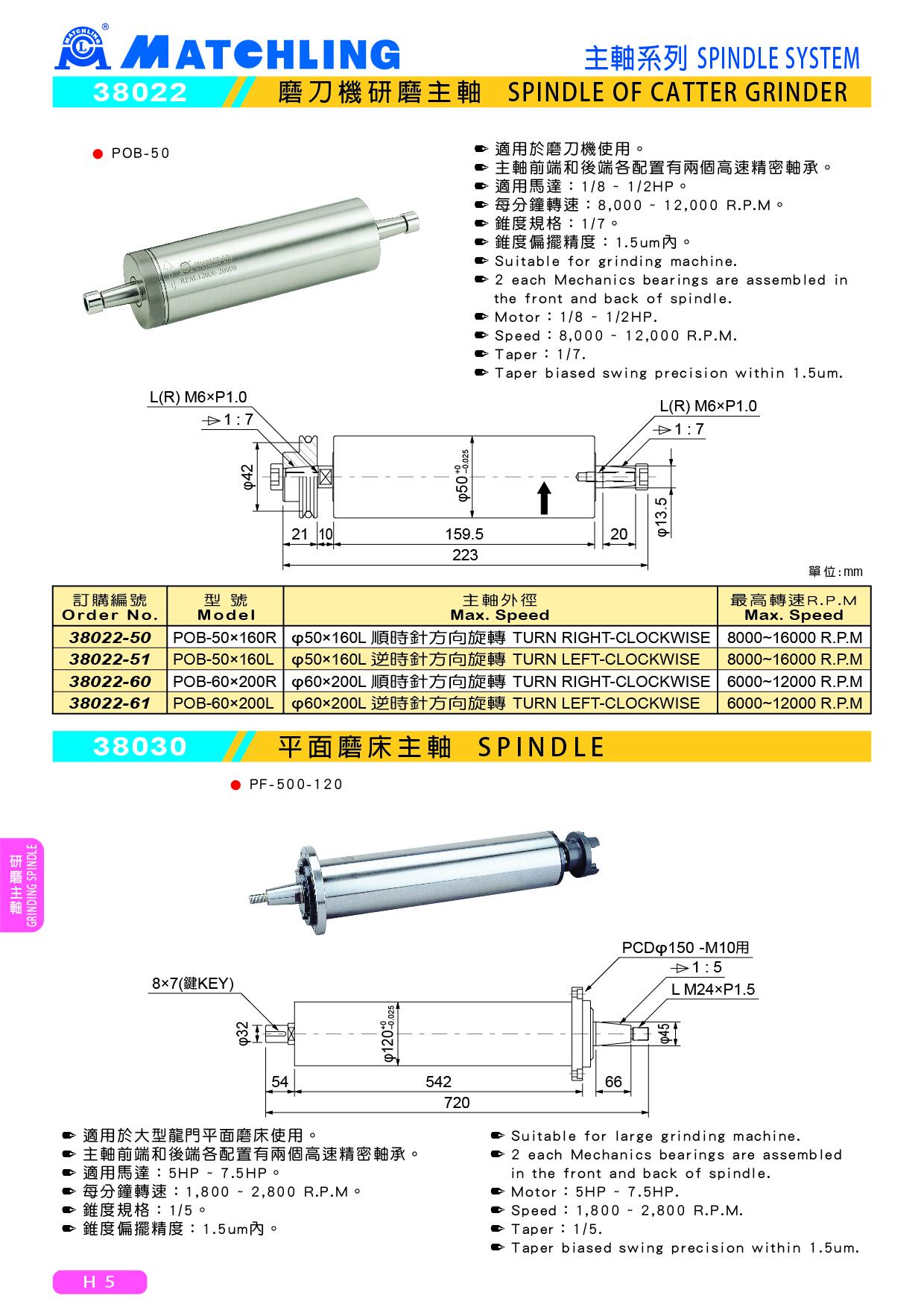

38022 SPINDLE OF CATTER GRINDER
● Suitable for grinding machine.
● 2 each Mechanics bearings are assembled in the front and back of spindle.
● Motor: 1/8 1/2HP.
● Speed: 8,000 12,000 R.P.M.
● Taper: 1/7.
● Taper biased swing precision within 1.5um.
unit：mm
| Order No. | Model | Max. Speed | Max・ Speed R.P.M |
| 38022-50 | POB-50x160R | φ50x160L TURN RIGHT-CLOCKWISE | 8000~16000 R.P.M |
| 38022-51 | POB-50x160L | φ50x160L TURN LEFT-CLOCKWISE | 8000~16000 R.P.M |
| 38022-60 | POB-60x200R | φ60x200L TURN RIGHT-CLOCKWISE | 6000~12000 R.P.M |
| 38022-61 | POB-60x200L | φ60x200L TURN LEFT-CLOCKWISE | 6000~12000 R.P.M |
