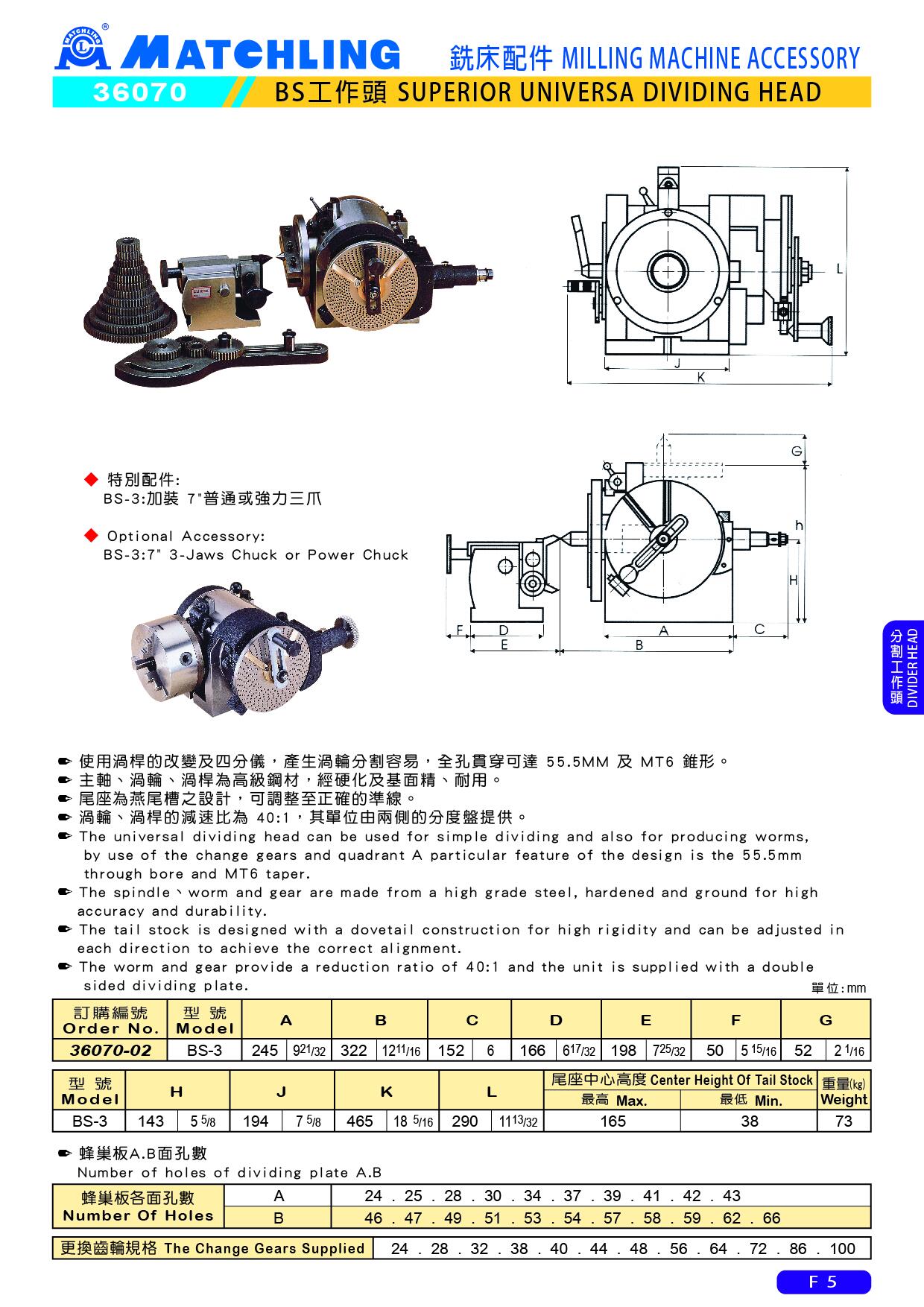

36070 SUPERIOR UNIVERSAL DIVIDING HEAD
● The universal dividing head can be used for simple dividing and also for producing worms, by use of the change gears and quadrant A particular feature of the design is the 55.5mm through bore and MT6 taper.
● The spindle、worm and gear are made from a high grade steel, hardened and ground for high accuracy and durability.
● The tail stock is designed with a dovetail construction for high rigidity and can be adjusted in each direction to achieve the correct alignment.
● The worm and gear provide a reduction ratio of 40:1 and the unit is supplied with a double sided dividing plate.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | |||||||
| 36070-02 | BS-3 | 245 | 921/32 | 322 | 1211/16 | 152 | 6 | 166 | 617/32 | 198 | 725/32 | 50 | 515/16 | 52 | 21/16 |
unit：mm
| Model | H | h | J | K | L | Center Height Of Tail Stock | Weight (kg) | ||||||
| Max. | Min. | ||||||||||||
| BS-3 | 143 | 55/8 | 265 | 194 | 75/8 | 465 | 185/16 | 290 | 1113/32 | 165 | 38 | 132 | |
•Number of holes of dividing plate A.B
| Number Of Holes | A | 24.25.28.30.34.37.39.41.42.43 |
| B | 46.47.49.51.53.54.57.58.59.62.66 |
| The Change Gears Supplied | 24 . 28 . 32 . 38 . 40 . 44 . 48 . 56 . 64 . 72 . 86 . 100 |
