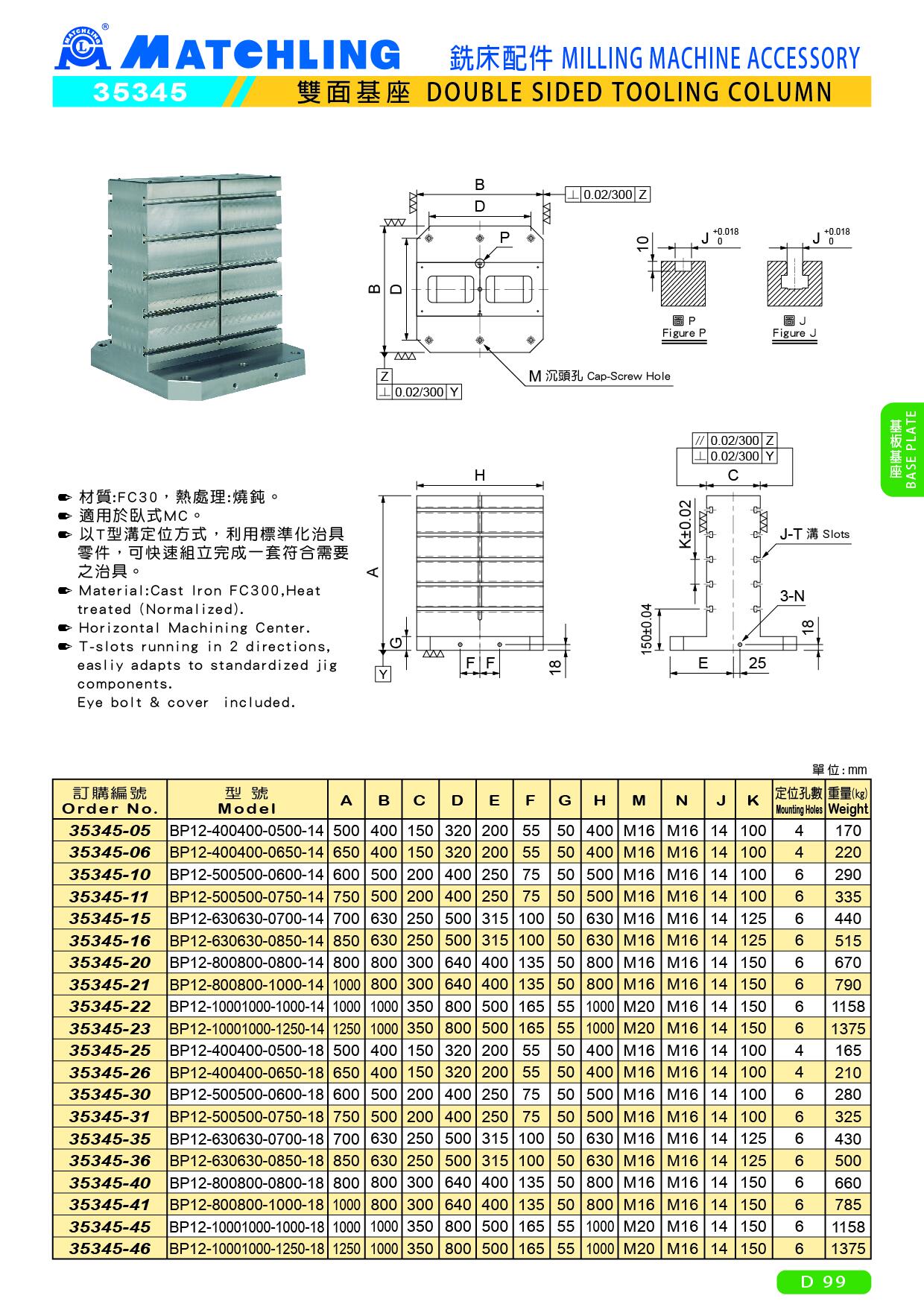

35345 DOUBLE SIDED TOOLING COLUMN
● Material:Cast Iron FC300,Heat treated (Normalized).
● Horizontal Machining Center.
● T-slots running in 2 directions,easliy adapts to standardized jig components. Eye bolt & cover included.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | M | N | J | K | Mounting Holes | Weight (kg) |
| 35345-05 | BP12-400400-0500-14 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 14 | 100 | 4 | 170 |
| 35345-06 | BP12-400400-0650-14 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 14 | 100 | 4 | 220 |
| 35345-10 | BP12-500500-0600-14 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 14 | 100 | 6 | 290 |
| 35345-11 | BP12-500500-0750-14 | 750 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 14 | 100 | 6 | 335 |
| 35345-15 | BP12-630630-0700-14 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 14 | 125 | 6 | 440 |
| 35345-16 | BP12-630630-0850-14 | 850 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 14 | 125 | 6 | 515 |
| 35345-20 | BP12-800800-0800-14 | 800 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 14 | 150 | 6 | 670 |
| 35345-21 | BP12-800800-1000-14 | 1000 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 14 | 150 | 6 | 790 |
| 35345-22 | BP12-10001000-1000-14 | 1000 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | M20 | M16 | 14 | 150 | 6 | 1158 |
| 35345-23 | BP12-10001000-1250-14 | 1250 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | M20 | M16 | 14 | 150 | 6 | 1375 |
| 35345-25 | BP12-400400-0500-18 | 500 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 14 | 100 | 4 | 165 |
| 35345-26 | BP12-400400-0650-18 | 650 | 400 | 150 | 320 | 200 | 55 | 50 | 400 | M16 | M16 | 14 | 100 | 4 | 210 |
| 35345-30 | BP12-500500-0600-18 | 600 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 14 | 100 | 6 | 280 |
| 35345-31 | BP12-500500-0750-18 | 750 | 500 | 200 | 400 | 250 | 75 | 50 | 500 | M16 | M16 | 14 | 100 | 6 | 325 |
| 35345-35 | BP12-630630-0700-18 | 700 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 14 | 125 | 6 | 430 |
| 35345-36 | BP12-630630-0850-18 | 850 | 630 | 250 | 500 | 315 | 100 | 50 | 630 | M16 | M16 | 14 | 125 | 6 | 500 |
| 35345-40 | BP12-800800-0800-18 | 800 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 14 | 150 | 6 | 660 |
| 35345-41 | BP12-800800-1000-18 | 1000 | 800 | 300 | 640 | 400 | 135 | 50 | 800 | M16 | M16 | 14 | 150 | 6 | 785 |
| 35345-45 | BP12-10001000-1000-18 | 1000 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | M20 | M16 | 14 | 150 | 6 | 1158 |
| 35345-46 | BP12-10001000-1250-18 | 1250 | 1000 | 350 | 800 | 500 | 165 | 55 | 1000 | M20 | M16 | 14 | 150 | 6 | 1375 |
