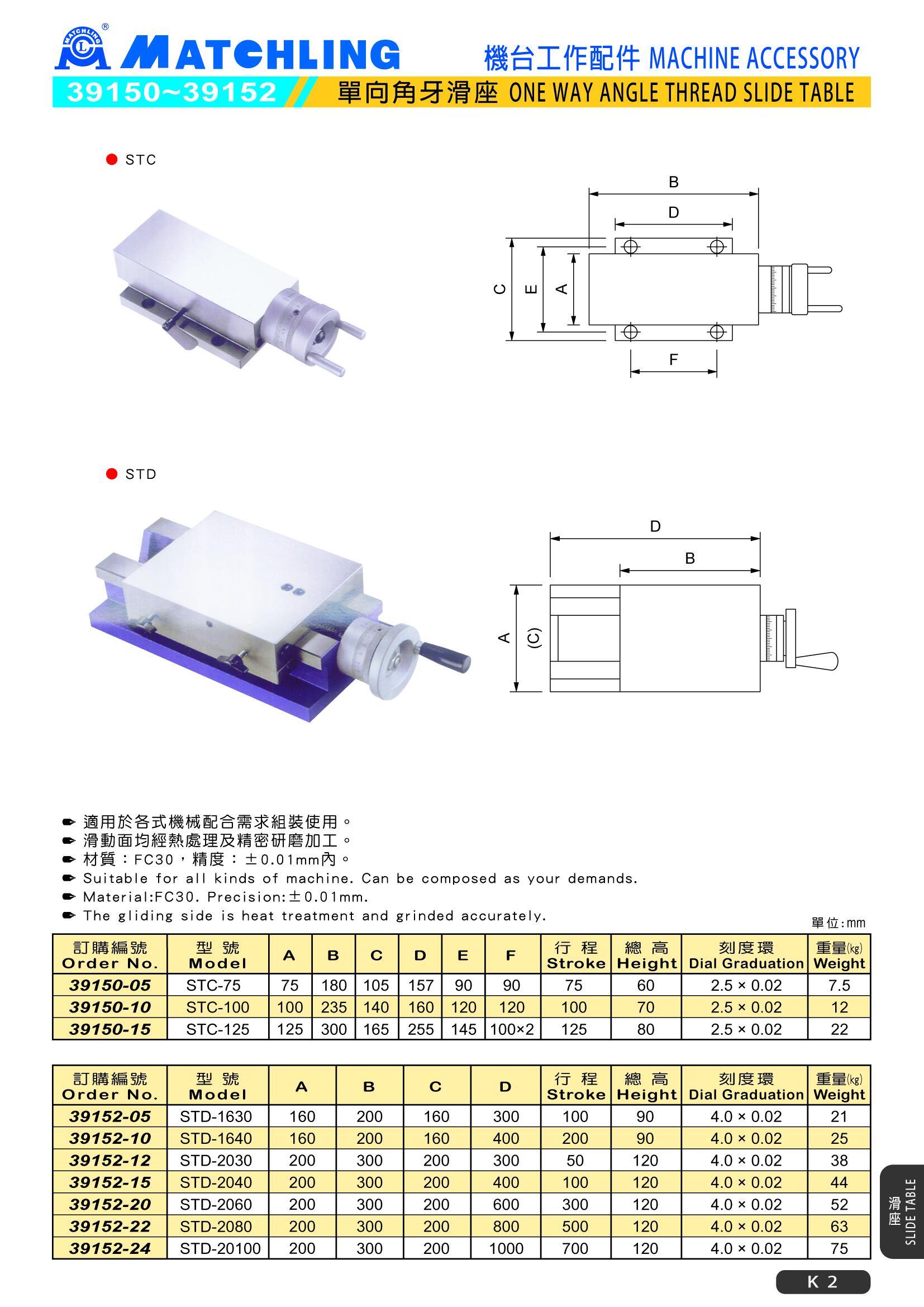

39150 ONE WAY ANGLE THREAD SLIDE TABLE
● Suitable for all kinds of machine. Can be composed as your demands.
● Material:FC30. Precision:±0.01mm.
● The gliding side is heat treatment and grinded accurately.
unit：mm
| Order No. | Model | A | B | C | D | E | F | Storke | Height | Dial Graduation | Weitht (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 39150-05 | STC-75 | 75 | 180 | 105 | 157 | 90 | 90 | 75 | 60 | 2.5*0.02 | 7 |
| 39150-10 | STC-100 | 100 | 235 | 140 | 160 | 120 | 120 | 100 | 70 | 2.5*0.02 | 11 |
| 39150-15 | STC-125 | 120 | 300 | 165 | 255 | 145 | 100*2 | 125 | 80 | 4*0.02 | 21 |
