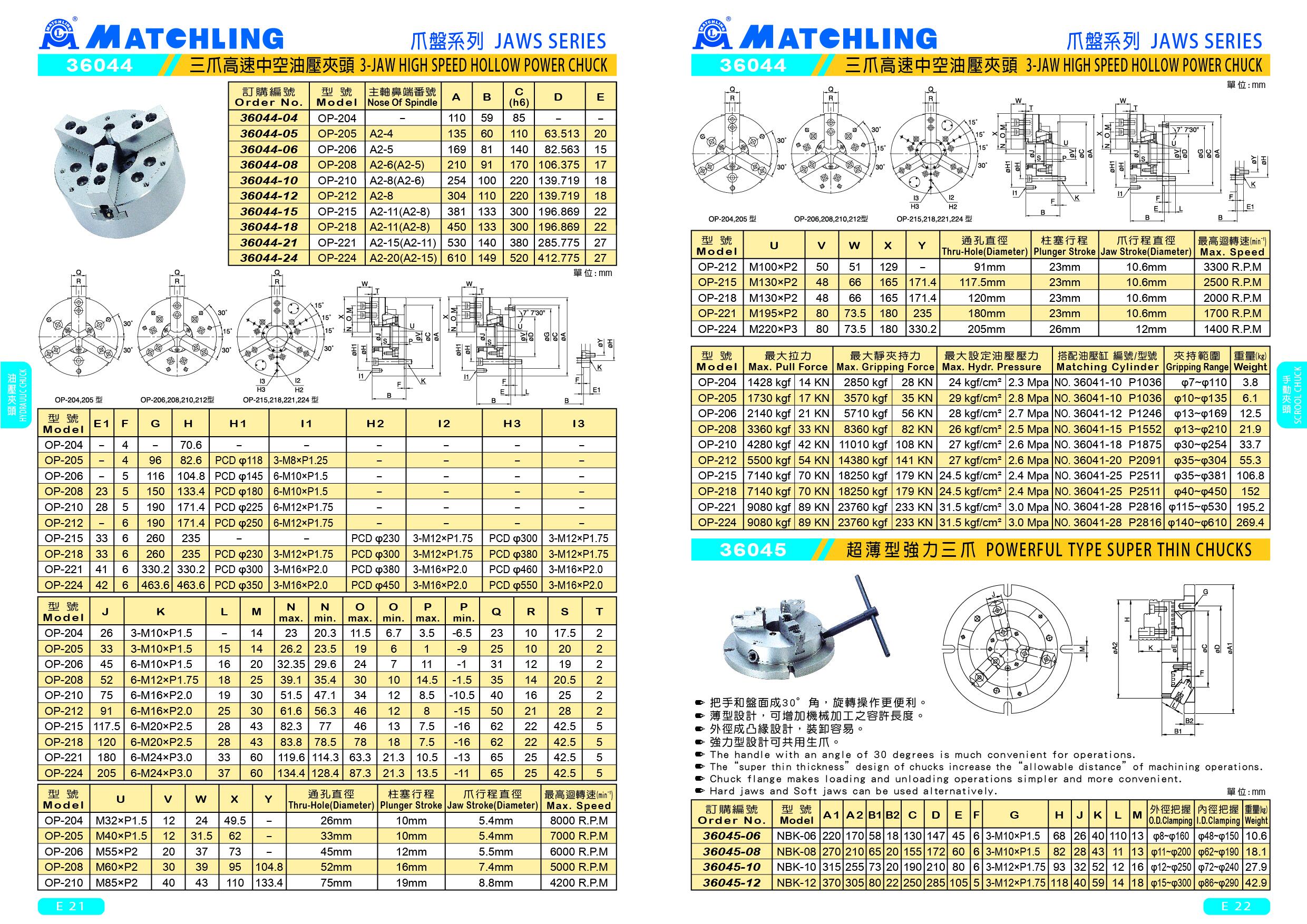

36044 3-JAW HIGH SPEED HOLLOW POWER CHUCK OP-204 / OP-205 / OP-206 / OP-208 / OP-210 / OP-212 / OP-215 / OP-218 / OP-221 / OP-224

36044 3-JAW HIGH SPEED HOLLOW POWER CHUCK OP-204 / OP-205 / OP-206 / OP-208 / OP-210 / OP-212 / OP-215 / OP-218 / OP-221 / OP-224

36044 3-JAW HIGH SPEED HOLLOW POWER CHUCK

Specifications

unit：mm

Order No.	Model	Nose Of Spindle	A	B	C (h6)	D	E
36044-04	OP-204	-	110	59	85	-	-
36044-05	OP-205	A2-4	135	60	110	63.513	20
36044-06	OP-206	A2-5	169	81	140	82.563	15
36044-08	OP-208	A2-6(A2-5)	210	91	170	106.375	17
36044-10	OP-210	A2-8(A2-6)	254	100	220	139.719	18
36044-42	OP-212	A2-8	304	110	220	139.719	18
36044-45	OP-215	A2-11(A2-8)	381	133	300	196.869	22
36044-48	OP-218	A2-11(A2-8)	450	133	300	196.869	22
36044-21	OP-221	A2-15(A2-11)	530	140	380	285.775	27
36044-24	OP-224	A2-20(A2-15)	610	149	520	412.775	27

Model	E1	F	G	H	H1	11	H2	I2	H3	I3
OP-204	-	4	-	70.6	-	-	-	-	-	-
OP-205	-	4	96	82.6	PCDφ118	3-M8xP1.25	-	-	-	-
OP-206	-	5	116	104.8	PCDφ145	6-M10xP1.5	-	-	-	-
OP-208	23	5	150	133.4	PCDφ180	6-M10xP1.5	-	-	-	-
OP-210	28	5	190	171.4	PCDφ225	6-M12xP1.75	-	-	-	-
OP-212	-	6	190	171.4	PCDφ250	6-M12xP1.75	-	-	-	-
OP-215	33	6	260	235	-	-	PCDφ230	3-M12xP1.75	PCDφ300	3-M12xP1.75
OP-218	33	6	260	235	PCDφ230	3-M12xP1.75	PCDφ300	3-M12*P1.75	PCDφ380	3-M12xP1.75
OP-221	41	6	330.2	330.2	PCDφ300	3-M16xP2.0	PCDφ380	3-M16xP2.0	PCDφ460	3-M16xP2.0
OP-224	42	6	463.6	463.6	PCDφ350	3-M16xP2.0	PCDφ450	3-M16xP2.0	PCDφ550	3-M16xP2.0

Model	J	K	L	M	N max.	N min.	O max.	O min.	P max.	P min.	Q	R	S	T
OP-204	26	3-M10xP1.5	-	14	23	20.3	11.5	6.7	3.5	-6.5	23	10	17.5	2
OP-205	33	3-M10«P1.5	15	14	26.2	23.5	19	6	1	-9	25	10	20	2
OP-206	45	6-M10*P1.5	16	20	32.35	29.6	24	7	11	-1	31	12	19	2
OP-208	52	6-M12xP1.75	18	25	39.1	35.4	30	10	14.5	-1.5	35	14	20.5	2
OP-210	75	6-M16«P2.0	19	30	51.5	47.1	34	12	8.5	-10.5	40	16	25	2
OP-212	91	6-M16xP2.0	25	30	61.6	56.3	46	12	8	-15	50	21	28	2
OP-215	117.5	6-M20xP2.5	28	43	82.3	77	46	13	7.5	-16	62	22	42.5	5
OP-218	120	6-M20xP2.5	28	43	83.8	78.5	78	18	7.5	-16	62	22	42.5	5
OP-221	180	6-M24xP3.0	33	60	119.6	114.3	63.3	21.3	10.5	-13	65	25	42.5	5
OP-224	205	6-M24xP3.0	37	60	134.4	128.4	87.3	21.3	13.5	-11	65	25	42.5	5

Model	U	V	W	X	Y	Thru-Hole (Diameter)	Plunger Stroke	Jaw Stroke (Diameter)	Max. Speed (min^-1)
OP-204	M32xP1.5	12	24	49.5	-	26mm	10mm	5.4mm	8000 R.P.M
OP-205	M40xP1.5	12	31.5	62	-	33mm	10mm	5.4mm	7000 R.P.M
OP-206	M55xP2	20	37	73	-	45mm	12mm	5.5mm	6000 R.P.M
OP-208	M60xP2	30	39	95	104.8	52mm	16mm	7.4mm	5000 R.P.M
OP-210	M85xP2	40	43	110	133.4	75mm	19mm	8.8mm	4200 R.P.M
OP-212	M100xP2	50	51	129	-	91mm	23mm	10.6mm	3300 R.P.M
OP-215	M130xP2	48	66	165	171.4	117.5mm	23mm	10.6mm	2500 R.P.M
OP-218	M130xP2	48	66	165	171.4	120mm	23mm	10.6mm	2000 R.P.M
OP-221	M195xP2	80	73.5	180	235	180mm	23mm	10.6mm	1700 R.P.M
OP-224	M220xP3	80	73.5	180	330.2	205mm	26mm	12mm	1400 R.P.M

Model	Max. Pull Force		Max.Gripping Force		Max. Hydr. Pressure		Matching Cylinder	Gripping Range	Weight (kg)
OP-204	1428 kgf	14 KN	2850 kgf	28 KN	24 kgf/cm²	2.3 Mpa	NO. 36041-10 P1036	φ7~φ110	3.8
OP-205	1730 kgf	17 KN	3570 kgf	35 KN	29 kgf/cm²	2.8 Mpa	NO. 36041-10 P1036	φ10-φ135	6.1
OP-206	2140 kgf	21 KN	5710 kgf	56 KN	28 kgf/cm²	2.7 Mpa	NO. 36041-12 P1246	φ13~φ169	12.5
OP-208	3360 kgf	33 KN	8360 kgf	82 KN	26 kgf/cm²	2.5 Mpa	NO. 36041-15 P1552	φ13~φ210	21.9
OP-210	4280 kgf	42 KN	11010 kgf	108 KN	27 kgf/cm²	2.6 Mpa	NO. 36041-18 P1875	φ30~φ254	33.7
OP-212	5500 kgf	54 KN	14380 kgf	141 KN	27 kgf/cm²	2.6 Mpa	NO. 36041-20 P2091	φ35~φ304	55.3
OP-215	7140 kgf	70 KN	18250 kgf	179 KN	24.5 kgf/cm²	2.4 Mpa	NO. 36041-25 P2511	φ35~φ381	106.8
OP-218	7140 kgf	70 KN	18250 kgf	179 KN	24.5 kgf/cm²	2.4 Mpa	NO. 36041-25 P2511	φ40~φ450	152
OP-221	9080 kgf	89 KN	23760 kgf	233 KN	31.5 kgf/cm²	3.0 Mpa	NO. 36041-28 P2816	φ115~φ530	195.2
OP-224	9080 kgf	89 KN	23760 kgf	233 KN	31.5 kgf/cm²	3.0 Mpa	NO. 36041-28 P2816	φ140~φ610	269.4
