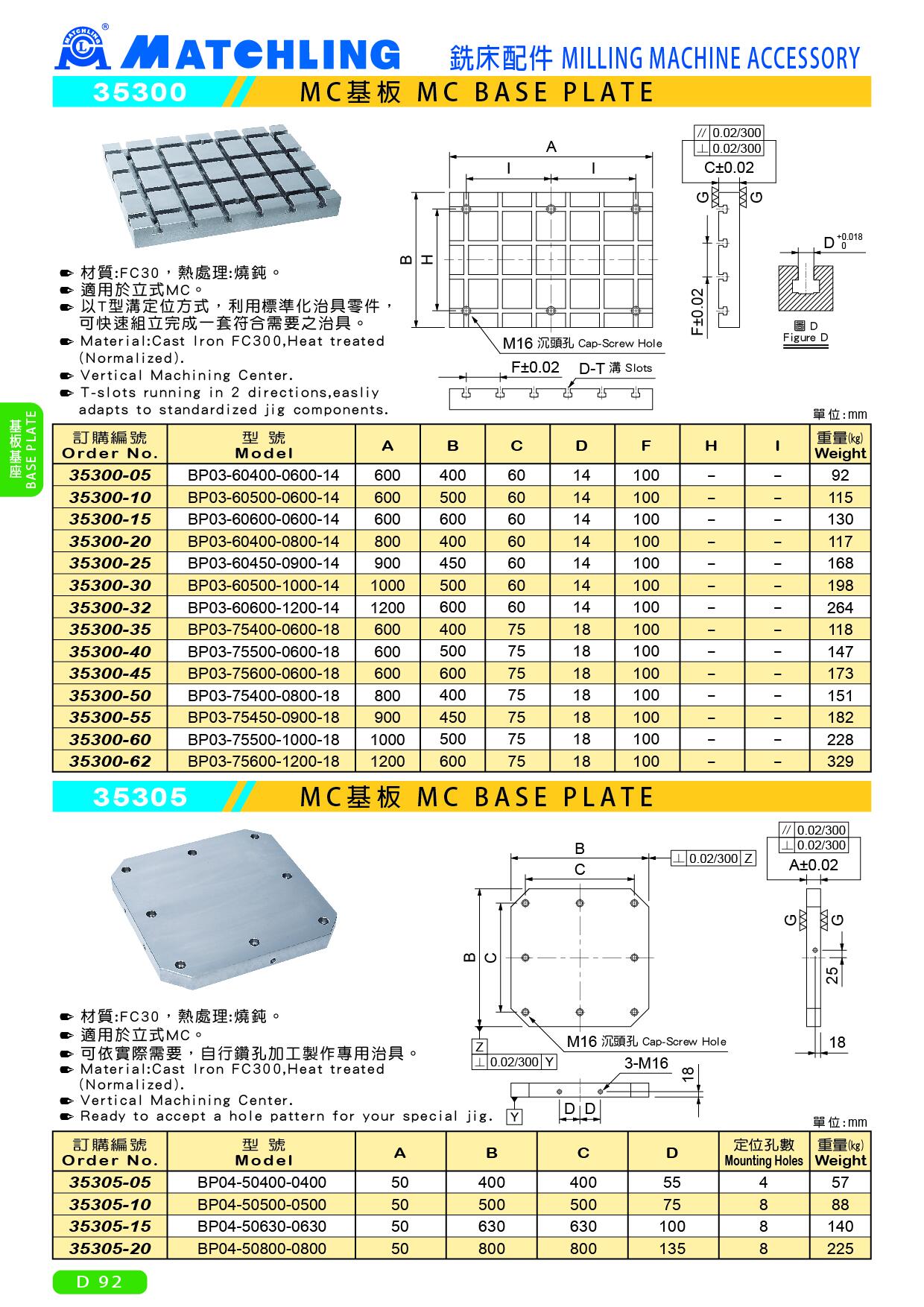

35305 MC BASE PLATE
● Material:Cast Iron FC300,Heat treated(Normalized).
● Horizontal Machining Center.
● Ready to accept a hole pattern for your special jig.
unit：mm
| Order No. | Model | A | B | C | D | Mounting Holes | Weight (kg) |
| 35305-05 | BP04-50400-0400 | 50 | 400 | 400 | 55 | 4 | 57 |
| 35305-10 | BP04-50500-0500 | 50 | 500 | 500 | 75 | 8 | 88 |
| 35305-15 | BP04-50630-0630 | 50 | 630 | 630 | 100 | 8 | 140 |
| 35305-20 | BP04-50800-0800 | 50 | 800 | 800 | 135 | 8 | 225 |
