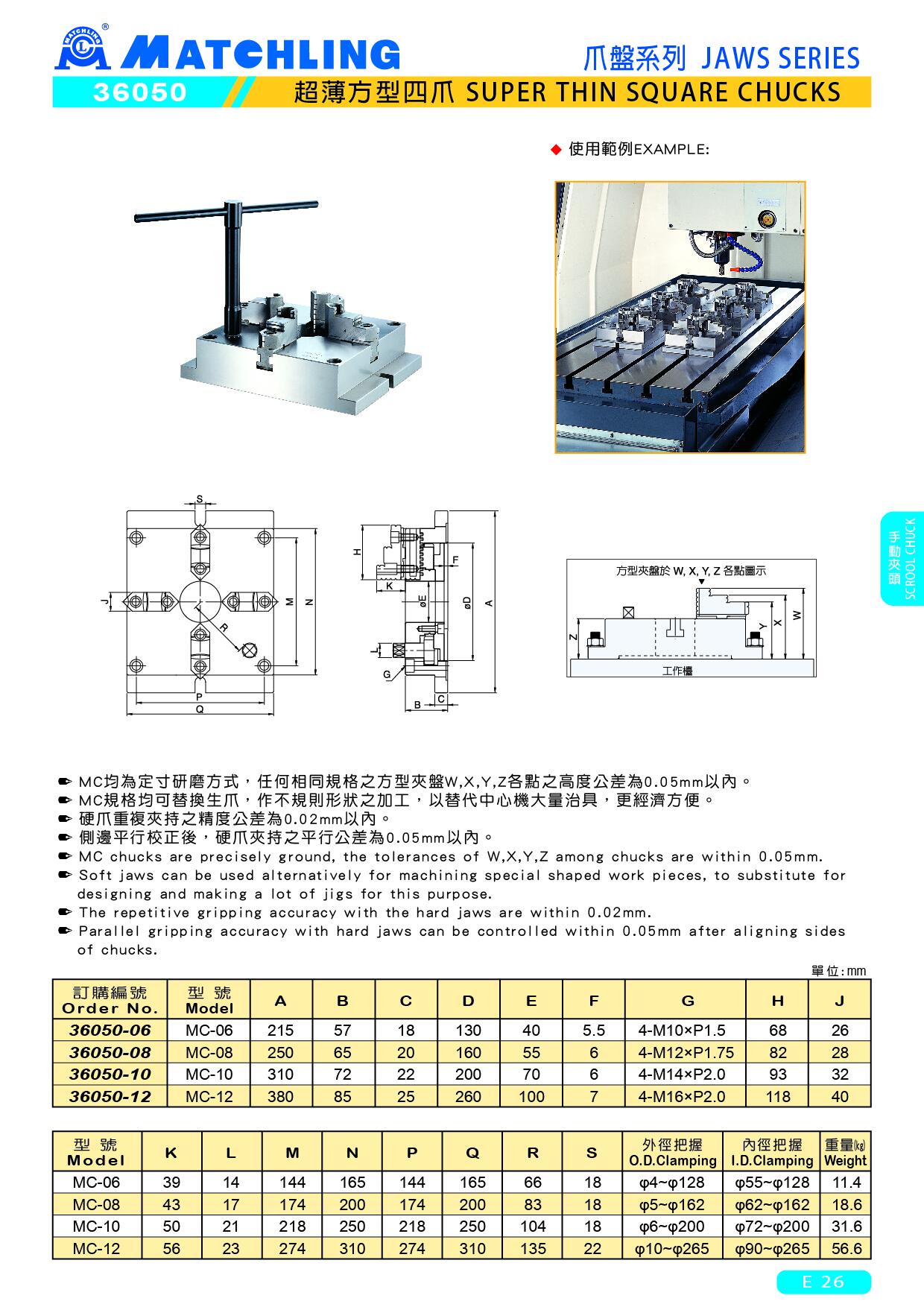

36050 SUPER THIN SQUARE CHUCKS
● MC chucks are precisely ground, the tolerances of W,X,Y,Z among chucks are within 0.05mm.
● Soft jaws can be used alternatively for machining special shaped work pieces, to substitute for designing and making a lot of jigs for this purpose.
● The repetitive gripping accuracy with the hard jaws are within 0.02mm.
● Parallel gripping accuracy with hard jaws can be controlled within 0.05mm after aligning sides of chucks.
unit：mm
| Order No. | Model | A | B | C | D | E | F | G | H | J | ||||||
| 36050-06 | MC-06 | 215 | 57 | 18 | 130 | 40 | 5.5 | 4-M10xP1.5 | 68 | 26 | ||||||
| 36050-08 | MC-08 | 250 | 65 | 20 | 160 | 55 | 6 | 4-M12xP1.75 | 82 | 28 | ||||||
| 36050-10 | MC-10 | 310 | 72 | 22 | 200 | 70 | 6 | 4-M14xP2.0 | 93 | 32 | ||||||
| 36050-12 | MC-12 | 380 | 85 | 25 | 260 | 100 | 7 | 4-M16xP2.0 | 118 | 40 | ||||||
| Model | K | L | M | N | P | Q | R | S | O.D.CIamping | I.D.CIamping | Weight (kg) | |||||
| MC-06 | 39 | 14 | 144 | 165 | 144 | 165 | 66 | 18 | φ4~φ128 | φ55~φ128 | 11.4 | |||||
| MC-08 | 43 | 17 | 174 | 200 | 174 | 200 | 83 | 18 | φ5-φ162 | φ62-φ162 | 18.6 | |||||
| MC-10 | 50 | 21 | 218 | 250 | 218 | 250 | 104 | 18 | φ6~φ200 | φ72~φ200 | 31.6 | |||||
| MC-12 | 56 | 23 | 274 | 310 | 274 | 310 | 135 | 22 | φ10~φ265 | φ90~φ265 | 56.6 | |||||
